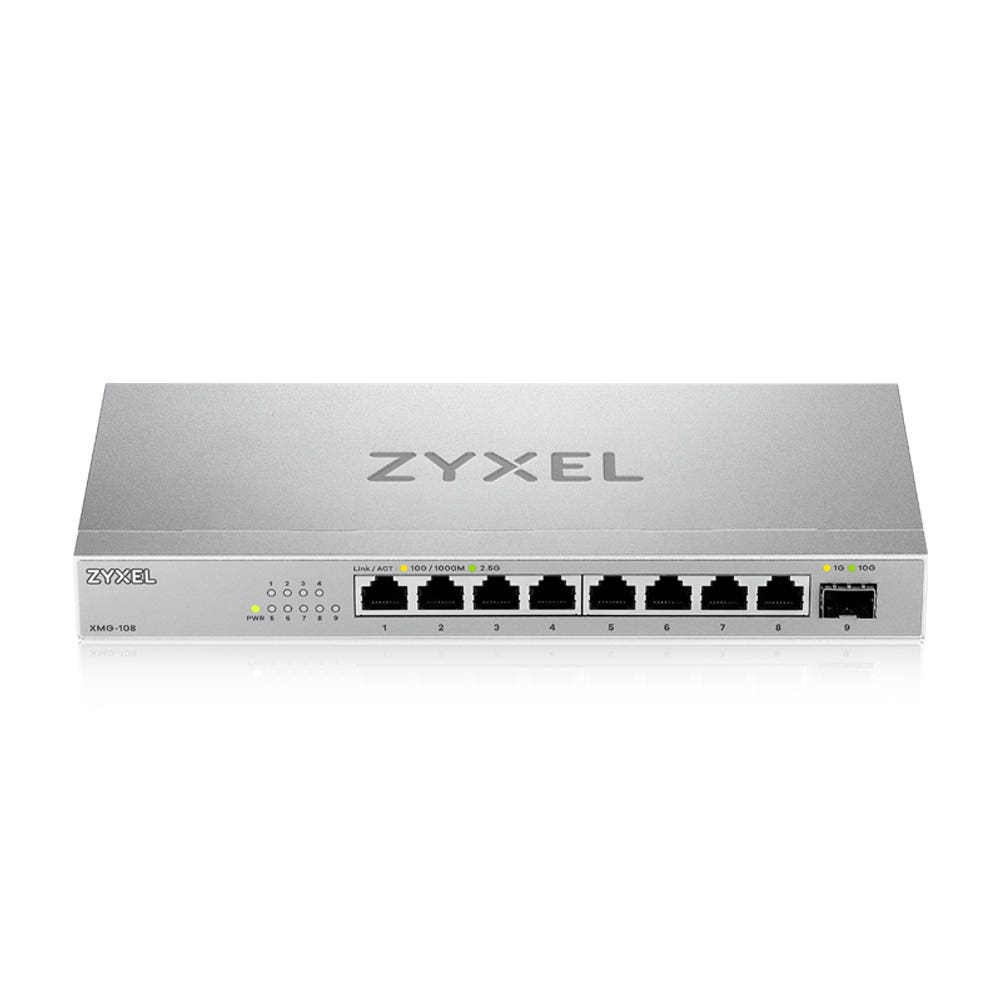

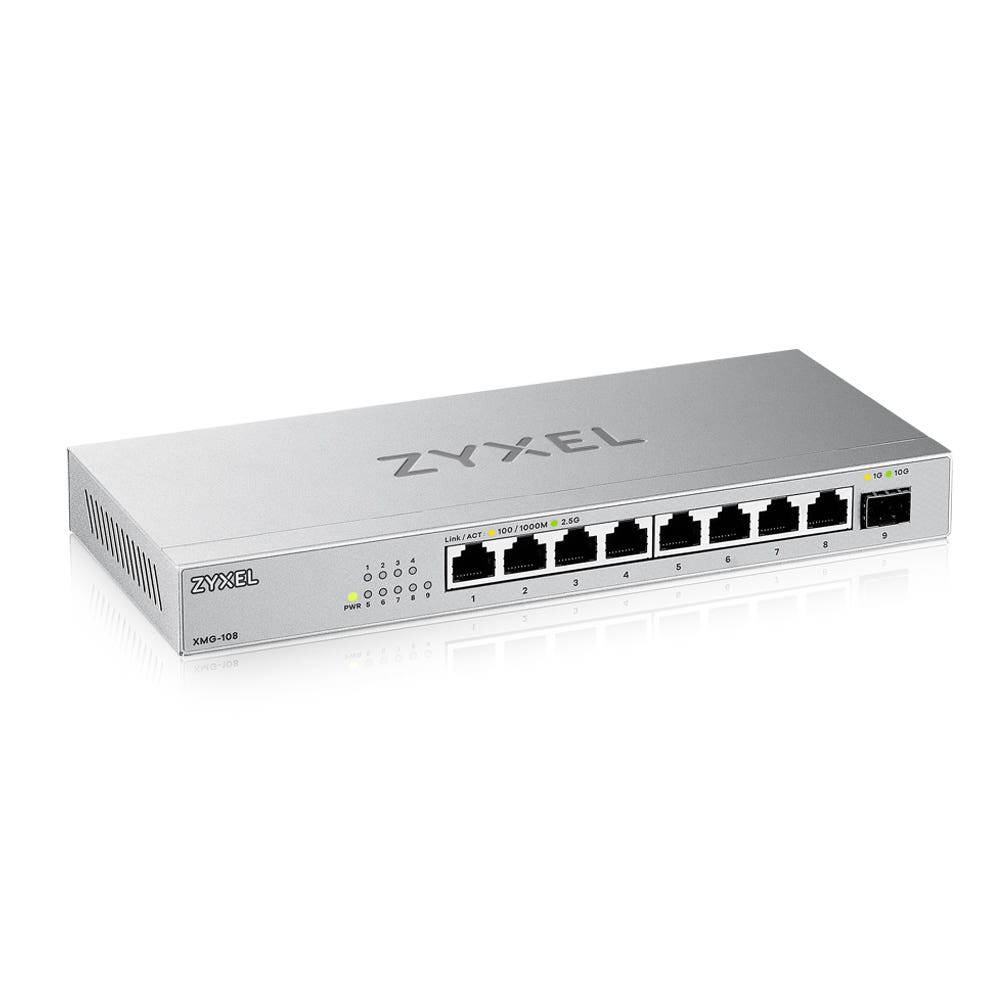

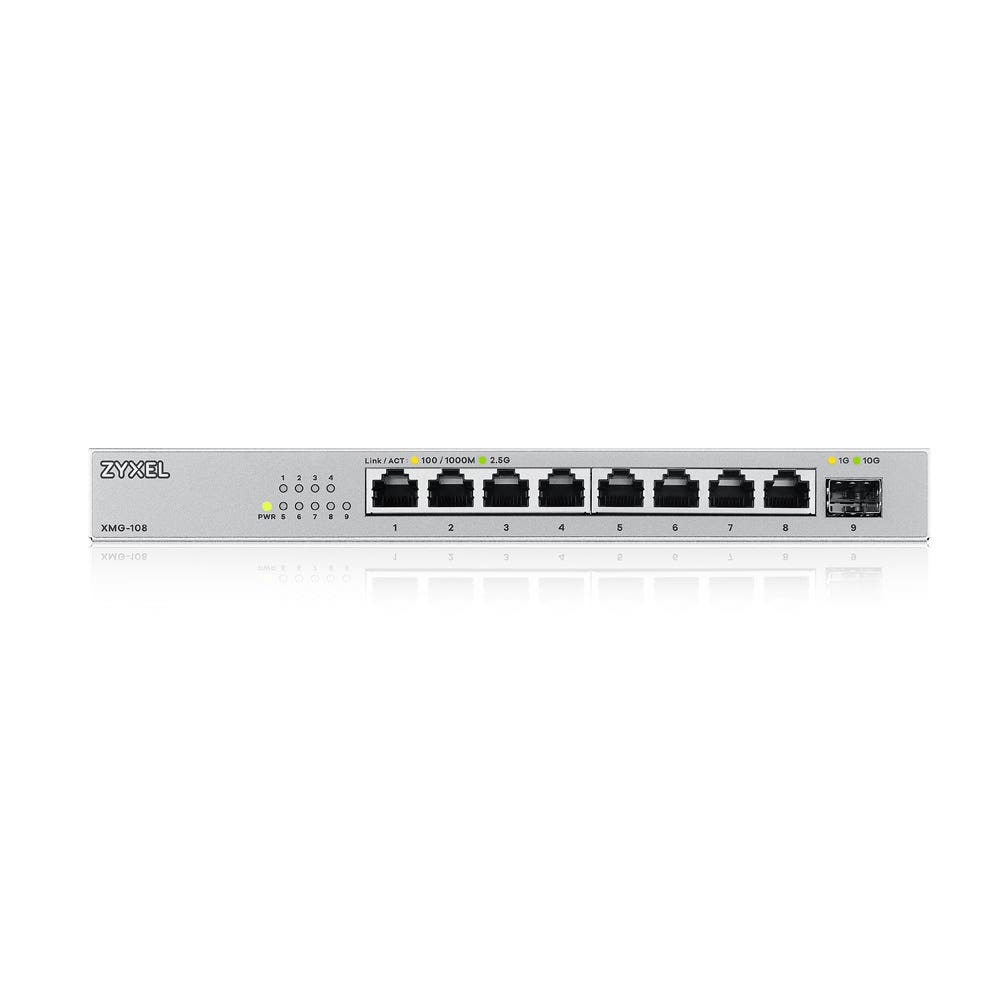

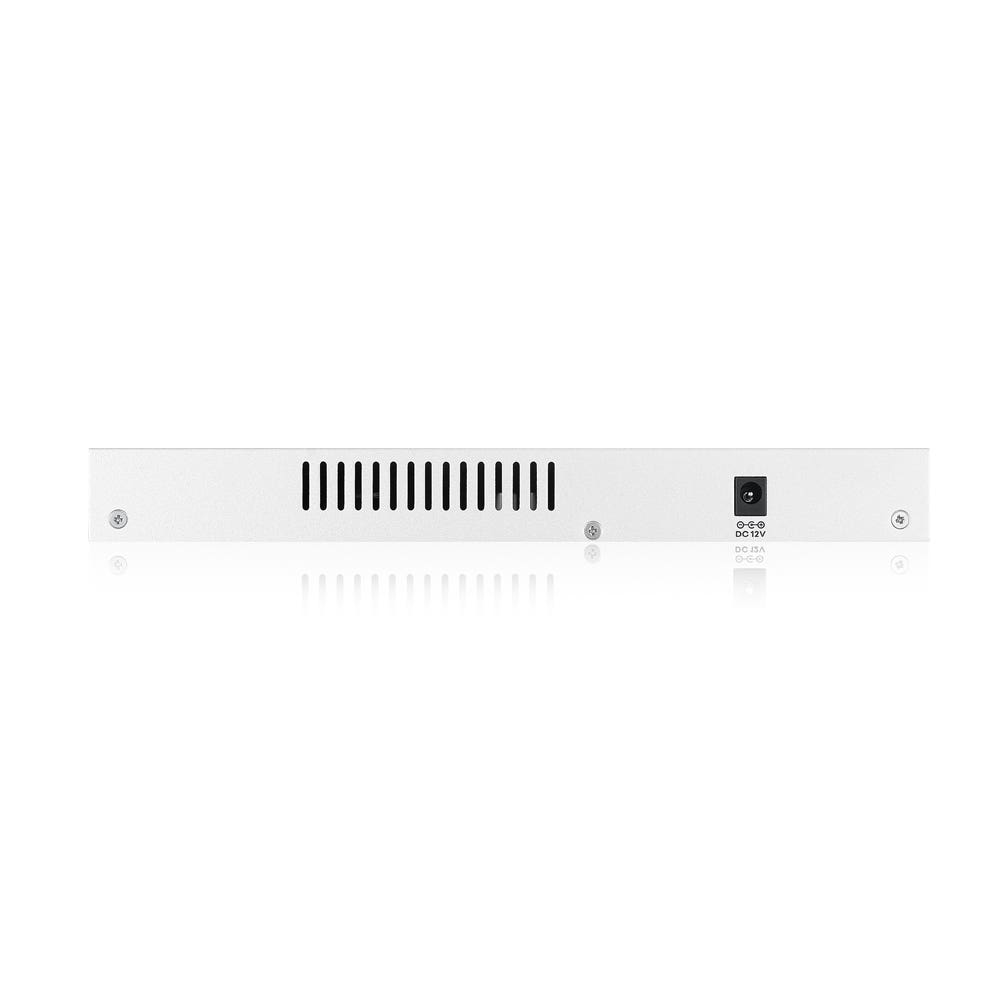

XMG-108 Unmanaged
2.5G Ethernet (100/1000/2500) Silver
Model XMG-108Part no. XMG-108-ZZ0101FEAN 4718937631131
36 specifications
- Weight662 g
- ColourSilver
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
- MAC address table4000 entries
Overview
- Weight
- 662 g
- Colour
- Silver
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- MAC address table
- 4000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XMG-108
- Part number
- XMG-108-ZZ0101F
- EAN / UPC
- 4718937631131
- Also known as
- Zyxel XMG-108 Unmanaged 2.5G Ethernet (100/1000/2500) Silver
Specifications
36 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 60 Gbit/s |
| Forwarding rate | 44.6 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| LED indicators | Link, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1647776 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 9.12 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 33.61 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 105 mm |
| Height | 27 mm |
| Weight | 662 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EAC, FCC, BSMI Class B |
