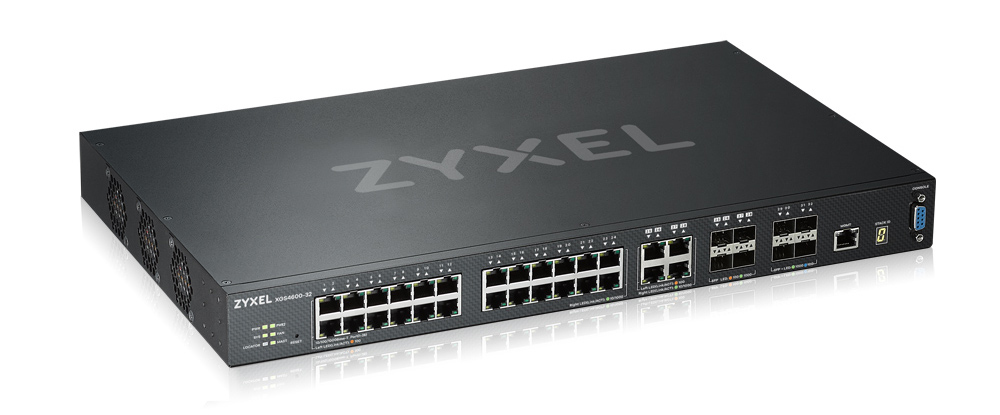

XGS4600-32 Managed L3 Gigabit Ethernet (10/100/1000) Black
Model XGS4600-32Part no. XGS4600-32-ZZ0102FEAN 760559123567
57 specifications
- Memory1000 MB
- Noise59.8 dB
- Weight3.96 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 1000 MB
- Noise
- 59.8 dB
- Weight
- 3.96 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XGS4600-32
- Part numbers
- XGS4600-32-ZZ0102F, XGS4600-32
- EAN / UPC
- 760559123567, 4718937590513
- Also known as
- Zyxel XGS4600-32 Managed L3 Gigabit Ethernet (10/100/1000) Black
Specifications
57 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| IP routing | Yes |
| Routing entries | 12000 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 136 Gbit/s |
| Throughput | 101.1 Mpps |
| Number of IP interfaces | 256 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Security algorithms | SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Safety | ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
| Flash memory | 64 MB |
| Noise level | 59.8 dB |
| Mean time between failures (MTBF) | 860610.82 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 47 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 160.27 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.96 kg |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 616 mm |
| Package depth | 335 mm |
| Package height | 107 mm |
| Package weight | 5.69 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 (Class A) CE EMC (Class A) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
