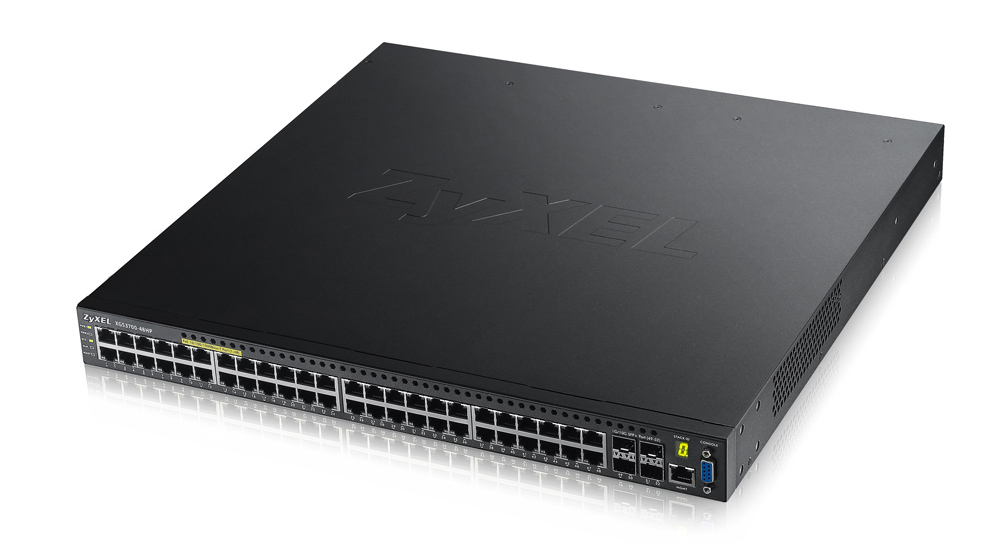

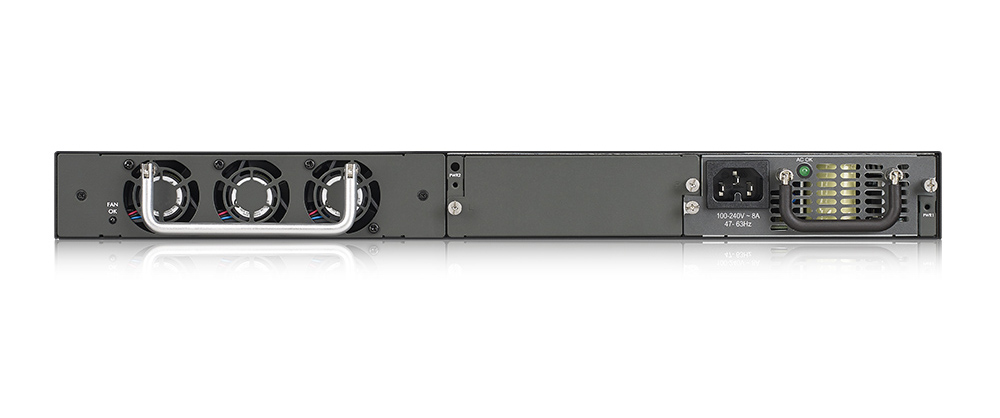

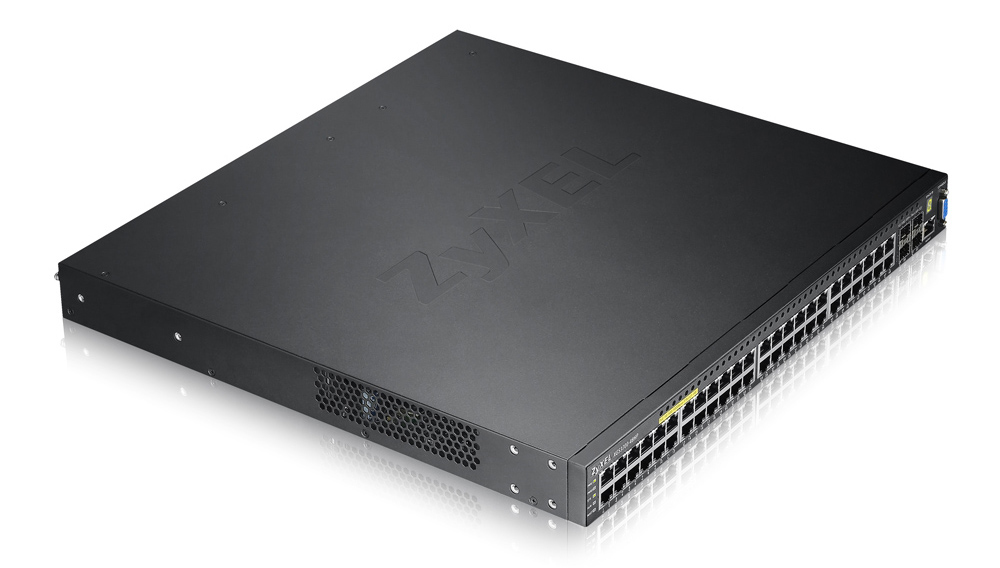

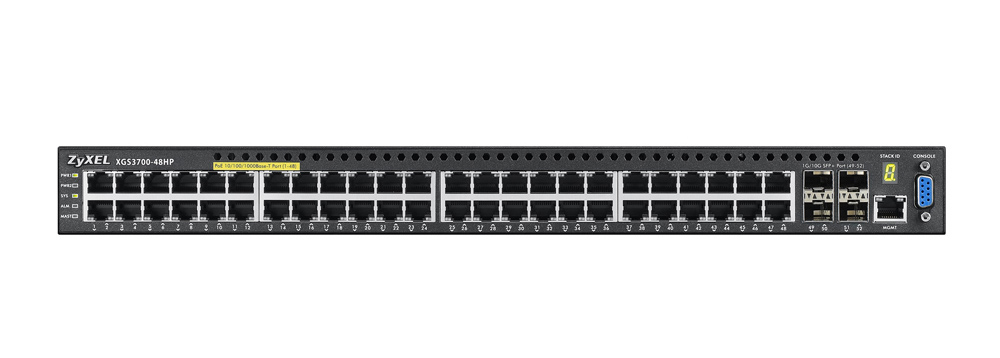

Zyxel XGS3700-48HP Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

Zyxel XGS3700-48HP Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

Model XGS3700-48HPPart no. XGS3700-48HP-ZZ0101FEAN 760559120870

56 specifications
  • Weight8.02 kg
  • ColourBlue
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportYes
  • MAC address table16000 entries
See all specifications

Overview

Weight
8.02 kg
Colour
Blue
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
10G support
Yes
MAC address table
16000 entries
Brand
Zyxel
Model
XGS3700-48HP
Part number
XGS3700-48HP-ZZ0101F
EAN / UPC
760559120870, 4718937571796, 5053959460086, 7605591205808
Also known as
Zyxel XGS3700-48HP Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue

Specifications

56 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity4
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Port mirroringYes
Routing entries512
Auto-negotiationYes
Broadcast storm controlYes
Cable length detectionYes
Flow control supportYes
IP address table512
Rate limitingYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity176 Gbit/s
Throughput131 Mpps
Packet buffer memory2 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Static port securityYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Product colourBlue
LED indicatorsYes
Wall mountableYes
SafetyLVB, BSMI
Electromagnetic compatibilityFCC Part 15 (Class A), CE EMC (Class A), BSMI ENC

Performance

Plug and PlayYes
Mean time between failures (MTBF)200000 h

Power

Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48

Other features

Power LEDYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 90%
Heat dissipation2046 BTU/h

Weight & dimensions

Width440 mm
Depth437 mm
Height44 mm
Weight8.02 kg

Certificates

CertificationRoHS (Level A)

Logistics data

Harmonized System (HS) code85176990
