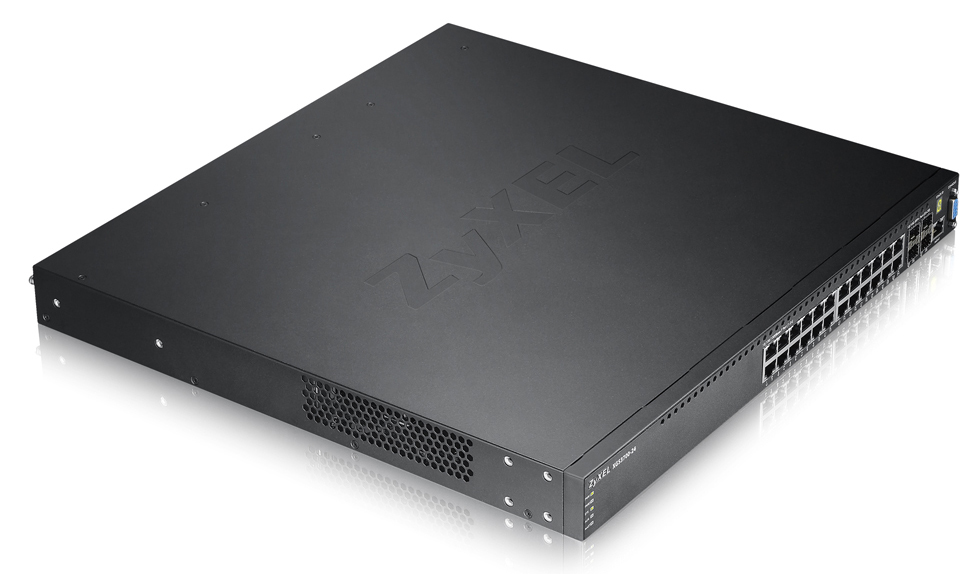

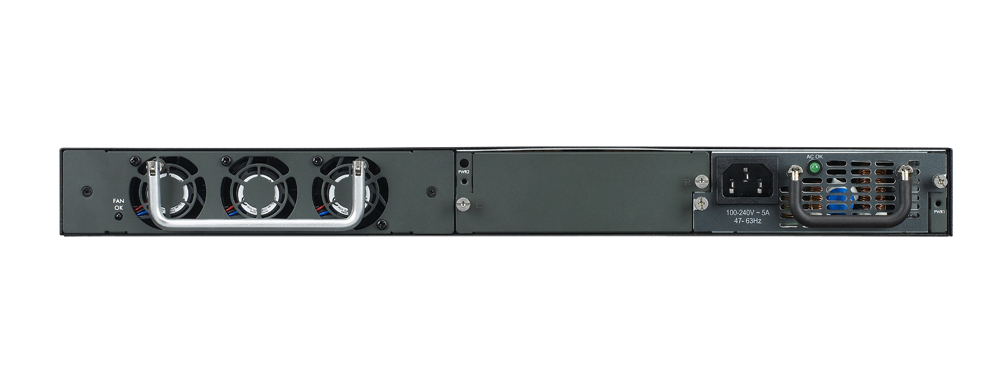

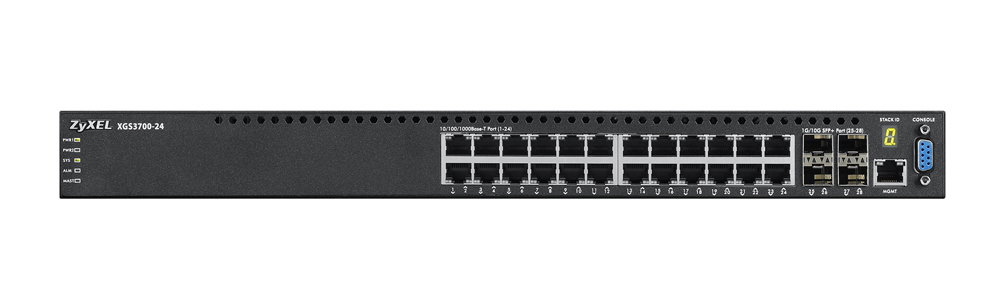

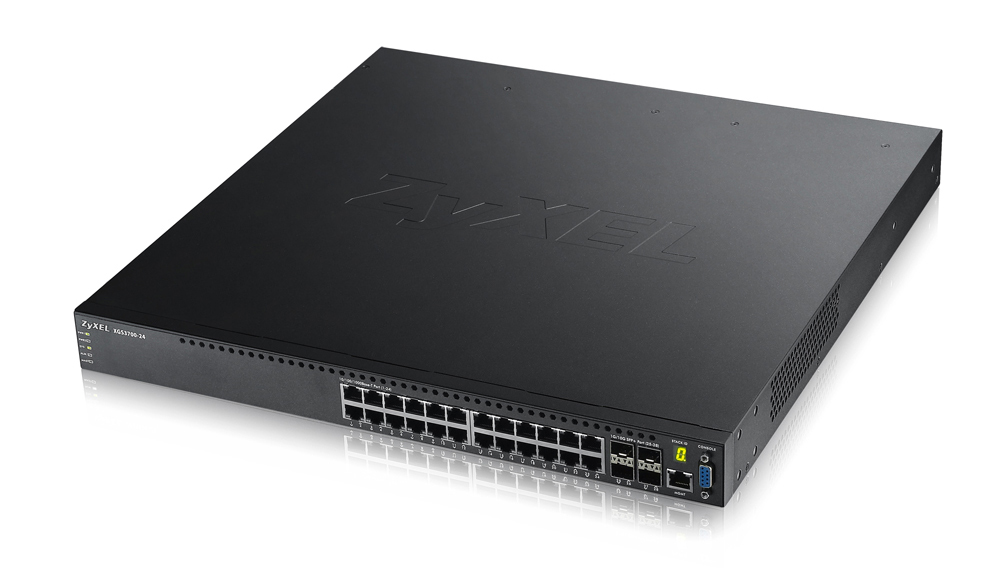

Zyxel XGS3700-24 Managed L2+ Gigabit Ethernet (10/100/1000) Black

Zyxel XGS3700-24 Managed L2+ Gigabit Ethernet (10/100/1000) Black

Model XGS3700-24EAN 5053959460055

55 specifications
  • Weight7.27 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportYes
  • MAC address table16000 entries
See all specifications

Overview

Weight
7.27 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
Yes
MAC address table
16000 entries
Brand
Zyxel
Model
XGS3700-24
Part numbers
XGS3700-24, XGS3700-24-ZZ0101F
EAN / UPC
5053959460055, 4172937571765, 4718937571765, 760559120849
Also known as
Zyxel XGS3700-24 Managed L2+ Gigabit Ethernet (10/100/1000) Black

Specifications

55 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity4
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Port mirroringYes
Routing entries512
Auto-negotiationYes
Broadcast storm controlYes
Cable length detectionYes
Flow control supportYes
IP address table512
Rate limitingYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity128 Gbit/s
Throughput95 Mpps
Packet buffer memory2 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportNo
Static port securityYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Product colourBlack
LED indicatorsYes
Wall mountableYes
SafetyLVB, BSMI
Electromagnetic compatibilityFCC Part 15 (Class A), CE EMC (Class A), BSMI ENC

Performance

Plug and PlayYes
Mean time between failures (MTBF)280000 h

Power

Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Power LEDYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 90%
Heat dissipation151.745 BTU/h

Weight & dimensions

Width440 mm
Depth437 mm
Height44 mm
Weight7.27 kg

Certificates

CertificationRoHS (Level A)

Logistics data

Harmonized System (HS) code85176990
