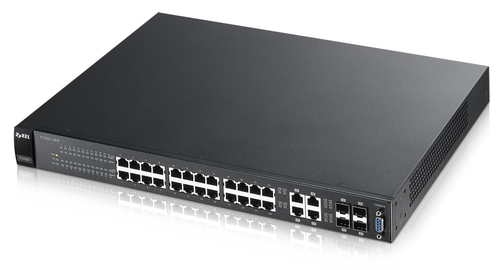

Zyxel XGS3600-26F L2 Gigabit Ethernet (10/100/1000) 1U Black

Zyxel XGS3600-26F L2 Gigabit Ethernet (10/100/1000) 1U Black

Model XGS3600-26FPart no. XGS3600-26F-EU01V1FEAN 4718937567409

30 specifications

Type1U
Weight3.1 kg
ColourBlack
Switch layerL2
Basic switching RJ-45 Ethernet ports quantity20
10G supportYes

See all specifications

Overview

Type: 1U
Weight: 3.1 kg
Colour: Black
Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 20
10G support: Yes

Brand: Zyxel
Category: Network Switch
Model: XGS3600-26F
Part numbers: XGS3600-26F-EU01V1F, XGS3600-26F-GB01V1F
EAN / UPC: 4718937567409, 4718937567386
Also known as: Zyxel XGS3600-26F L2 Gigabit Ethernet (10/100/1000) 1U Black

Specifications

30 specifications in 10 groups

Management features

Specification	Value
Switch layer	L2
Quality of Service (QoS) support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
SFP module slots quantity	20
SFP+ module slots quantity	2
Console port	RJ-45
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Auto MDI/MDI-X	Yes

Data transmission

Specification	Value
MAC address table	32000 entries
Switching capacity	88 Gbit/s
Throughput	66.47 Mpps
Packet buffer memory	4 MB

Security

Specification	Value
Security algorithms	802.1x RADIUS, HTTPS, SSH

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black

Power

Specification	Value
AC input voltage	100 - 240 V
Input voltage	48 V

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%

Weight & dimensions

Specification	Value
Width	442 mm
Depth	211.2 mm
Height	44 mm
Weight	3.1 kg
