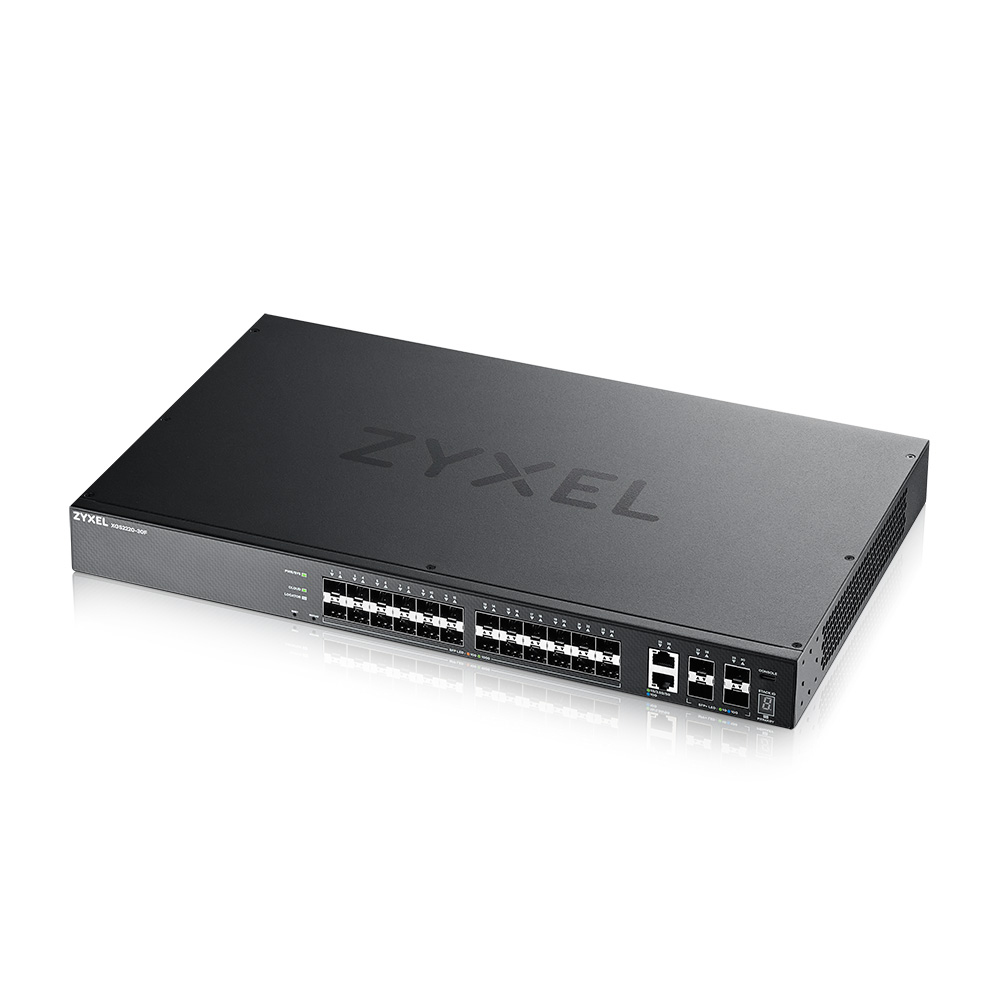

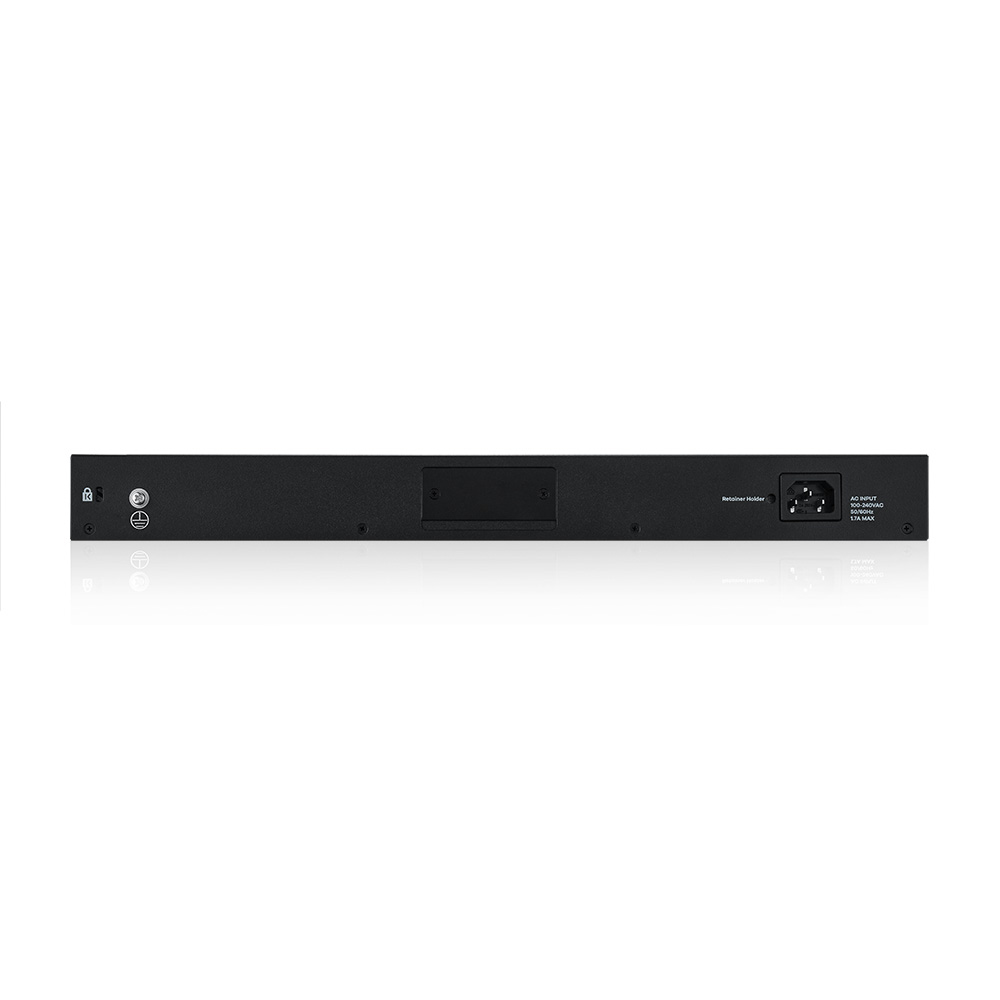

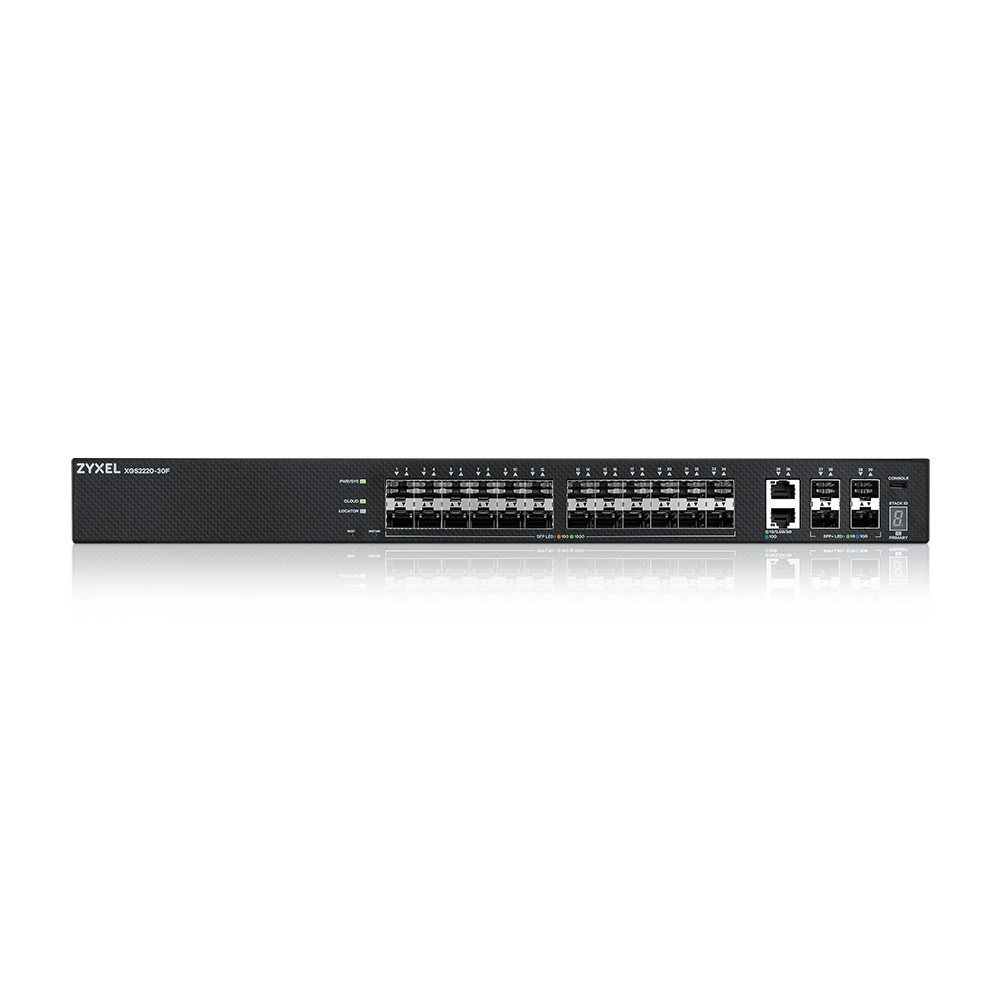

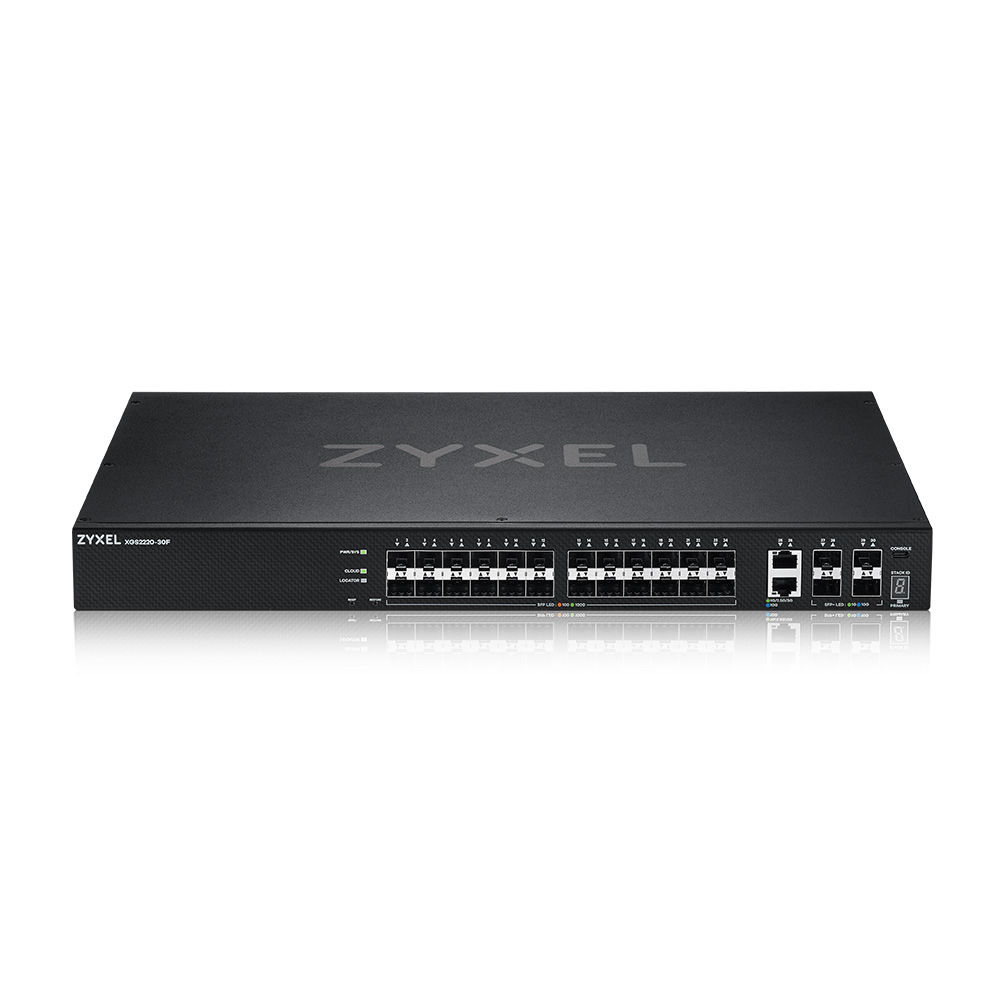

XGS2220-30F Managed L3 Black
Model XGS2220-30FPart no. XGS2220-30F-EU0101FEAN 760559129590
54 specifications
- Memory1024 MB
- Weight3.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports typeNo
- 10G supportYes
Overview
- Memory
- 1024 MB
- Weight
- 3.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports type
- No
- 10G support
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XGS2220-30F
- Part numbers
- XGS2220-30F-EU0101F, XGS2220-30F-GB0101F, XGS2220-30F
- EAN / UPC
- 760559129590, 4718937624980, 4718937625000
- Also known as
- Zyxel XGS2220-30F Managed L3 Black
Specifications
54 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| 10G Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 24 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.1p, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3az, IEEE 802.1x |
| 10G support | Yes |
| Routing entries | 64 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 168 Gbit/s |
| Forwarding rate | 125 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 352.923 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 66 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 225.06 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 616 mm |
| Package depth | 355 mm |
| Package height | 107 mm |
| Package weight | 4.83 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), Low Voltage Directive (LVD), CE |
