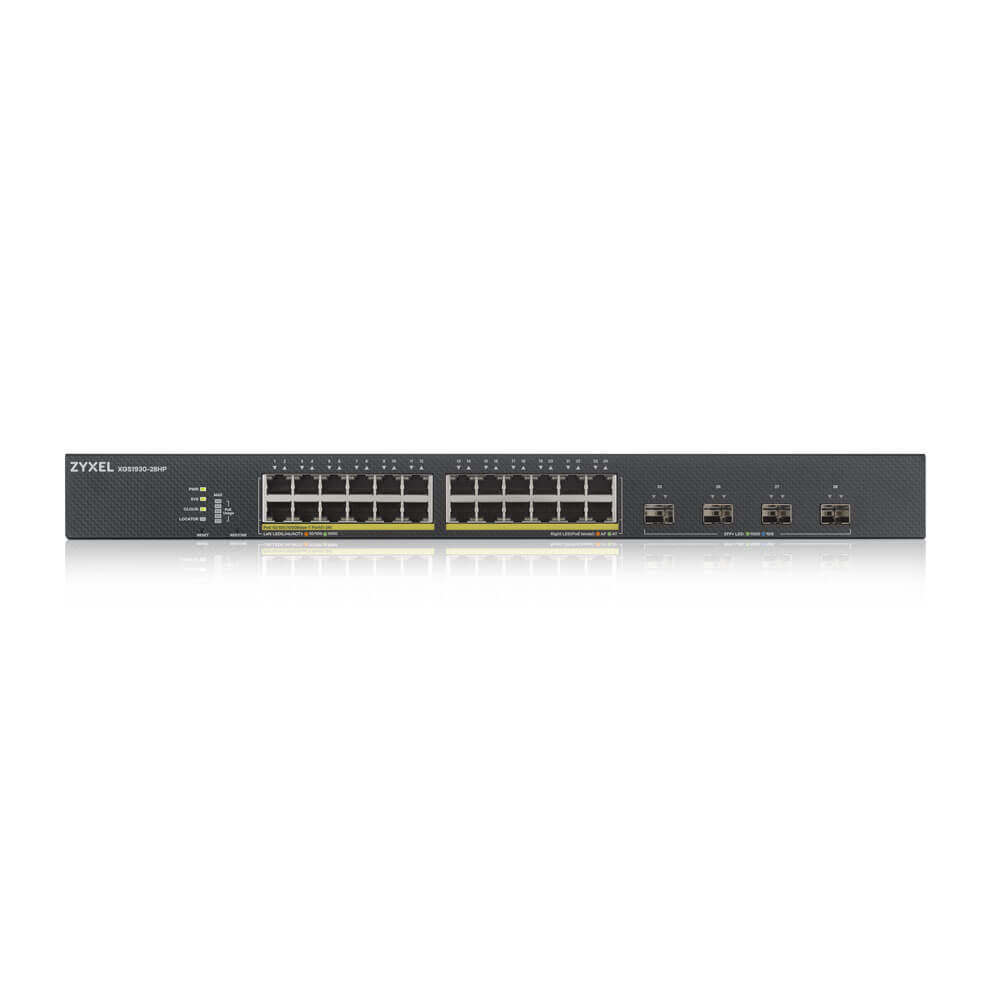

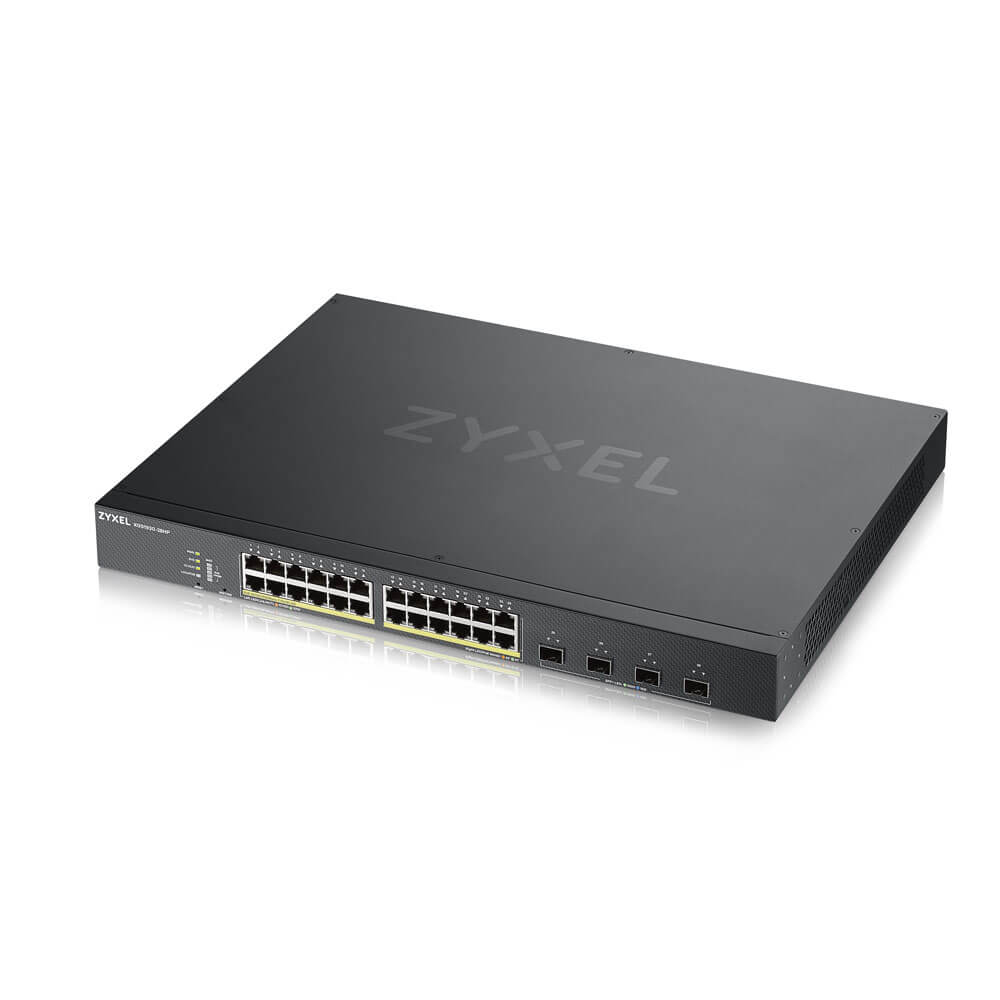

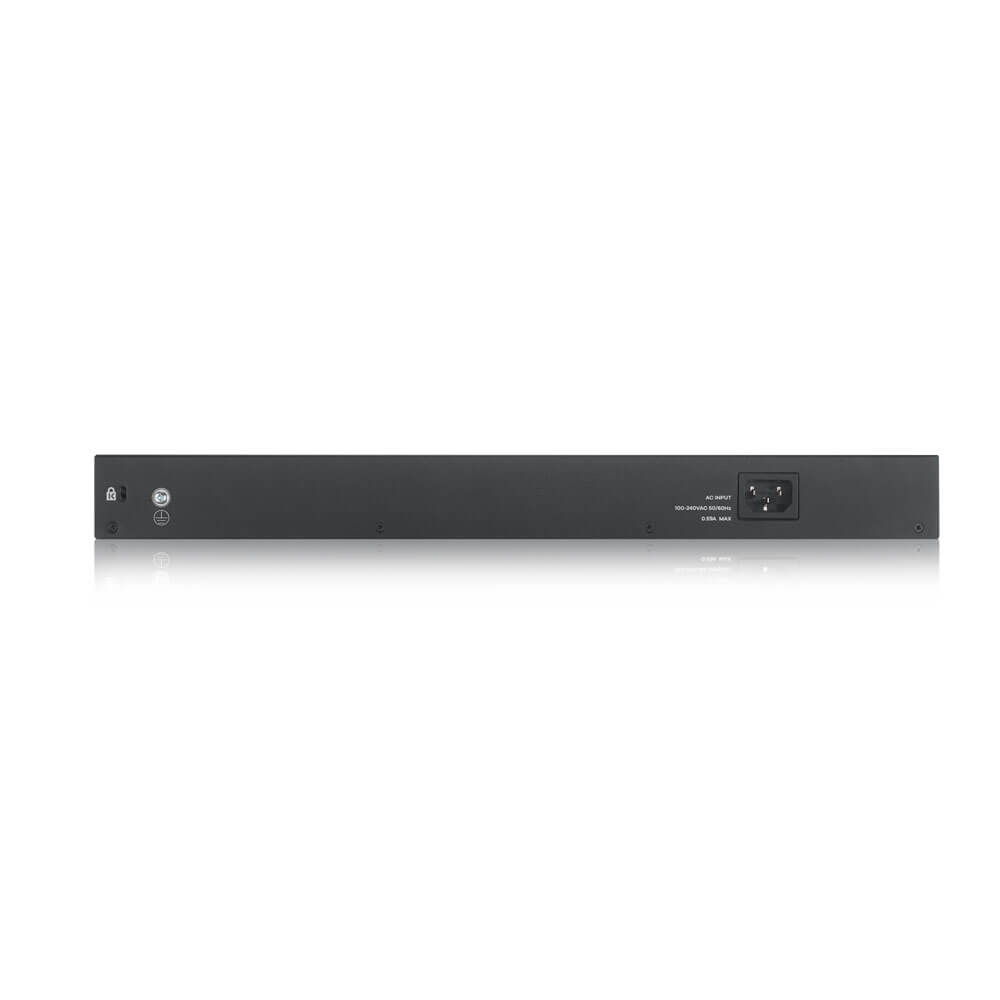

Zyxel XGS1930-28HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

XGS1930-28HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model XGS1930-28HPPart no. XGS1930-28HP-GB0101FEAN 4718937595006

71 specifications

Memory512 MB
Noise28.5 dB
Weight4.6 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24

See all specifications

Overview

Memory: 512 MB
Noise: 28.5 dB
Weight: 4.6 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24

Brand: Zyxel
Category: Network Switch
Model: XGS1930-28HP
Part numbers: XGS1930-28HP-GB0101F, XGS1930-28HP, XGS1930-28HP-EU0101F, 4110
EAN / UPC: 4718937595006, 4718937595013, 760559124700
Also known as: Zyxel XGS1930-28HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

71 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Fiber optic connector	SFP+

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
IP routing	Yes
Routing entries	32
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, Port-based VLAN
Number of VLANs	4000

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps
Static route	Yes
Path MTU discovery	Yes
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
CPU defense	Yes
Loop protection	Yes
Password protection	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Safety	LVD, BSMI
Electromagnetic compatibility	FCC 15 A, CE A, BSMI EMC

Performance

Specification	Value
Internal memory	512 MB
Flash memory	32 MB
Noise level	28.5 dB
Mean time between failures (MTBF)	1369432 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	471 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	375 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	1606.11 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	330 mm
Height	44 mm
Weight	4.6 kg

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes

Packaging data

Specification	Value
Package width	585 mm
Package depth	503 mm
Package height	95 mm
Package weight	5.82 kg

Certificates

Specification	Value
Certification	RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
