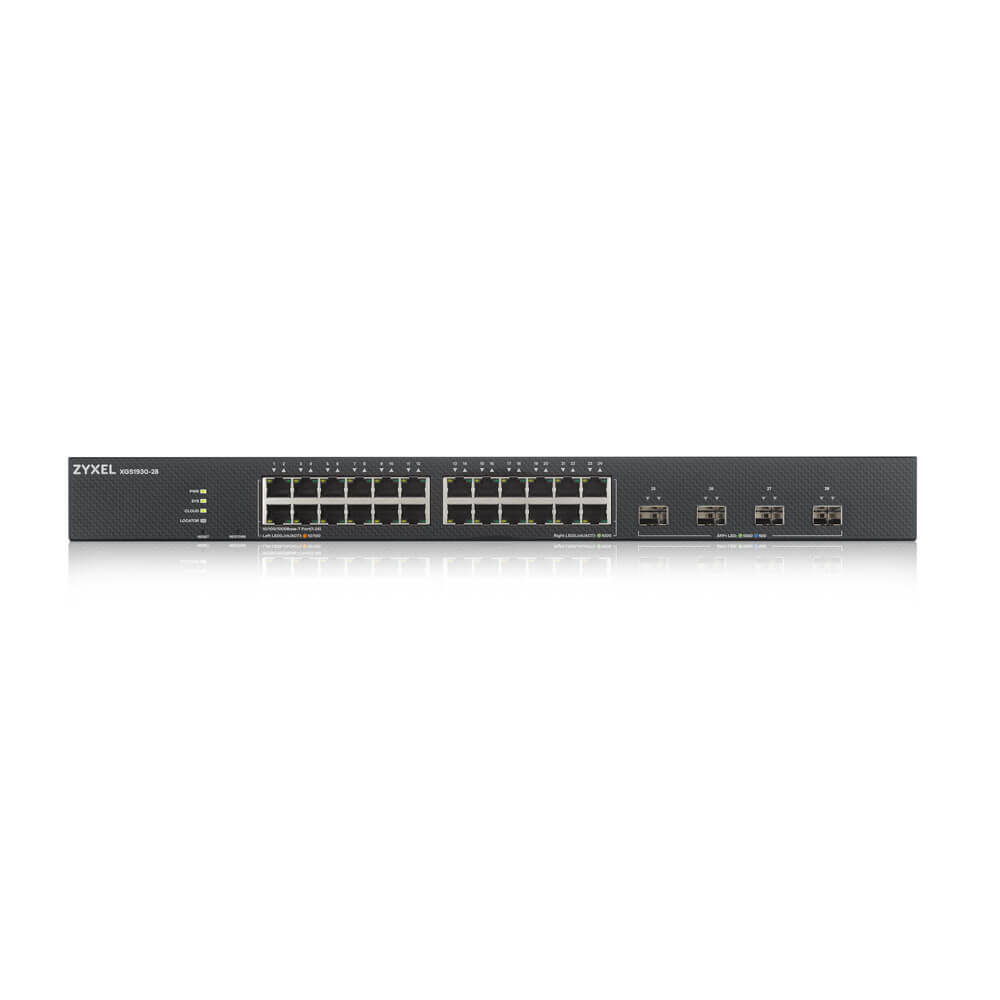

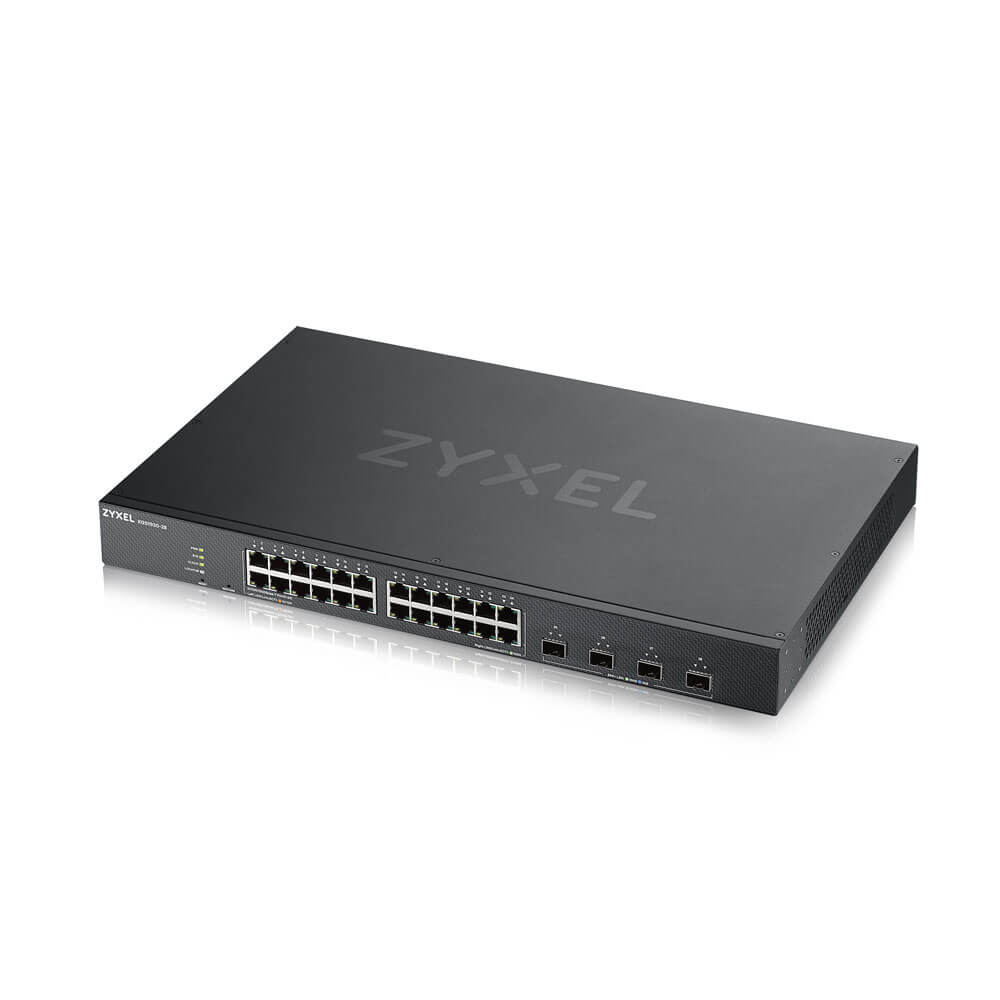

Zyxel XGS1930-28 Managed L3 Gigabit Ethernet (10/100/1000) Black
Model XGS1930-28Part no. XGS1930-28-GB0101FEAN 760559124694
69 specifications
- Memory512 MB
- Noise0 dB
- Weight3.4 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 512 MB
- Noise
- 0 dB
- Weight
- 3.4 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XGS1930-28
- Part numbers
- XGS1930-28-GB0101F, XGS1930-28, XGS1930-28-EU0101F, 4109
- EAN / UPC
- 760559124694, 4718937594962, 4718937594979
- Also known as
- Zyxel XGS1930-28 Managed L3 Gigabit Ethernet (10/100/1000) Black
Specifications
69 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+ |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Routing entries | 32 |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN, Port-based VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Static route | Yes |
| Path MTU discovery | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCPv6 relay, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| CPU defense | Yes |
| Loop protection | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Safety | LVD, BSMI |
| Electromagnetic compatibility | FCC 15 A, CE A, BSMI EMC |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 1211024 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 24.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 83.886 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 616 mm |
| Package depth | 355 mm |
| Package height | 107 mm |
| Package weight | 4.47 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
