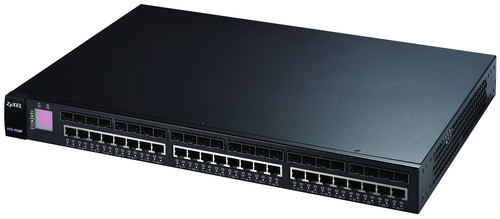

Zyxel XGS-4528F Managed Black
Model XGS-4528FPart no. 91-010-146005BEAN 4718937562176
33 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight4.9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 4.9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XGS-4528F
- Part numbers
- 91-010-146005B, 91-010-146001B, XGS4528F
- EAN / UPC
- 4718937562176, 760559115258, 4718937505883, 7605591152584
- Also known as
- Zyxel XGS-4528F Managed Black
Specifications
33 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.768 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSL/TLS |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Web-based, Telnet CLI, SNMP v1, v2c, v3, RS-232c |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 80 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 310 x 44.45 mm |
| Connectivity technology | Wired |
| Authentication method | 802.1x |
| Power requirements | 100-240VAC, 50/60H |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 310 mm |
| Height | 44.5 mm |
| Weight | 4.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 580 mm |
| Package depth | 466 mm |
| Package height | 176 mm |
| Package weight | 5.9 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | - UL 60950-1 - CSA 60950-1 - EN 60950-1 - IEC 60950-1 |
