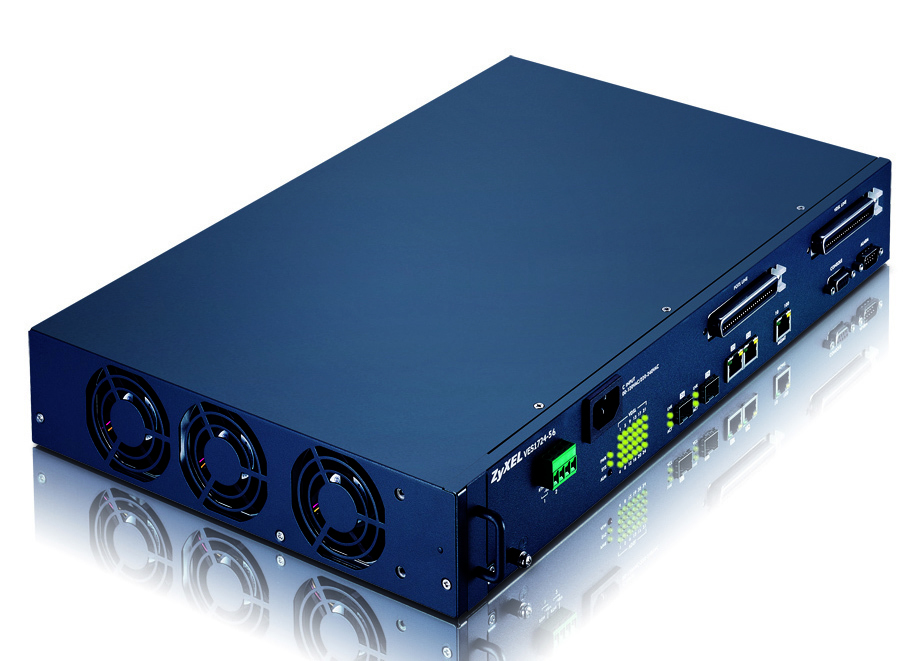

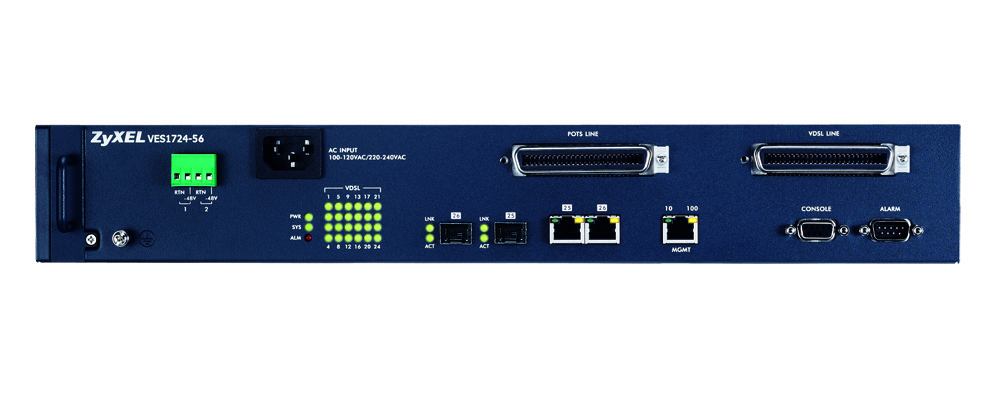

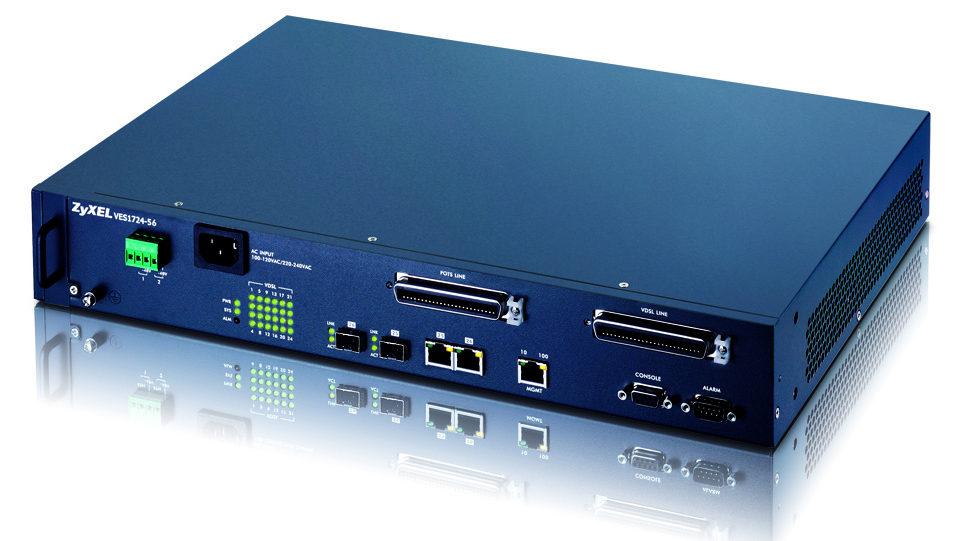

Zyxel VES1724-56 Managed Gigabit Ethernet (10/100/1000) 1U Black
Model VES1724-56Part no. VES1724-56-EU01V1FEAN 760559122638
43 specifications
- Type1U
- Weight4.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 4.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Brand
- Zyxel
- Category
- Network Switch
- Model
- VES1724-56
- Part numbers
- VES1724-56-EU01V1F, VES1724-56
- EAN / UPC
- 760559122638, 4718937583317, 7605591226384
- Also known as
- Zyxel VES1724-56 Managed Gigabit Ethernet (10/100/1000) 1U Black
Specifications
43 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | MIB II, RFC1493, 2674, 1757 MIB, private MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 256 entries |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Safety | EN60950-1, CSA60950-1, |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 250 V |
| AC input frequency | 60 Hz |
| Input voltage | -36 - 75 V |
| Power consumption (typical) | 63 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44.4 mm |
| Weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 550 mm |
| Package depth | 395 mm |
| Package height | 175 mm |
| Package weight | 5.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, EN55022 Class A, ETSI300-386, RoHS, K.20, ETSI300-019 |
