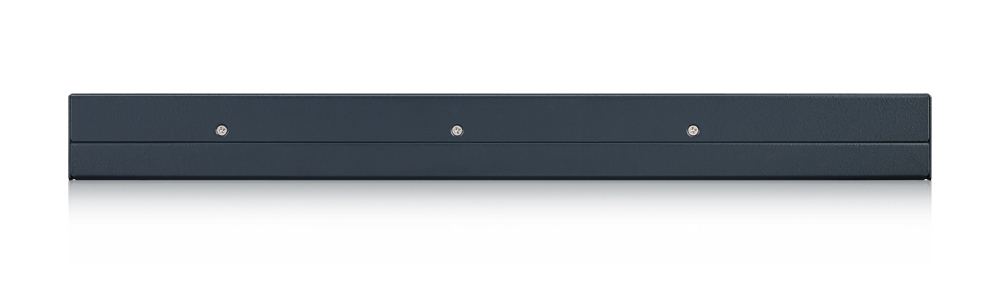

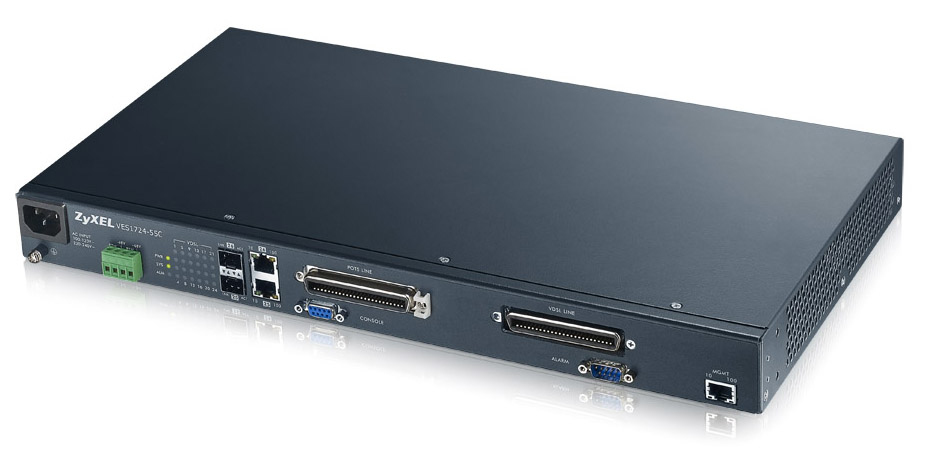

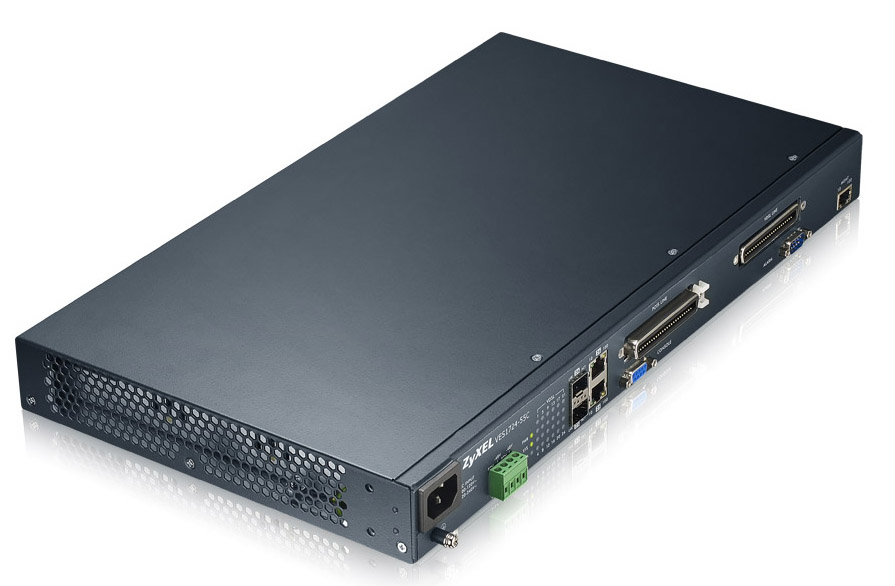

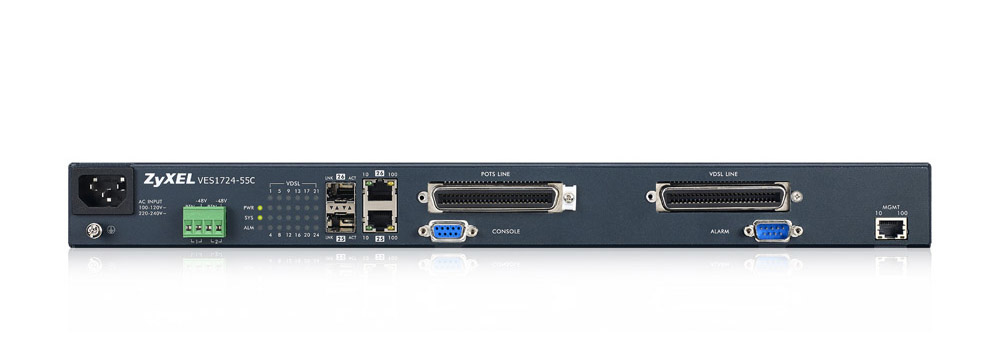

Zyxel VES1724-55C Managed 1U Black
Model VES1724-55CPart no. VES1724-55C-EU01V1FEAN 4718937582785
35 specifications
- Type1U
- Weight4.7 kg
- ColourBlack
- Switch typeManaged
- Power connectorDC-in jack
- MAC address table1600 entries
Overview
- Type
- 1U
- Weight
- 4.7 kg
- Colour
- Black
- Switch type
- Managed
- Power connector
- DC-in jack
- MAC address table
- 1600 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- VES1724-55C
- Part number
- VES1724-55C-EU01V1F
- EAN / UPC
- 4718937582785
- Also known as
- Zyxel VES1724-55C Managed 1U Black
Specifications
35 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | MIB II, RFC1493, 2674, 1757 MIB, private MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1600 entries |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Safety | EN60950-1, CSA60950-1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 63 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44.4 mm |
| Weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package type | Box |
| Package width | 550 mm |
| Package depth | 395 mm |
| Package height | 175 mm |
| Package weight | 5.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, EN55022 Class A, ETSI300-386, RoHS, K.20, ETSI300-019 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
