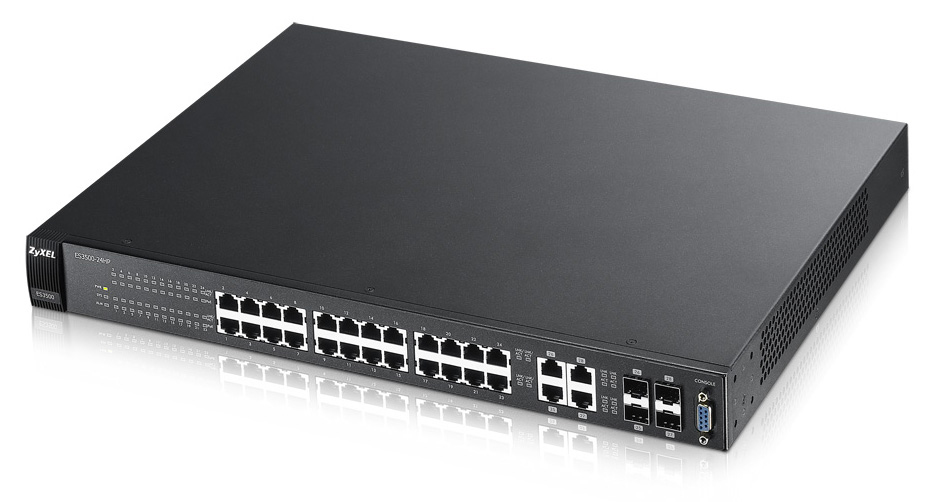

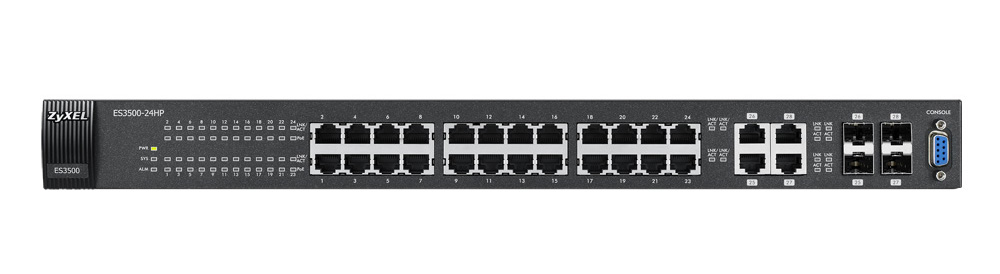

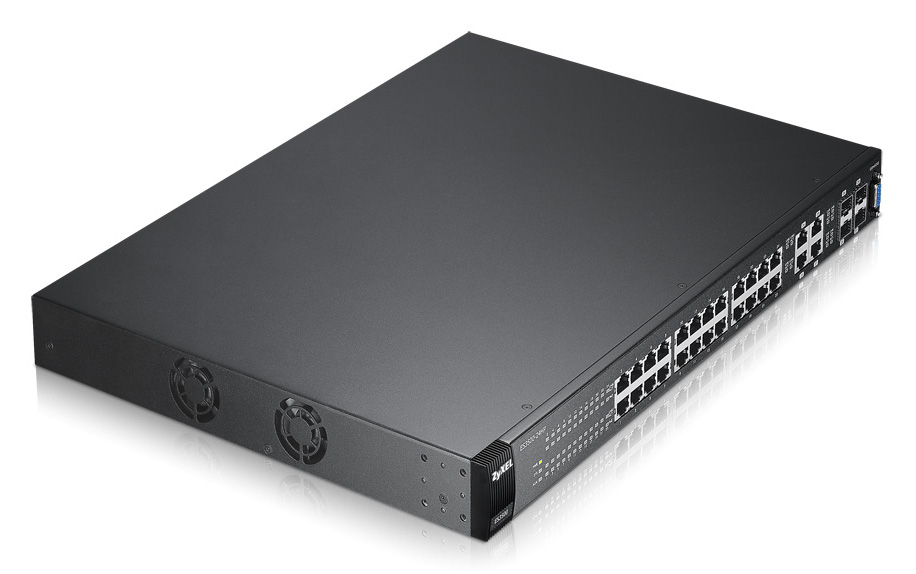

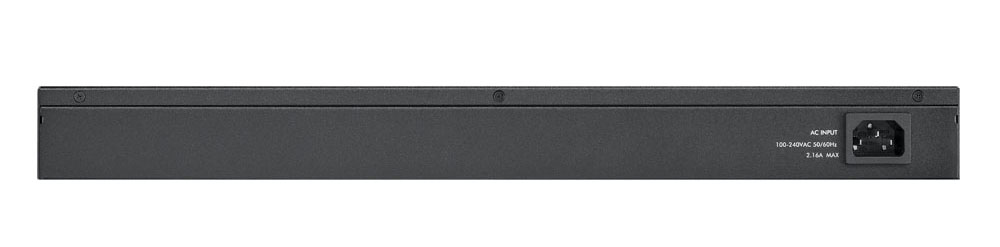

Zyxel PoE Switch

Zyxel PoE Switch

Model PoE SwitchPart no. ES3500-24HP-GB0101FEAN 4718937568253

47 specifications
  • Speed1 Gbit/s
  • Type1U
  • Weight4.3 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Speed
1 Gbit/s
Type
1U
Weight
4.3 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
Zyxel
Model
PoE Switch
Part numbers
ES3500-24HP-GB0101F, ES3500-24HP, ES3500-24HP-EU0101F, ES3500-24HP-EU0101
EAN / UPC
4718937568253, 760559119423, 4718937568185, 4718937568260 +7 more
Also known as
Zyxel PoE Switch Managed L2 Power over Ethernet (PoE) 1U Black

Specifications

47 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Gigabit Ethernet (copper) ports quantity4
Combo SFP ports quantity4
SFP/SFP+ slots quantity4
Console portRS-232

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Full duplexYes
Link aggregationYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Supported data transfer rates10, 100, 1000
Switching capacity12.8 Gbit/s
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

Access Control List (ACL)Yes
MAC address filteringYes

Protocols

Management protocolsIPv6

Design

Rack mountingYes
Form factor1U
Product colourBlack
Housing materialMetal
LED indicatorsLAN, PoE, Status
SafetyEN 55022: 2006+A1: 2007, EN 61000-3-2, EN 61000-3-3, EN 55024, AS/NZS CISPR 22: 2009, FCC Part 15 (Class A, Class B), ICES-003, BSMI (CNS13438, CNS14336), EN 60950-1

Performance

Mean time between failures (MTBF)773887.2 h

Power

Redundant power supply (RPS) supportNo
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output power180 W
Power consumption (typical)236 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24

Other features

Power LEDYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width440 mm
Depth330 mm
Height44 mm
Weight4.3 kg

Certificates

CertificationFCc, CE, RoHS
