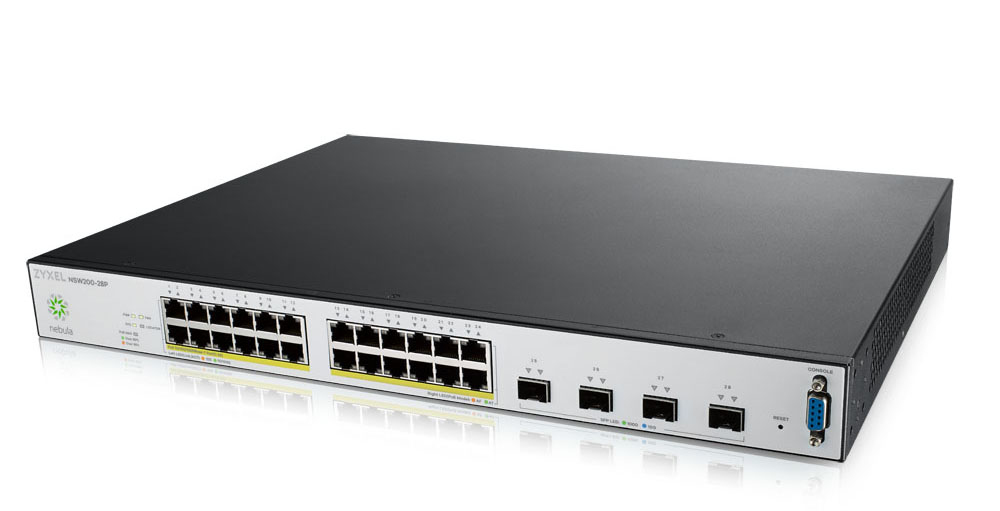

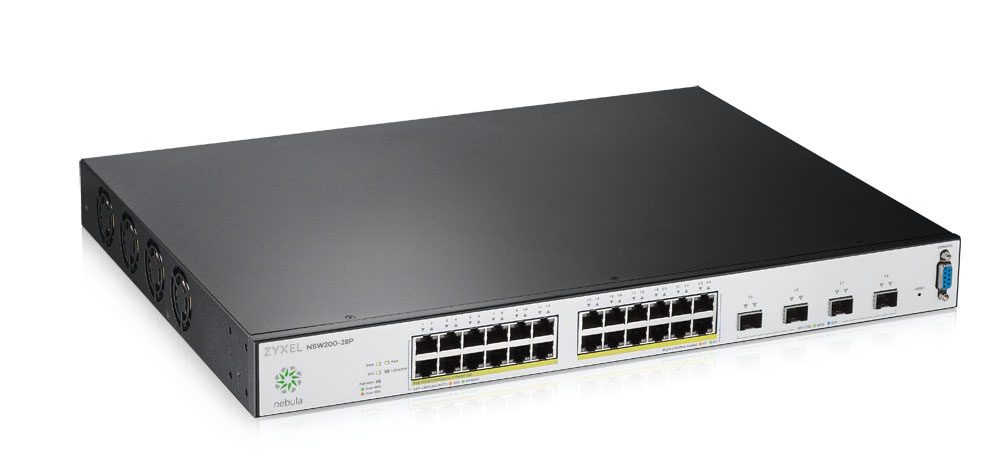

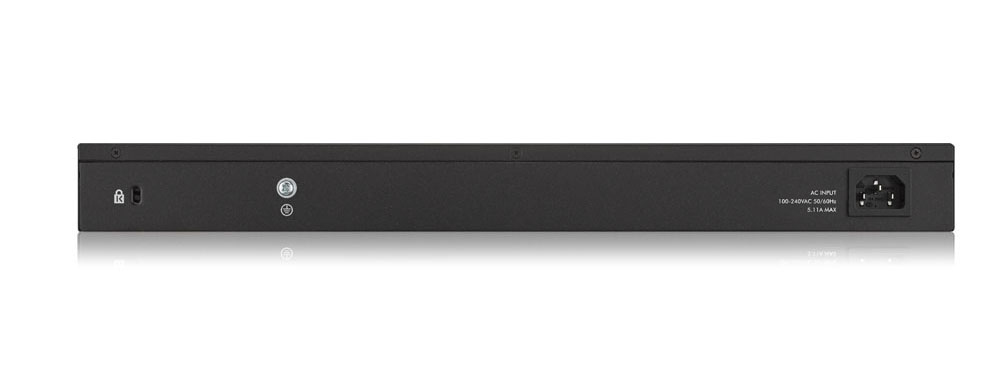

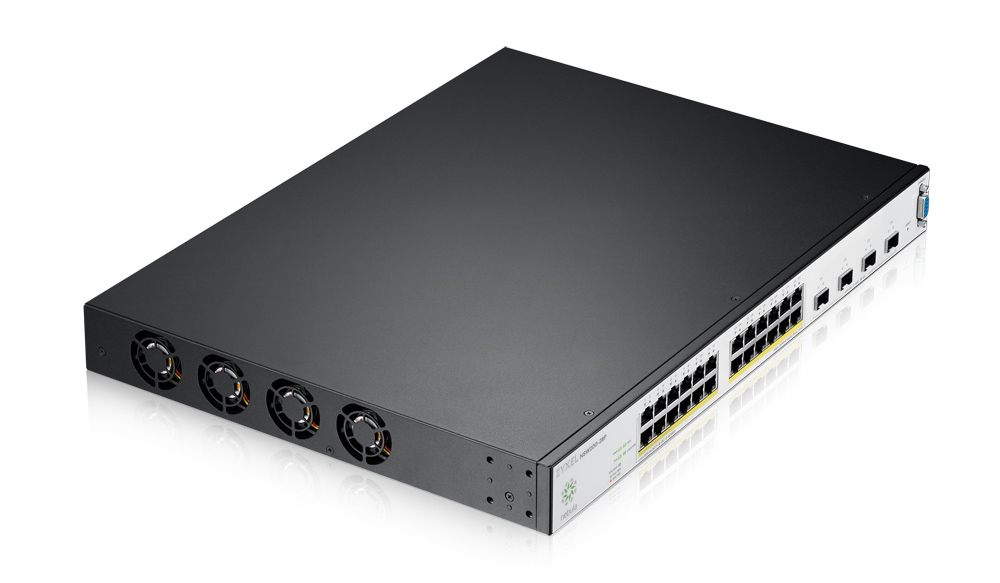

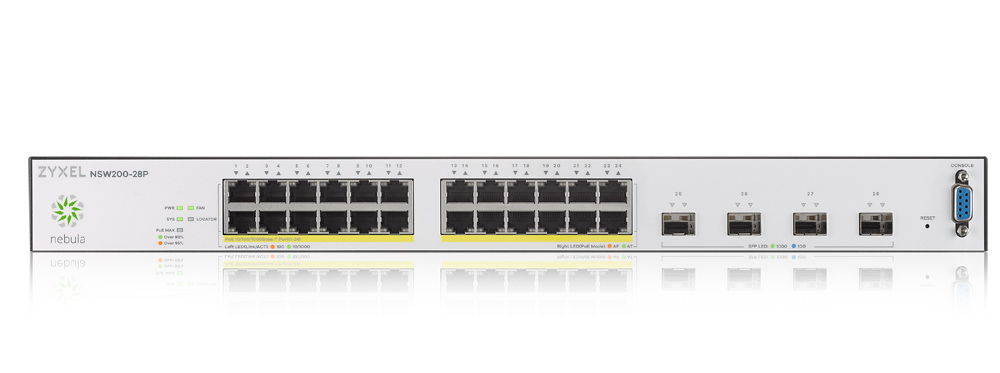

Zyxel NSW200-28P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey

Zyxel NSW200-28P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey

Model NSW200-28PPart no. NSW200-28P-EU0101FEAN 760559124038

57 specifications

Noise42.075 dB
Weight5.06 kg
ColourBlack, Grey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportYes

See all specifications

Overview

Noise: 42.075 dB
Weight: 5.06 kg
Colour: Black, Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: Yes

Brand: Zyxel
Category: Network Switch
Model: NSW200-28P
Part numbers: NSW200-28P-EU0101F, NSW200-28P-GB0101F
EAN / UPC: 760559124038, 4718937592708, 4718937592715
Also known as: Zyxel NSW200-28P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey

Specifications

57 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Throughput	95.2 Mpps
Packet buffer memory	1.5 MB

Security

Specification	Value
IGMP snooping	Yes
Authentication	Guest VLAN, Port-based authentication
Loop protection	Yes
SSH/SSL support	Yes
Security algorithms	SNMP

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black, Grey

Performance

Specification	Value
Noise level	42.075 dB
Mean time between failures (MTBF)	616247 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	453 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	375 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 90%
Heat dissipation	14834 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	330 mm
Height	44.5 mm
Weight	5.06 kg

Packaging content

Specification	Value
Manual	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
AC adapter included	Yes
Package width	583 mm
Package depth	452 mm
Package height	97 mm
Package weight	6.4 kg

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
