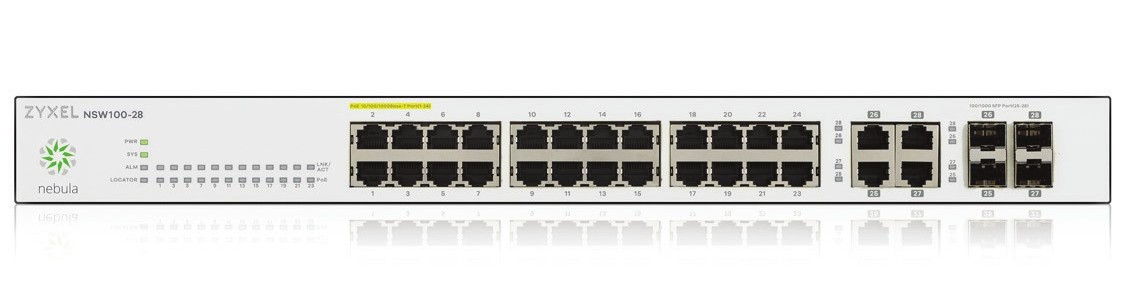

Zyxel NSW100-28-GB0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, Grey

Zyxel NSW100-28-GB0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, Grey

Model NSW100-28-GB0101FEAN 4718937595167

54 specifications

Noise59.6 dB
Weight21.72 g
ColourBlack, Grey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportYes

See all specifications

Overview

Noise: 59.6 dB
Weight: 21.72 g
Colour: Black, Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: Yes

Brand: Zyxel
Category: Network Switch
Model: NSW100-28-GB0101F
Part number: NSW100-28-GB0101F
EAN / UPC: 4718937595167
Also known as: Zyxel NSW100-28-GB0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, Grey

Specifications

54 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Web-based management	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Fiber optic connector	SFP+

Network

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Throughput	41.67 Mpps
Number of trunks	8
Number of queues	8
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP client
IGMP snooping	Yes
Authentication	Guest VLAN, Port-based authentication
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SNMP

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black, Grey
Safety	LVD, BSMI
Electromagnetic compatibility	FCC 15 A, CE EMC, BSMI EMC

Performance

Specification	Value
Noise level	59.6 dB
Mean time between failures (MTBF)	616247 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	27.2 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Heat dissipation	92752 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	131 mm
Height	44 mm
Weight	21.72 g

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes

Packaging data

Specification	Value
Package width	561 mm
Package depth	220 mm
Package height	82 mm
Package weight	4.79 kg
