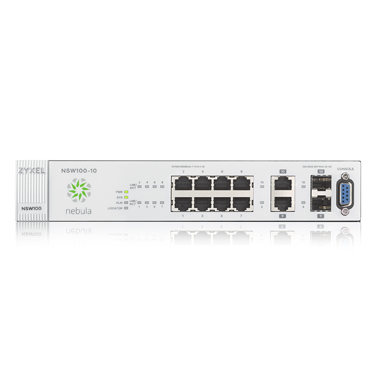

Zyxel NSW100-10 Managed L2 Gigabit Ethernet (10/100/1000) Black

Zyxel NSW100-10 Managed L2 Gigabit Ethernet (10/100/1000) Black

Model NSW100-10Part no. 6102EAN 4718937595129

51 specifications
  • Noise37.7 dB
  • Weight1.34 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
See all specifications

Overview

Noise
37.7 dB
Weight
1.34 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Brand
Zyxel
Model
NSW100-10
Part numbers
6102, NSW100-10-GB0101F, NSW100-10-EU0101F
EAN / UPC
4718937595129, 4718937595136, 760559124731
Also known as
Zyxel NSW100-10 Managed L2 Gigabit Ethernet (10/100/1000) Black

Specifications

51 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Combo SFP ports quantity2

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN

Data transmission

MAC address table16000 entries
Switching capacity20 Gbit/s
Number of queues8
Packet buffer memory1.5 MB

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
AuthenticationGuest VLAN
SSH/SSL supportYes
Security algorithmsSNMP

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourBlack

Performance

Noise level37.7 dB
Mean time between failures (MTBF)1382030 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)12.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 90%
Heat dissipation41.943 BTU/h

Weight & dimensions

Width250 mm
Depth150 mm
Height44 mm
Weight1.34 kg

Packaging content

Cables includedAC
Rack mount kitYes

Packaging data

Package typeBox
Wall mounting kitYes
Package width366 mm
Package depth214 mm
Package height79 mm
Package weight2.95 kg
