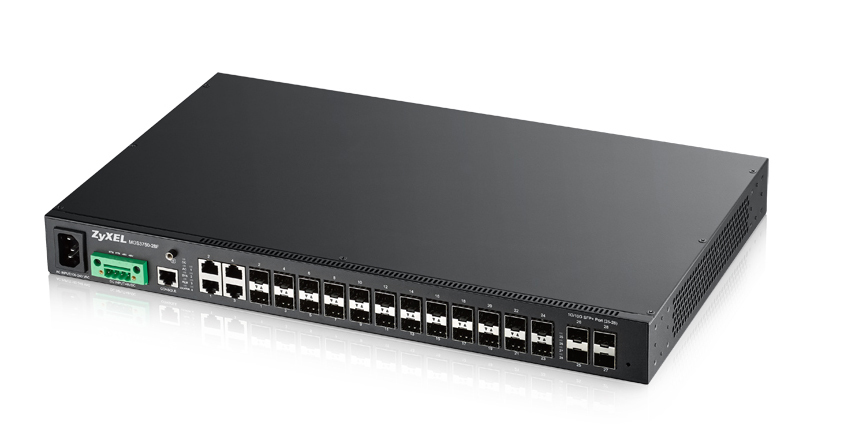

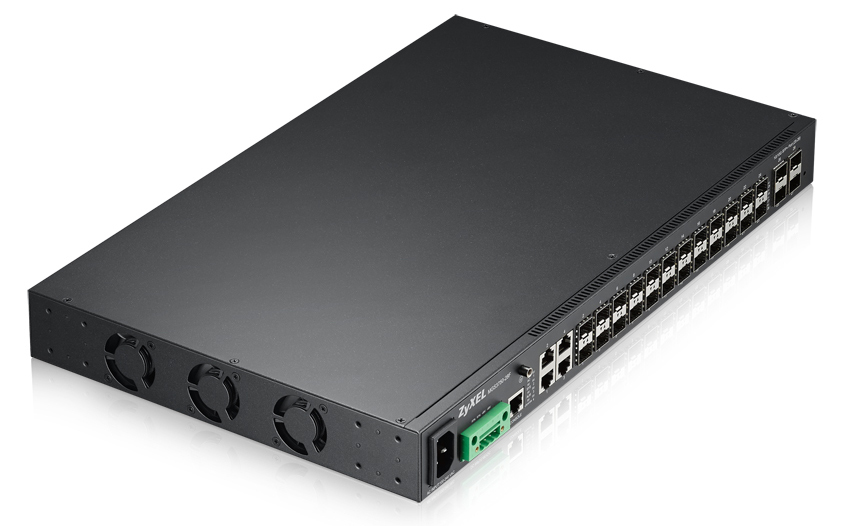

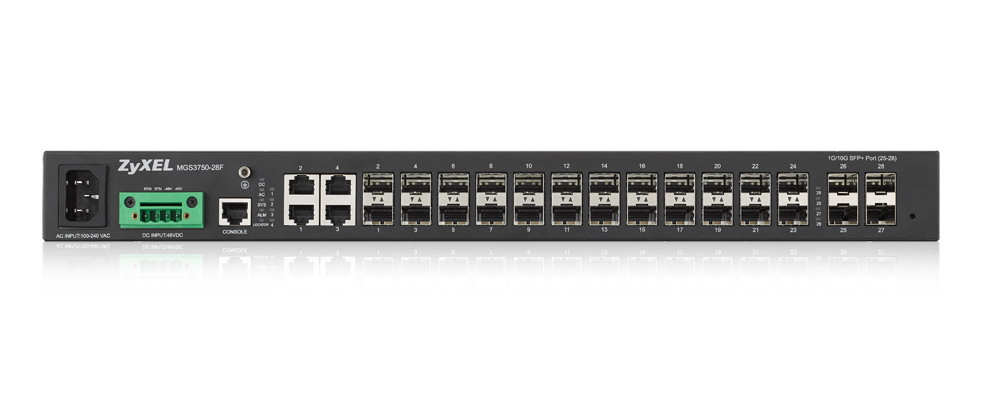

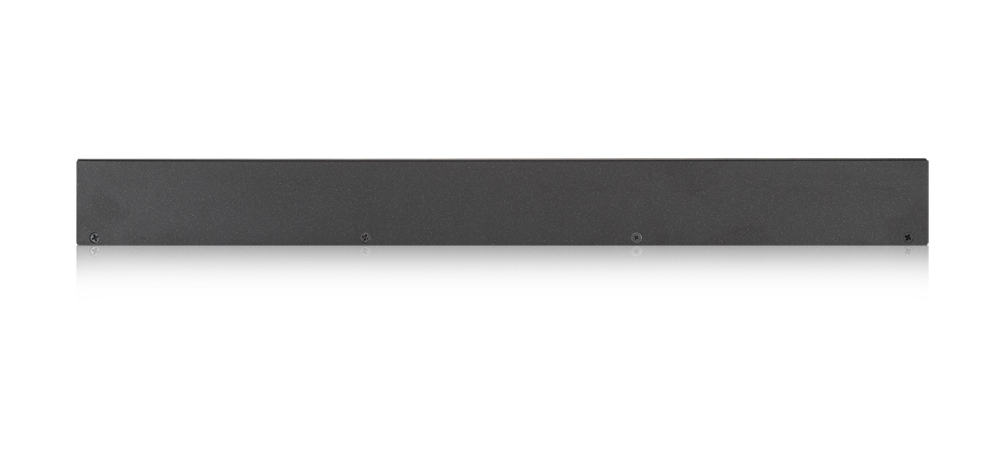

Zyxel MGS3750-28F Managed L2+ Black
Model MGS3750-28FPart no. MGS3750-28F-EU02V1FEAN 4718937590933
39 specifications
- ColourBlack
- Switch typeManaged
- Installed SFP modules quantity0
- 10G supportYes
- MAC address table32000 entries
- AC input voltage100 - 240 V
Overview
- Colour
- Black
- Switch type
- Managed
- Installed SFP modules quantity
- 0
- 10G support
- Yes
- MAC address table
- 32000 entries
- AC input voltage
- 100 - 240 V
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MGS3750-28F
- Part numbers
- MGS3750-28F-EU02V1F, 3099
- EAN / UPC
- 4718937590933
- Also known as
- Zyxel MGS3750-28F Managed L2+ Black
Specifications
39 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 4 |
| Fiber ports quantity | 20 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3az |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.32 Mpps |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SNMP |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input voltage | 48 V |
| Power consumption (max) | 69 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 269 mm |
| Height | 45 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.5 kg |
