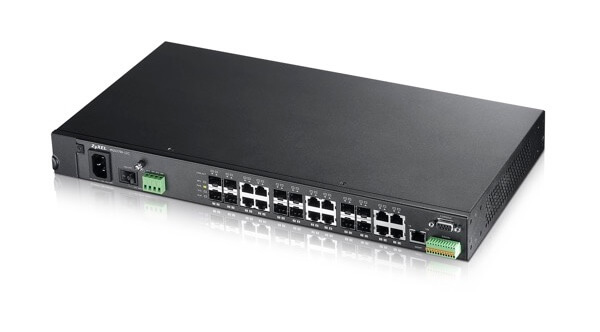

Zyxel MGS3700-12C Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Model MGS3700-12CPart no. 3162EAN 4250328331621
44 specifications
- Type1U
- Weight3.4 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 3.4 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- 10G support
- No
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MGS3700-12C
- Part number
- 3162
- EAN / UPC
- 4250328331621
- Also known as
- Zyxel MGS3700-12C Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
44 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Traffic shaping | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Throughput | 17.8 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| IP-MAC-Port binding | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 225 mm |
| Height | 44.5 mm |
| Weight | 3.4 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI LVD/EN 60950-1 CE FCC WEEE/RoHS 2/REACH |
