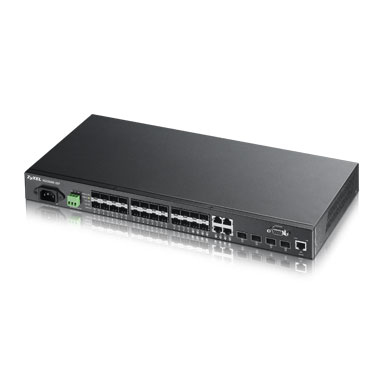

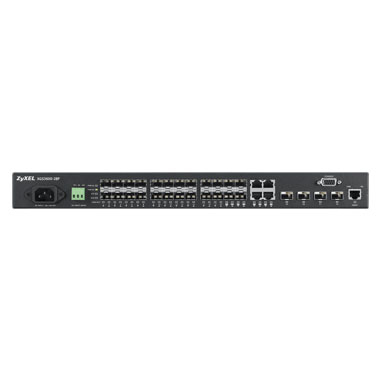

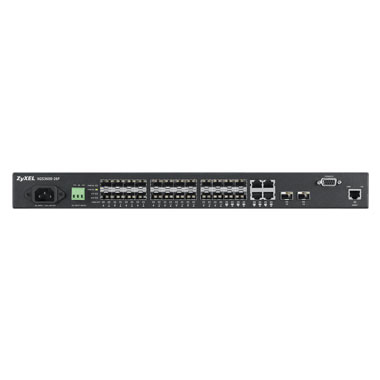

Zyxel MGS3600-24F Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
Model MGS3600-24FPart no. MGS3600-24F-EU01V1FEAN 4718937567355
34 specifications
- Memory4 MB
- Type1U
- Weight3.1 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity20
Overview
- Memory
- 4 MB
- Type
- 1U
- Weight
- 3.1 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 20
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MGS3600-24F
- Part numbers
- MGS3600-24F-EU01V1F, MGS3600-24F-GB01V1F
- EAN / UPC
- 4718937567355, 4718937567379
- Also known as
- Zyxel MGS3600-24F Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 20 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ag, IEEE 802.3ah |
| 10G support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 48 Gbit/s |
| Throughput | 35.71 Mpps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 4 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 41 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 211.2 mm |
| Height | 44 mm |
| Weight | 3.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 505 mm |
| Package depth | 304 mm |
| Package height | 92 mm |
| Package weight | 3.88 kg |
