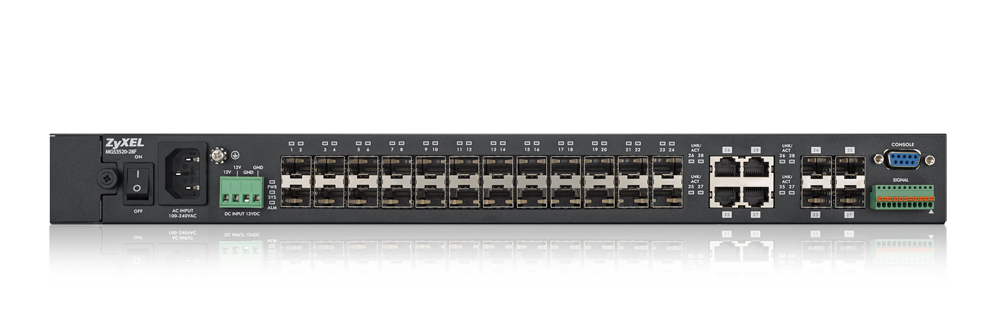

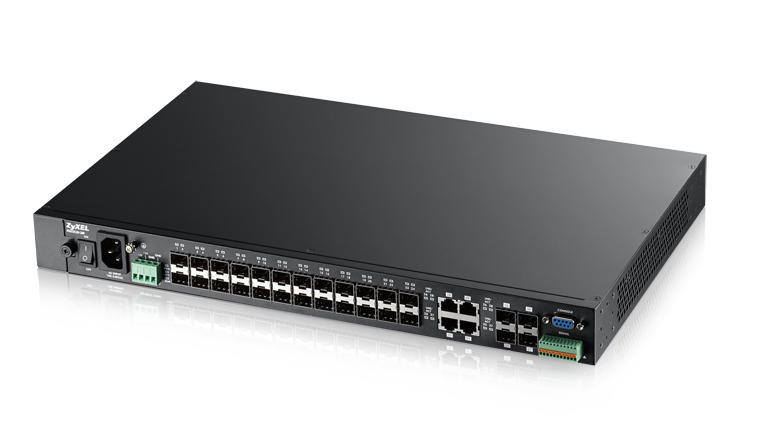

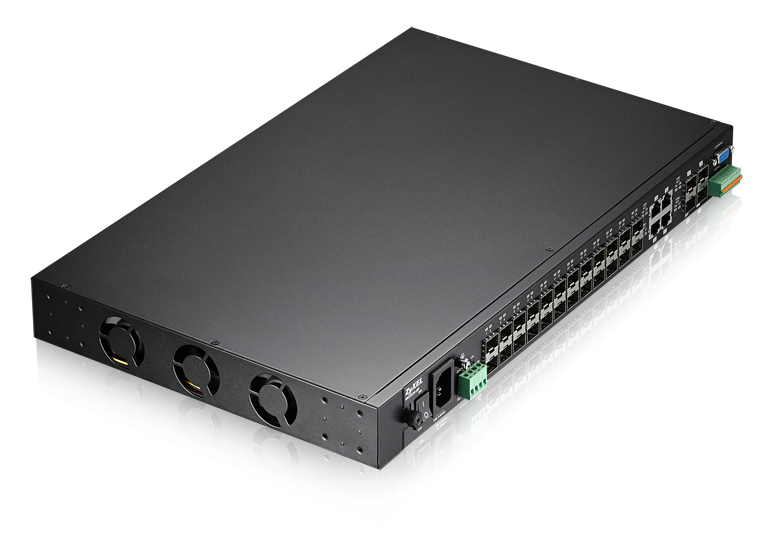

Zyxel MGS3520-28F Managed L2 Black
Model MGS3520-28FPart no. MGS3520-28F-EU01V1FEAN 4718937582211
34 specifications
- Weight3.72 kg
- ColourBlack
- Switch typeManaged
- Combo SFP ports quantity4
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 3.72 kg
- Colour
- Black
- Switch type
- Managed
- Combo SFP ports quantity
- 4
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MGS3520-28F
- Part numbers
- MGS3520-28F-EU01V1F, 3176
- EAN / UPC
- 4718937582211
- Also known as
- Zyxel MGS3520-28F Managed L2 Black
Specifications
34 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
| MIB support | RFC 1066, RFC 1213, 1157, RFC 1493,RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
Ports & interfaces
| Specification | Value |
|---|---|
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Stacked VLAN, Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.67 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, v2c, v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.72 kg |
