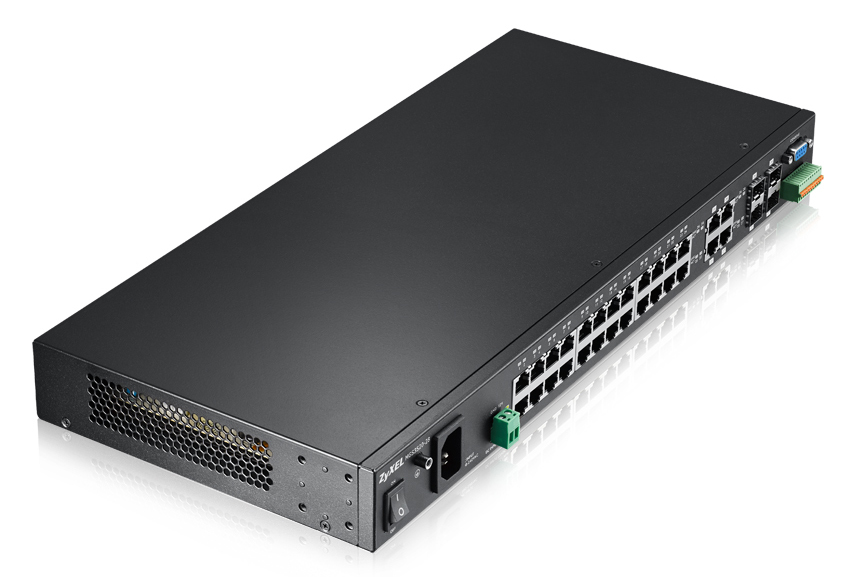

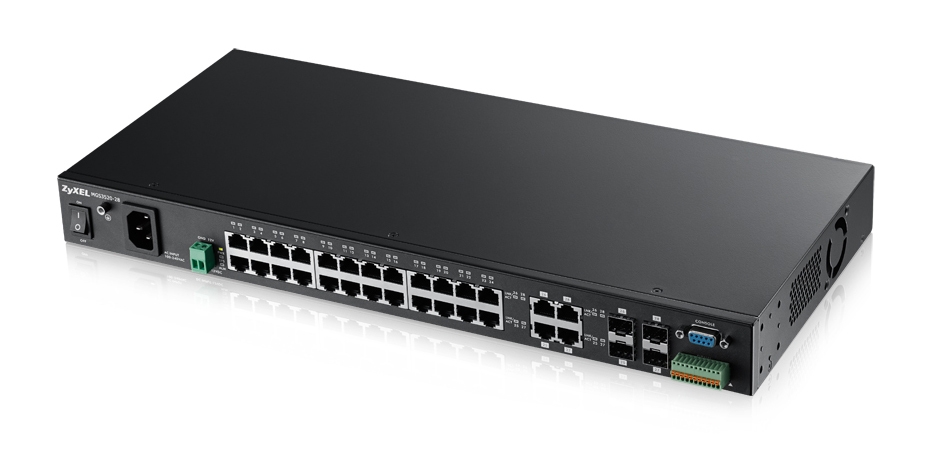

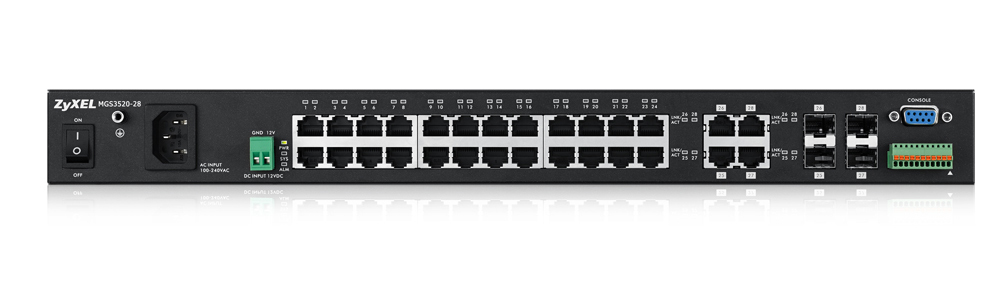

Zyxel MGS3520-28 Managed L2 Gigabit Ethernet (10/100/1000) Black

Zyxel MGS3520-28 Managed L2 Gigabit Ethernet (10/100/1000) Black

Model MGS3520-28Part no. MGS3520-28-EU01V1FEAN 4718937582198

48 specifications

Weight3.09 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table16000 entries

See all specifications

Overview

Weight: 3.09 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 16000 entries

Brand: Zyxel
Category: Network Switch
Model: MGS3520-28
Part numbers: MGS3520-28-EU01V1F, 3175
EAN / UPC: 4718937582198
Also known as: Zyxel MGS3520-28 Managed L2 Gigabit Ethernet (10/100/1000) Black

Specifications

48 specifications in 14 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Throughput	47.64 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SSH, SSH-2, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Safety	LVD: EN609501: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013

Power

Specification	Value
AC input voltage	100 - 240 V
Input voltage	36 - 75 V

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	270 mm
Height	44 mm
Weight	3.09 kg

Packaging data

Specification	Value
Package width	500 mm
Package depth	283 mm
Package height	71 mm
Package weight	3.64 kg

Certificates

Specification	Value
Certification	CE EN55022: 2010 + AC: 2011 EN61000-3-2: 2006 + A1: 2009 + A2: 2009 EN61000-3-3: 2013 EN55024: 2010 AS/NZS CISPR 22: 2009 + A1: 2010 FCC Part 15, subpart B ICES-003 Issue 5 RoHS

Logistics data

Specification	Value
Country of origin	China
