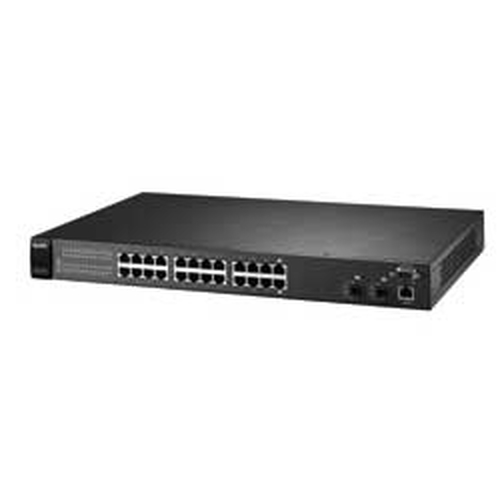

Zyxel MGS-3712F Managed
Model MGS-3712FPart no. 91-010-167001BEAN 4718937507771
25 specifications
- Speed1 Gbit/s
- Weight3.4 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- Networking standardsIEEE 802.3
- Supported data transfer rates10/100/1000 Mbps
Overview
- Speed
- 1 Gbit/s
- Weight
- 3.4 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Networking standards
- IEEE 802.3
- Supported data transfer rates
- 10/100/1000 Mbps
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MGS-3712F
- Part numbers
- 91-010-167001B, 91-010-167010B, 91-010-167024B, 3201
- EAN / UPC
- 4718937507771
- Also known as
- Zyxel MGS-3712F Managed
Specifications
25 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 8 |
| SFP/SFP+ slots quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 215 x 44.45 mm |
| Non-operating relative humidity (non-condensing) | 10 - 99% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | 10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.4 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE EMC |
