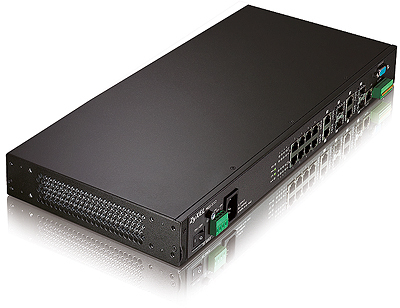

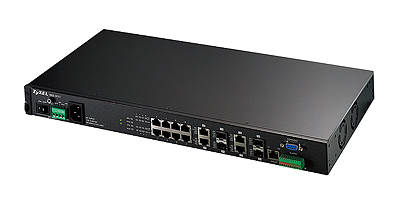

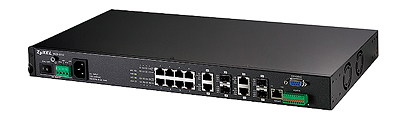

Zyxel MGS-3712 Managed L2

Zyxel MGS-3712 Managed L2

Model MGS-3712Part no. 91-010-166010BEAN 4718937571369

38 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Weight3.4 kg
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Weight
3.4 kg
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
Brand
Zyxel
Model
MGS-3712
Part numbers
91-010-166010B, 91-010-166024B, 91-010-166001B, MGS3700-12C-EU01V1F
EAN / UPC
4718937571369
Also known as
Zyxel MGS-3712 Managed L2

Specifications

38 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2
Web-based managementYes
MIB supportRFC1213 MIB II, RFC1493, RFC1643, RFC1757 RMON, RFC2011 IP MIB, RFC2012 TCP MIB, RFC2013 UDP MIB, RFC2674 VLAN MIB, RFC2925 PING-MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Combo SFP ports quantity4
SFP/SFP+ slots quantity4

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes

Data transmission

MAC address table16000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity24 Gbit/s
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes

Design

StackableYes

Performance

Mean time between failures (MTBF)320302 h

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Data transfer rate17.8 Mbit/s
Dimensions (WxDxH)438 x 225 x 44.5 mm
Connectivity technologyWired
Networking featuresGigabit Ethernet
Power requirements100 - 240 V AC, 50/60 Hz

Operational conditions

Operating temperature (T-T)0 - 65 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)10 - 99%

Weight & dimensions

Weight3.4 kg

Certificates

CertificationUL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1, EU RoHS
