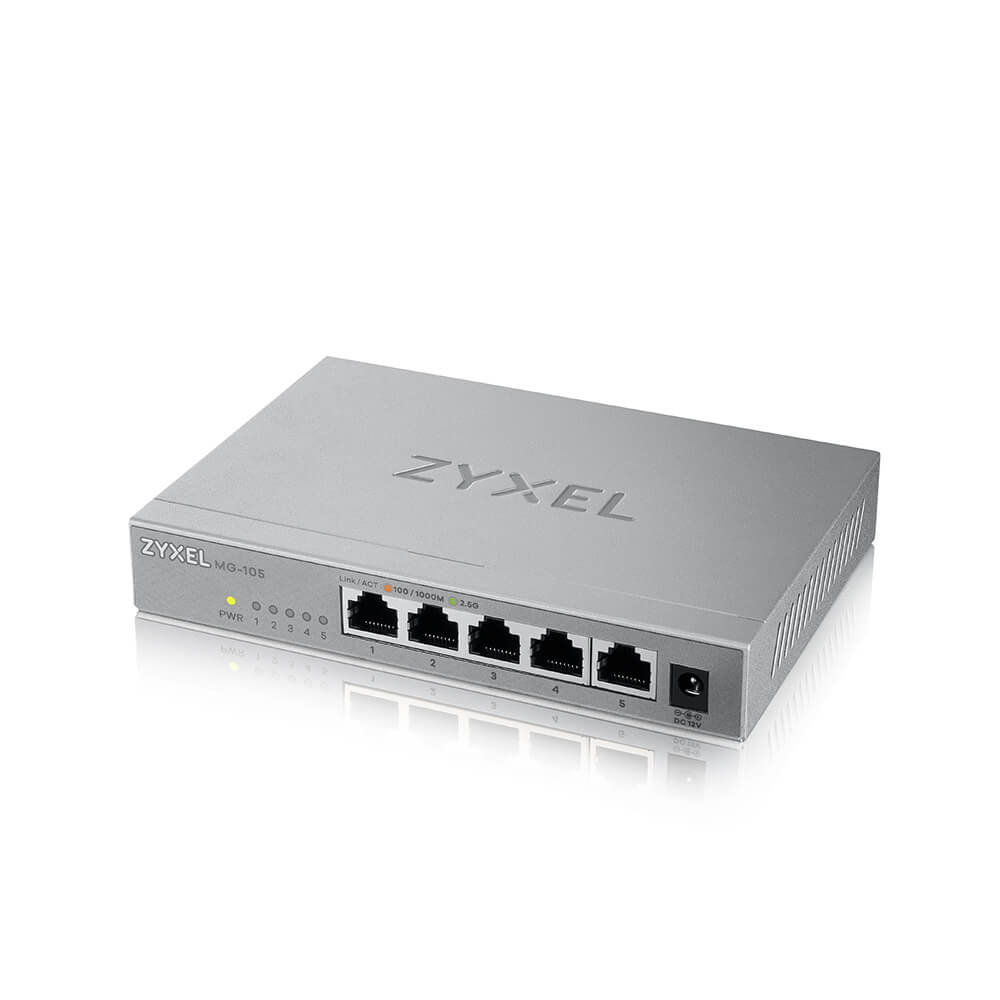

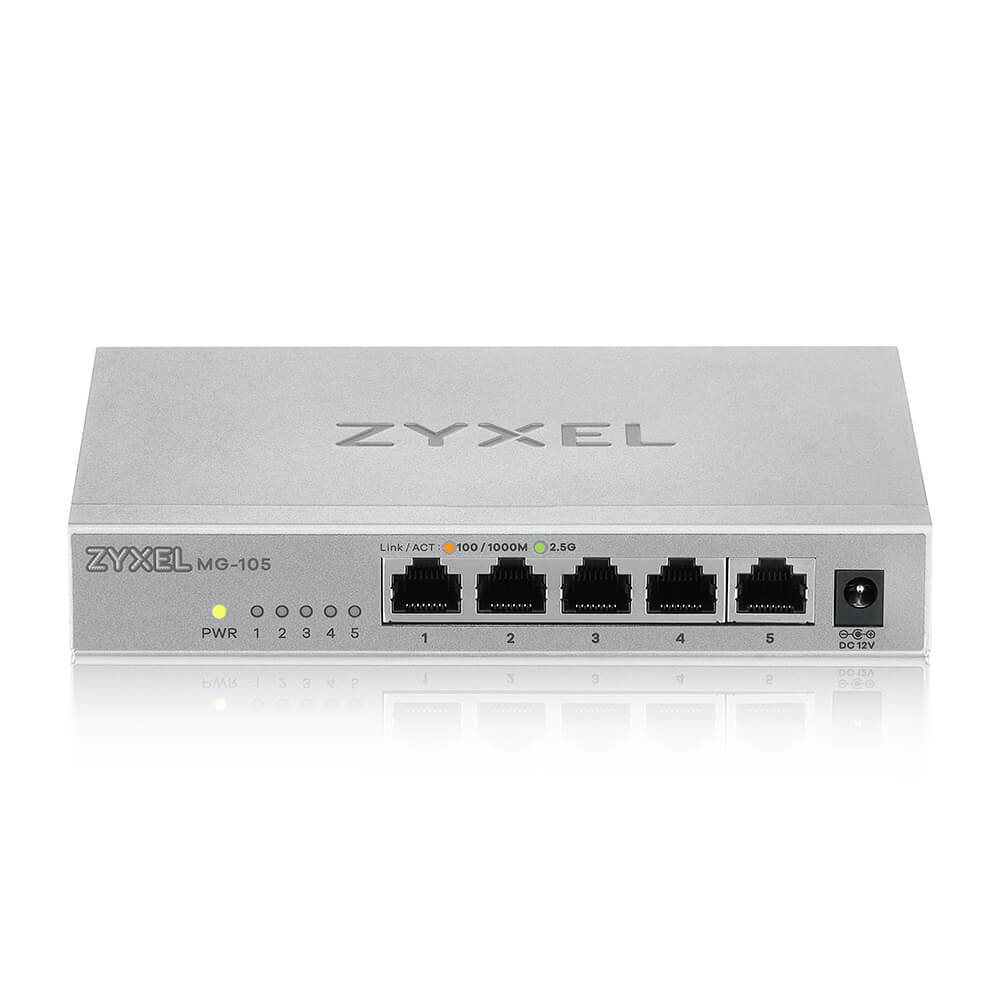

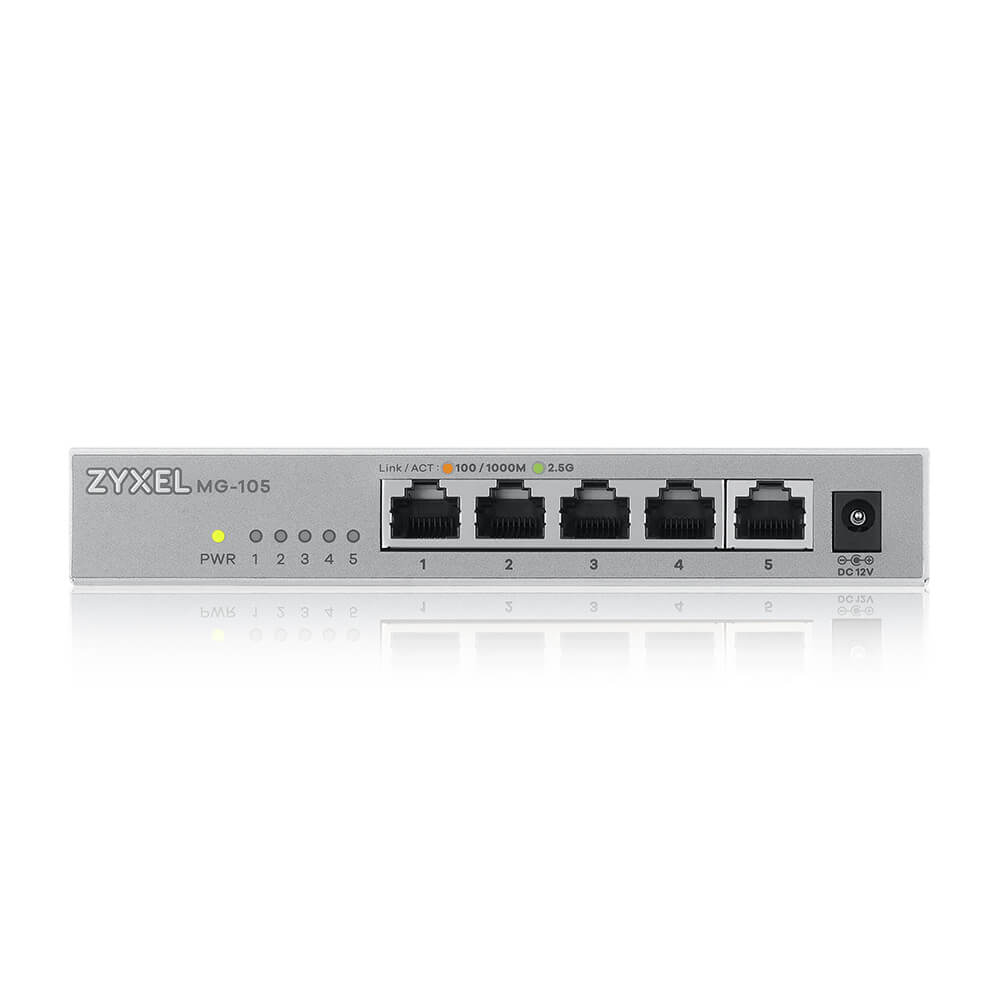

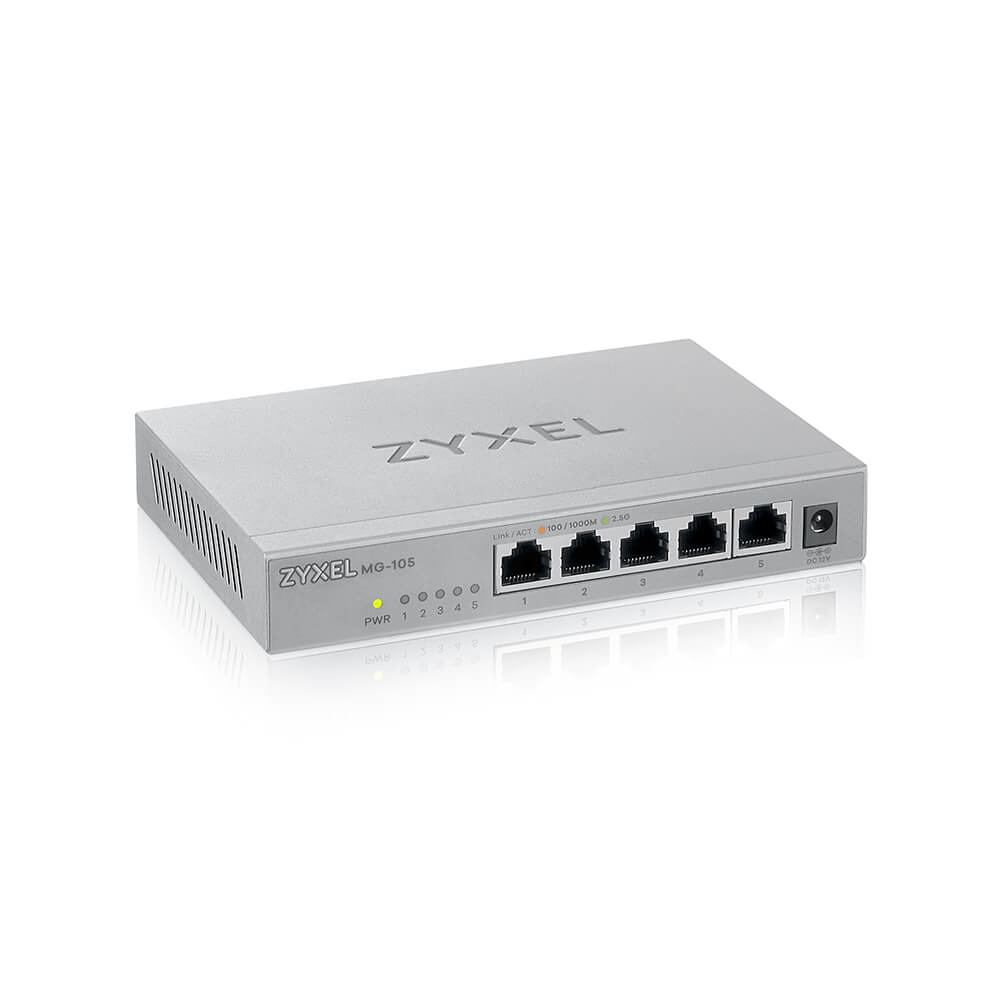

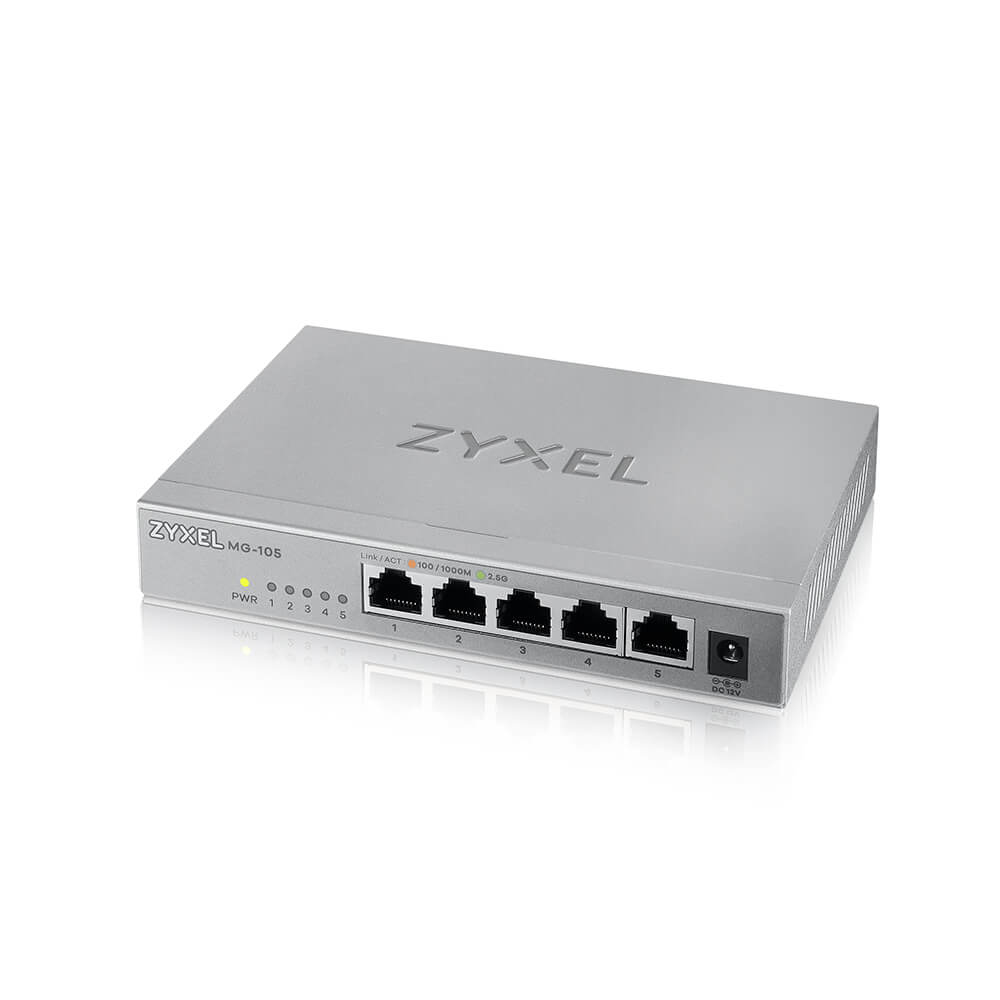

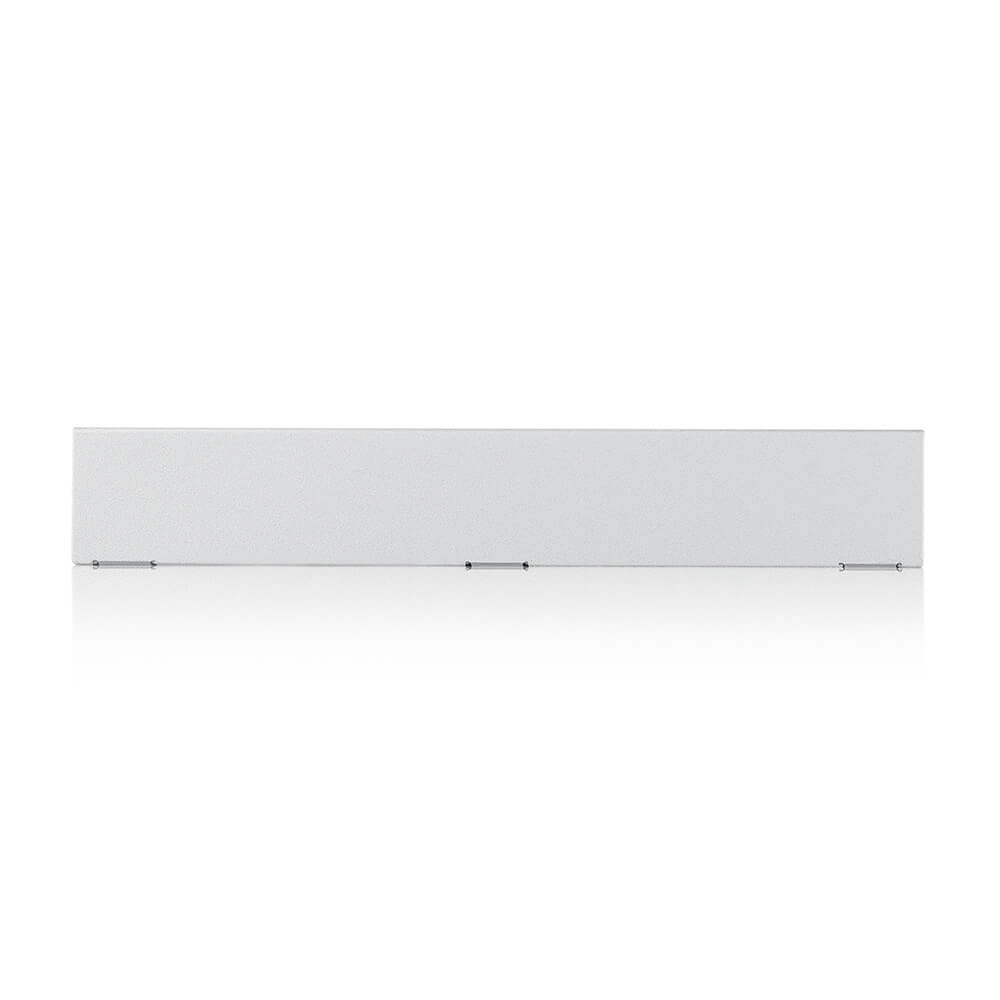

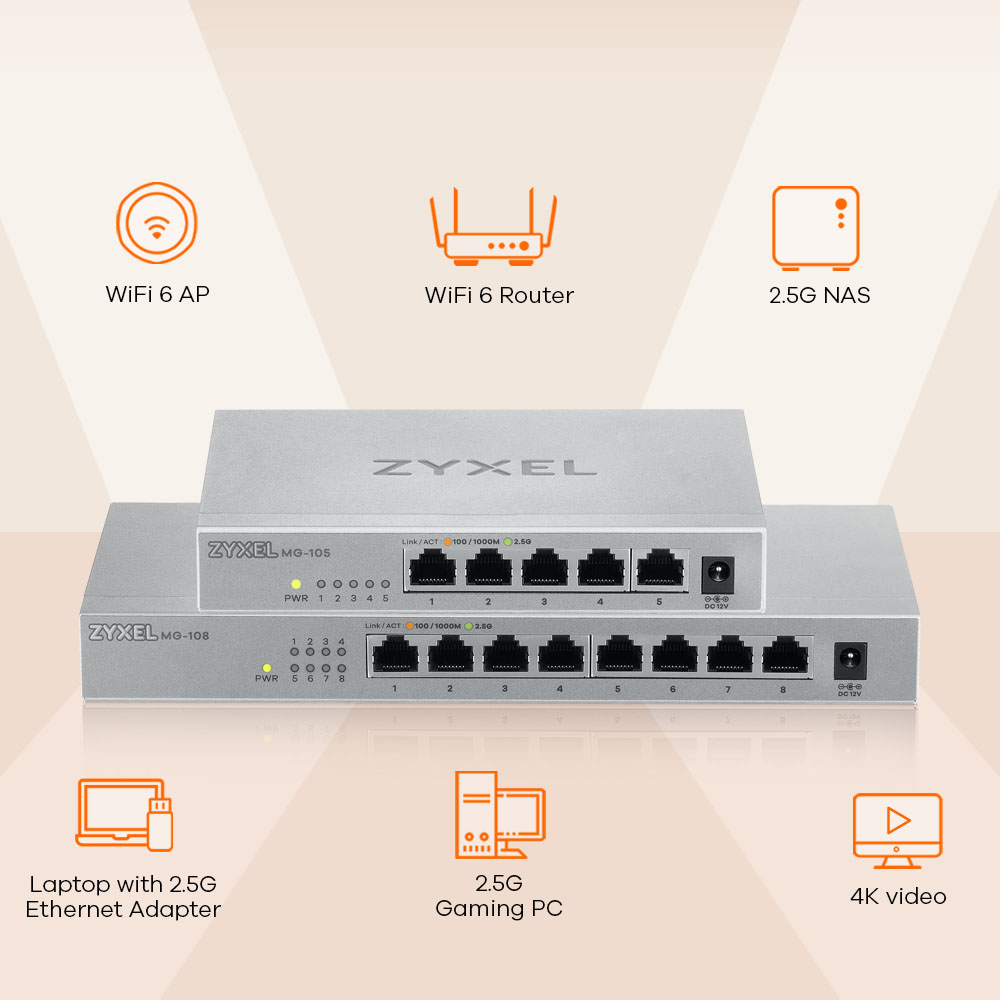

MG-105 Unmanaged
2.5G Ethernet (100/1000/2500) Steel
Model MG-105Part no. MG-105-ZZ0101FEAN 760559127855
45 specifications
- Weight460 g
- ColourSteel
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 460 g
- Colour
- Steel
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MG-105
- Part number
- MG-105-ZZ0101F
- EAN / UPC
- 760559127855, 4718937620203
- Also known as
- Zyxel MG-105 Unmanaged 2.5G Ethernet (100/1000/2500) Steel
Specifications
45 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |

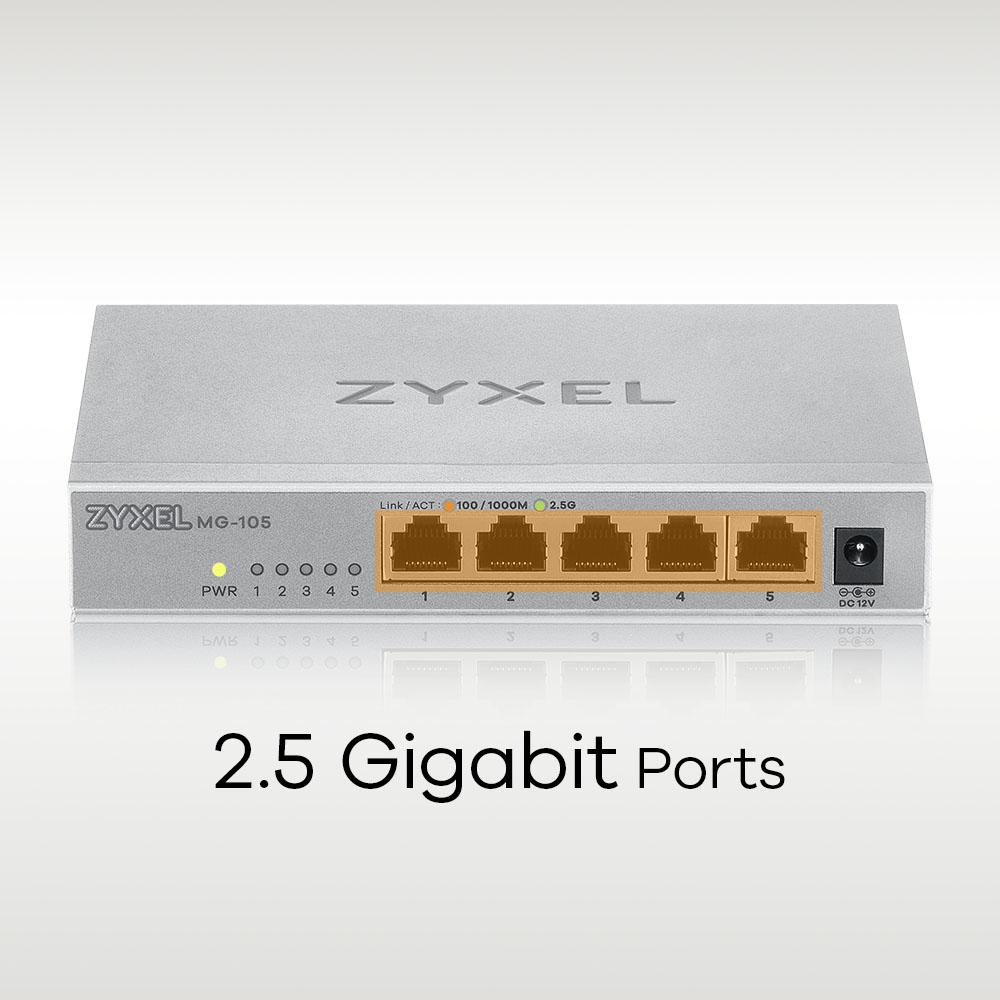

| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Steel |
| LED indicators | Yes |

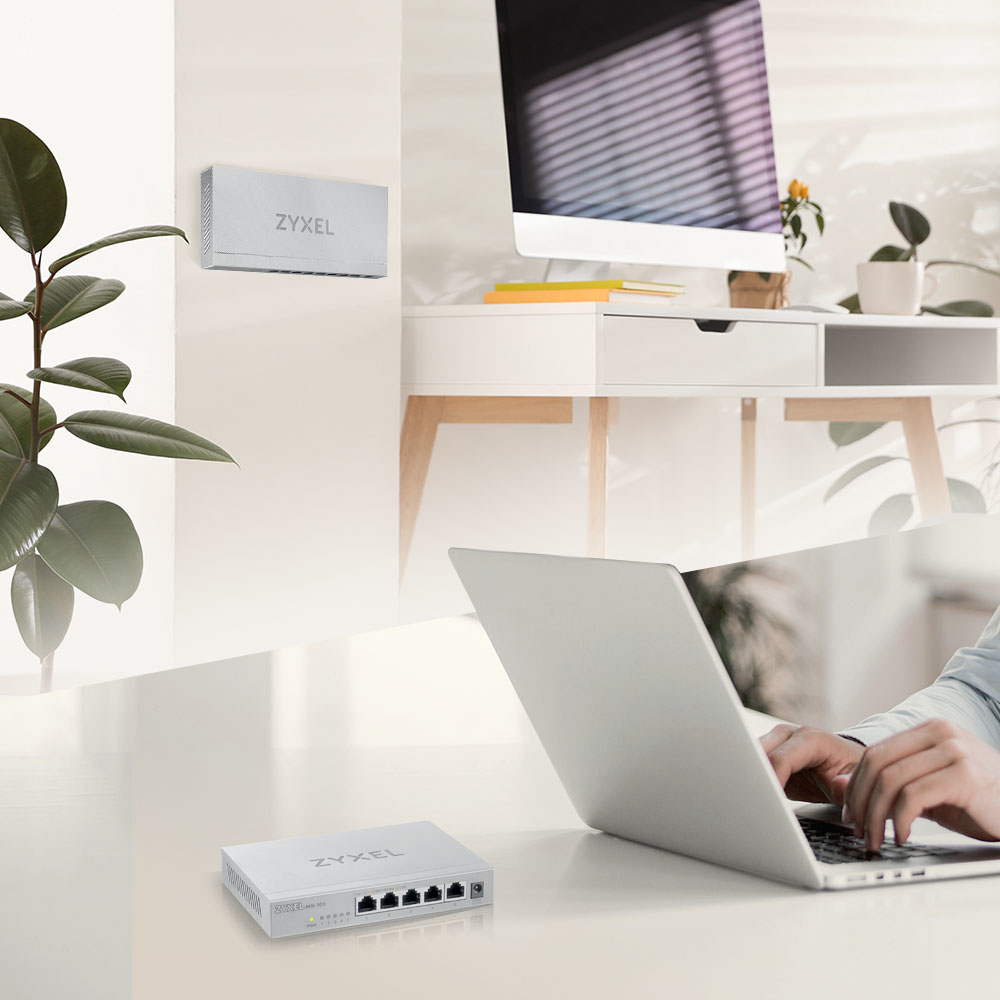

| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 9.34 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Weight | 460 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 215 mm |
| Package depth | 133 mm |
| Package height | 79 mm |
| Package weight | 919.6 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | CE, EAC, FCC, BSMI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
