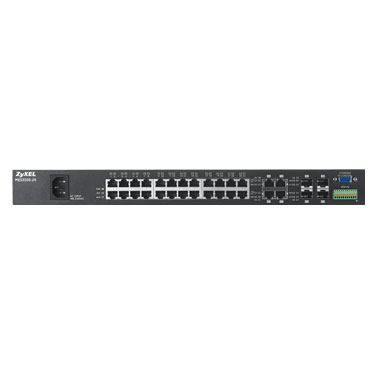

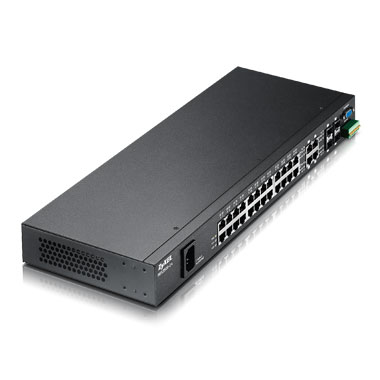

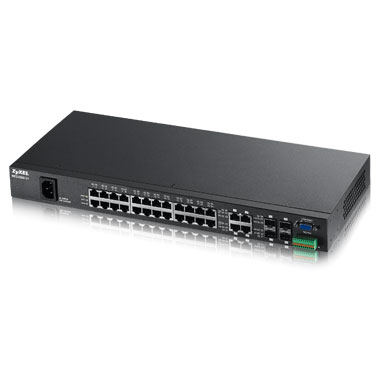

Zyxel MES3500-24F Managed L2 Black
Model MES3500-24FEAN 7605591207024
46 specifications
- Weight2.6 kg
- ColourBlack
- Switch typeManaged
- Combo SFP ports quantity4
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 2.6 kg
- Colour
- Black
- Switch type
- Managed
- Combo SFP ports quantity
- 4
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MES3500-24F
- Part numbers
- MES3500-24F, MES3500-24F-GB01V1F, MES3500-24F-EU01V1F
- EAN / UPC
- 7605591207024, 4718937566501, 4718937567621, 4718937566518 +1 more
- Also known as
- Zyxel MES3500-24F Managed L2 Black
Specifications
46 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC 1213 MIB II |
Ports & interfaces
| Specification | Value |
|---|---|
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 12.8 Gbit/s |
| Number of queues | 8 |
| Packet buffer memory | 0.32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Telnet, DHCP |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 14 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44.5 mm |
| Weight | 2.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 495 mm |
| Package depth | 286 mm |
| Package height | 71 mm |
| Package weight | 3.45 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI CE FCC EN 60950-1 IEC 60950-1 EU RoHS |
