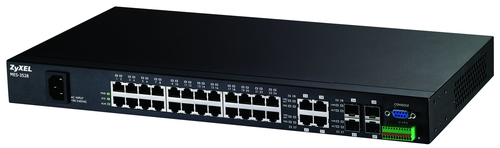

Zyxel MES-3528 Managed L2 Fast Ethernet (10/100) 1U Black
Model MES-3528Part no. 91-010-211001BEAN 4718937511129
52 specifications
- Type1U
- Weight2.63 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 2.63 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Zyxel
- Category
- Network Switch
- Model
- MES-3528
- Part numbers
- 91-010-211001B, 91-010-211003B
- EAN / UPC
- 4718937511129, 4718937562183
- Also known as
- Zyxel MES-3528 Managed L2 Fast Ethernet (10/100) 1U Black
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| MIB support | SNMP MIB II (RFC 1213), RFC 1157 SNMP v1, RFC 1493 Bridge MIBs, RFC 1643 Ethernet MIBs, RFC 1155 SMI, RFC 2674 SNMPv2, SNMPv2c, RFC 1757 RMON, SNMPv2, SNMPv2c, RFC 2012 SNMPv2 MIB, RFC 2013 SNMPv2 MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 12.8 Gbit/s |
| Number of queues | 8 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Safety | UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Electromagnetic compatibility | FCC Part 15 (Class A), CE EMC (Class A) |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.34 A |
| Power consumption (typical) | 20 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44.5 mm |
| Weight | 2.63 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
