Zyxel IES-708-22A Managed L2 Black
Model IES-708-22APart no. 91-004-759001B
39 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Zyxel
- Category
- Network Switch
- Model
- IES-708-22A
- Part number
- 91-004-759001B
- Also known as
- Zyxel IES-708-22A Managed L2 Black
Specifications
39 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | SNMP MIB II (RFC1213), RFC1493, RFC1643 Ethernet MIB, RFC1757(RMON), RFC2674, RFC4319 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.3, IEEE 802.3u |
| 10G support | No |
| IP routing | Yes |
| Rate limiting | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2, IGMP v1/v2 |
| Switching protocols | IPv4 |
| Data link protocols | FTP/TFTP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 12.84 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | CLI |
| Dimensions (WxDxH) | 270 x 350 x 44.45 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
| Power requirements | 100/240V |
| Size (imperial) | 48.3 cm (19") |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, FCC, EN, IEC |
What people say
Reviews & ratings
Zyxel IES-708-22A Managed L2 Black
No reviews yet
Be the first to tell others how Zyxel IES-708-22A Managed L2 Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zyxel IES-708-22A Managed L2 Black
All network switch comparisons- Zyxel IES-708-22A Managed L2 Black vsZyxel VES-1616FE-53A Managed L2 WhiteCompare specs
- Zyxel IES-708-22A Managed L2 Black vsZyxel XGS4728F Managed L3 Gigabit Ethernet (10/100/1000) BlackCompare specs
- Zyxel IES-708-22A Managed L2 Black vsZyxel MS-7206S Managed L2 Power over Ethernet (PoE) BlackCompare specs
- Zyxel IES-708-22A Managed L2 Black vsZyxel ES2108 network switch Unmanaged L2 BlackCompare specs
- Zyxel IES-708-22A Managed L2 Black vsLevelOne GSW-5270 network switch Managed 1U GreyCompare specs

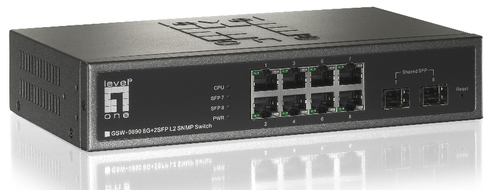

- Zyxel IES-708-22A Managed L2 Black vsLevelOne GSW-0890 network switch Managed L2 BlackCompare specs
