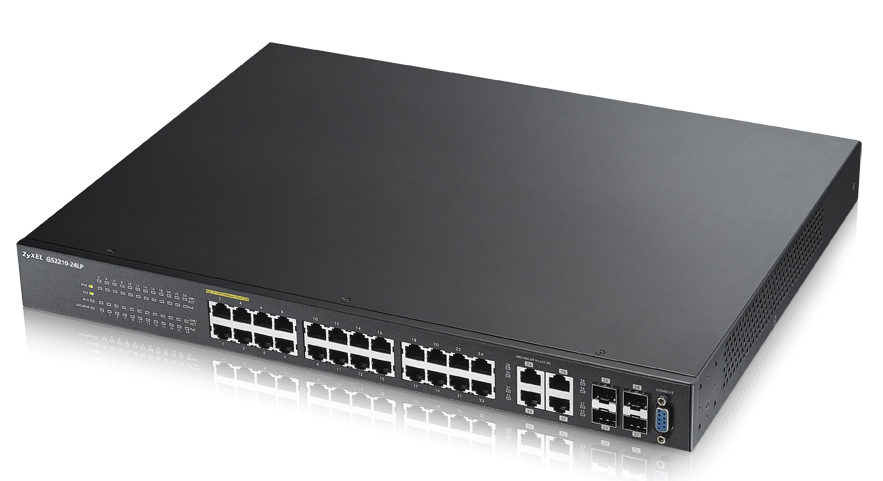

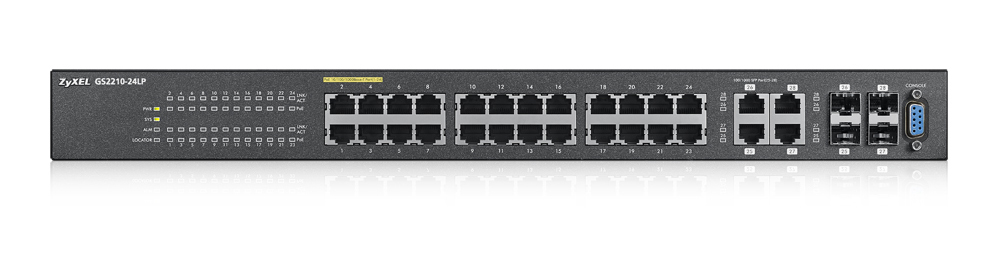

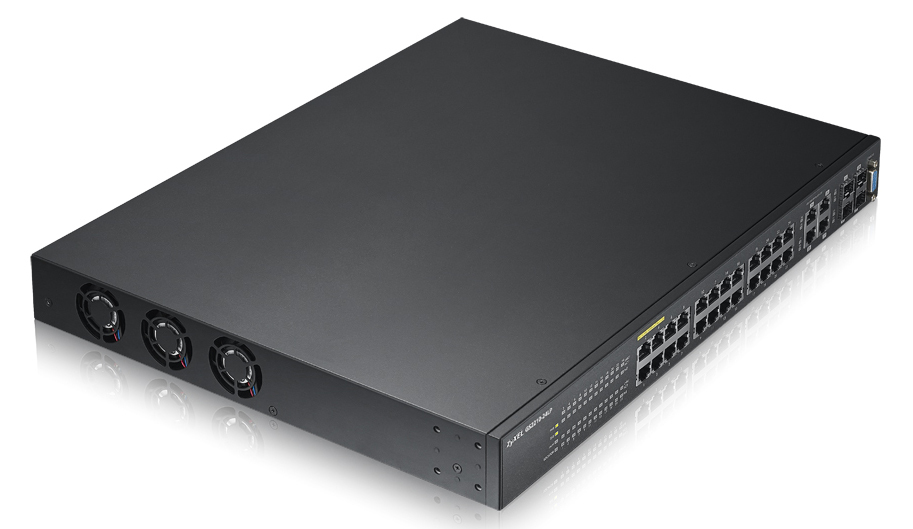

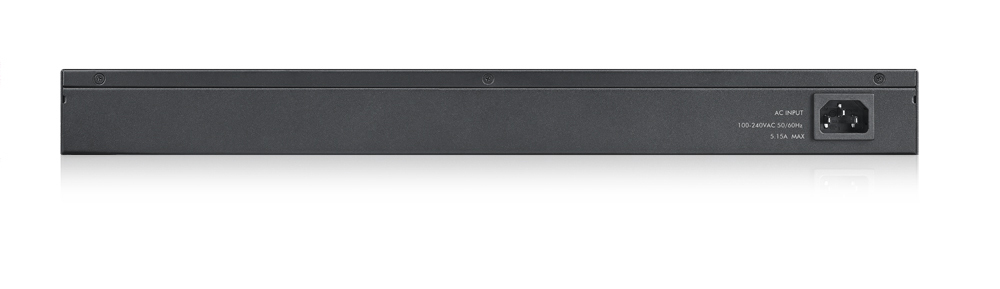

Zyxel GS2210-24LP Managed L2 Gigabit Ethernet (10/100/1000) 1U

Zyxel GS2210-24LP Managed L2 Gigabit Ethernet (10/100/1000) 1U

Model GS2210-24LPPart no. GS2210-24LP-GB0101FEAN 4718937591992

61 specifications

Noise54 dB
Type1U
Weight4.4 kg
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
Port mirroringYes

See all specifications

Overview

Noise: 54 dB
Type: 1U
Weight: 4.4 kg
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Port mirroring: Yes

Brand: Zyxel
Category: Network Switch
Model: GS2210-24LP
Part numbers: GS2210-24LP-GB0101F, 3189, XGS2210-24LP-EU0101F
EAN / UPC: 4718937591992, 4718937592005, 760559123994
Also known as: Zyxel GS2210-24LP Managed L2 Gigabit Ethernet (10/100/1000) 1U

Specifications

61 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
ARP inspection	Yes
Traffic shaping	Yes
MIB support	RFC 2464, RFC 4291, RFC 4213, RFC 4443, RFC 1981, RFC 5095, RFC 4861,

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring	Yes
IP routing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
MAC address auto-learning supported	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	1000 entries
Switching capacity	56 Gbit/s
Throughput	41.67 Mpps
Number of queues	8

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	MAC-based authentication
BPDU filtering/protection	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SNMP, SSH, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	160000 entries

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Reset button	Yes
Safety	LVD, BSMI
Electromagnetic compatibility	FCC 15 (A), CE (A), BSMI

Performance

Specification	Value
Noise level	54 dB
Mean time between failures (MTBF)	616247 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	180 W
Power consumption (max)	253.4 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	330 mm
Height	44.5 mm
Weight	4.4 kg

Packaging content

Specification	Value
Cables included	AC

Packaging data

Specification	Value
Package width	583 mm
Package depth	451 mm
Package height	98 mm
Package weight	5.58 kg
