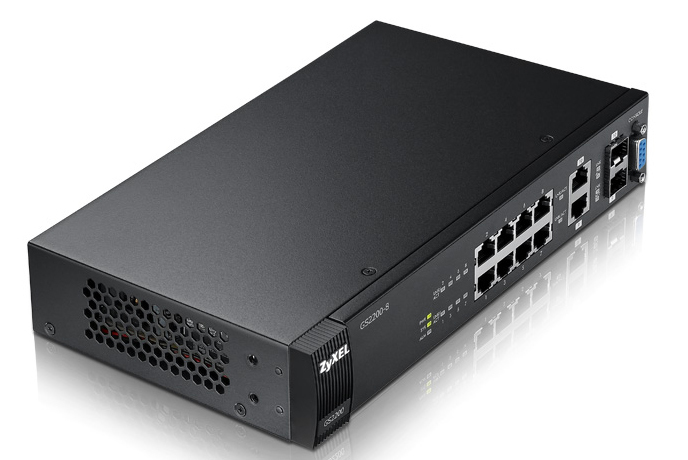

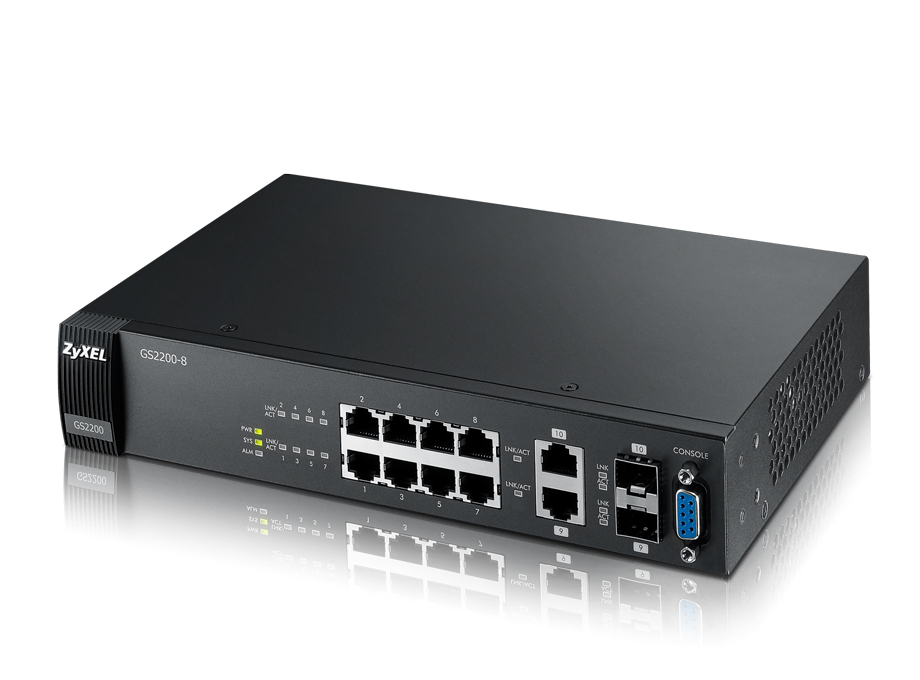

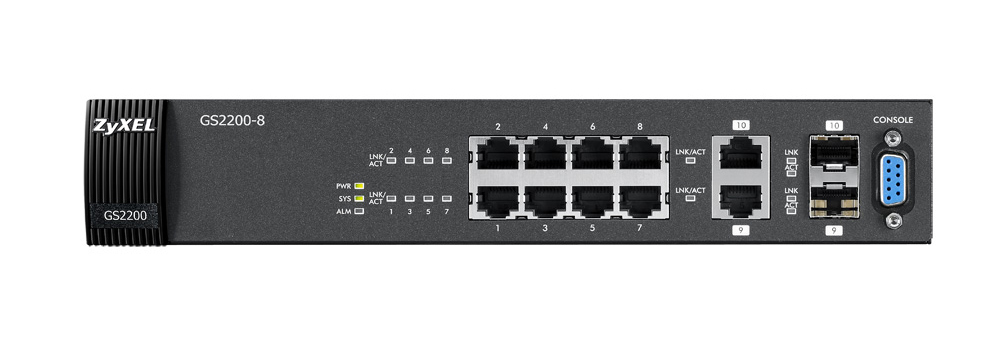

Zyxel GS2200-8 Managed L2 1U Black

Zyxel GS2200-8 Managed L2 1U Black

Model GS2200-8EAN 7605591194300

51 specifications
  • Speed1 Gbit/s
  • Type1U
  • Weight1.34 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
See all specifications

Overview

Speed
1 Gbit/s
Type
1U
Weight
1.34 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
Brand
Zyxel
Model
GS2200-8
Part numbers
GS2200-8, GS2200-8-EU0101F, GS2200-8-GB0101F
EAN / UPC
7605591194300, 4718937565276, 5053959459042, 5054484418580 +5 more
Also known as
Zyxel GS2200-8 Managed L2 1U Black

Specifications

51 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC 1066, RFC 1213, RFC 2011, 2012, 2013, RFC 1493, RFC 2674, RFC 1643, RFC 2358, RFC 1757, RFC 2819, 2925, RFC 3621

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Gigabit Ethernet (copper) ports quantity8
Combo SFP ports quantity2
SFP/SFP+ slots quantity2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs1000

Data transmission

MAC address table16000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity20 Gbit/s
Maximum data transfer rate1 Gbit/s

Security

DHCP featuresDHCP client
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Static port securityYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsYes

Power

Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.3 A
Power consumption (typical)12.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Packet transfer speed14.9 Mpps
Power LEDYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width250 mm
Depth150 mm
Height44 mm
Weight1.34 kg

Certificates

CertificationUL, CSA, CE-LVD, FCC, CE, BSMI, RoHS
