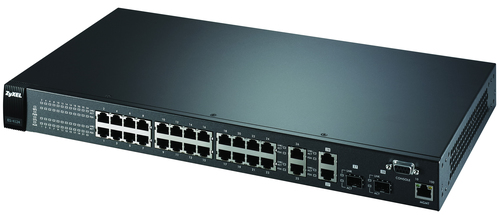

Zyxel GS2024 Managed L2
Model GS2024Part no. 91-010-218004BEAN 091010218004
34 specifications
- Speed1 Gbit/s
- Weight4 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity1
- Port mirroringYes
- MAC address table8000 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 4 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 1
- Port mirroring
- Yes
- MAC address table
- 8000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS2024
- Part number
- 91-010-218004B
- EAN / UPC
- 091010218004, 4718937562398, 5052217102171
- Also known as
- Zyxel GS2024 Managed L2
Specifications
34 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | RMON 1, RMON 2, RMON 3, RMON 9, Telnet CLI, SNMP v2c |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 300 x 44.5 mm |
| Authentication method | 802.1x |
| Packet transfer speed | 1488000pps |
| Power requirements | 100-240VAC, 50/60Hz |
| I/O ports | 24 x 100/1000Base-T 1 x D-Sub 9 pin F(DCE) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4 kg |
