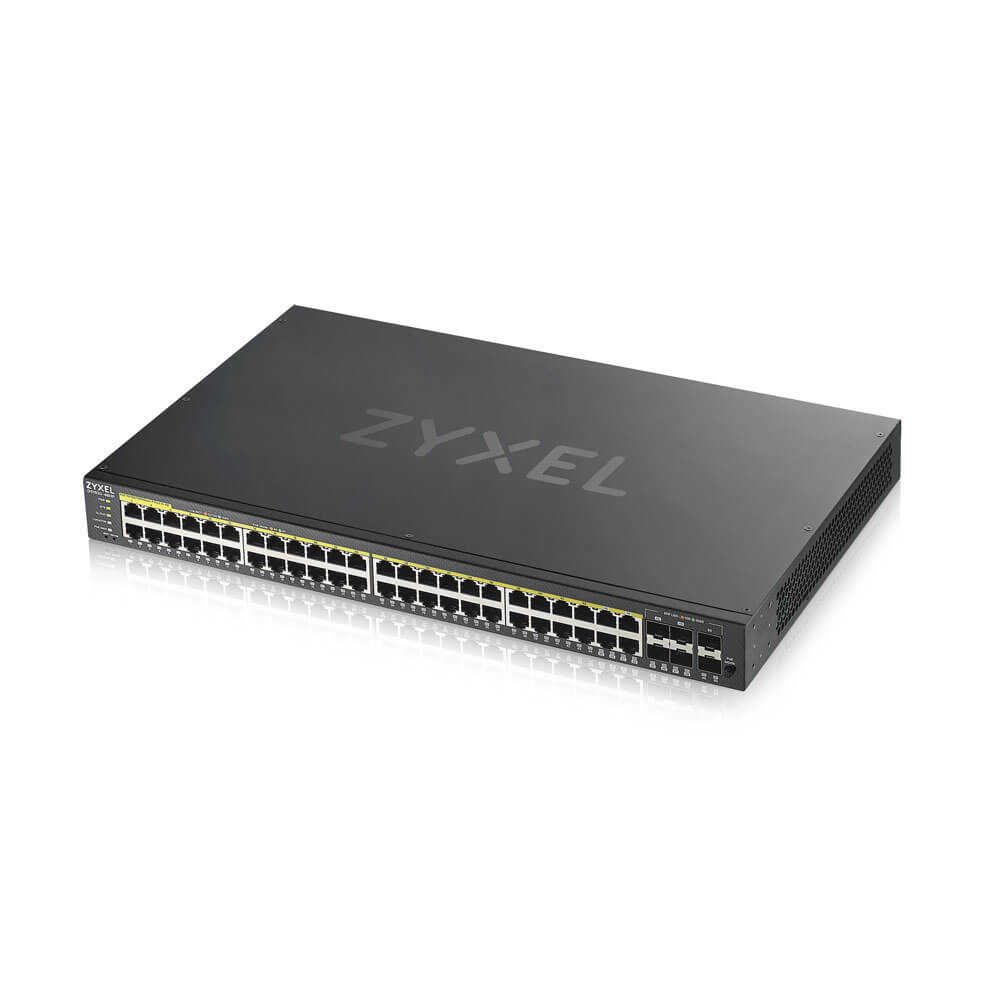

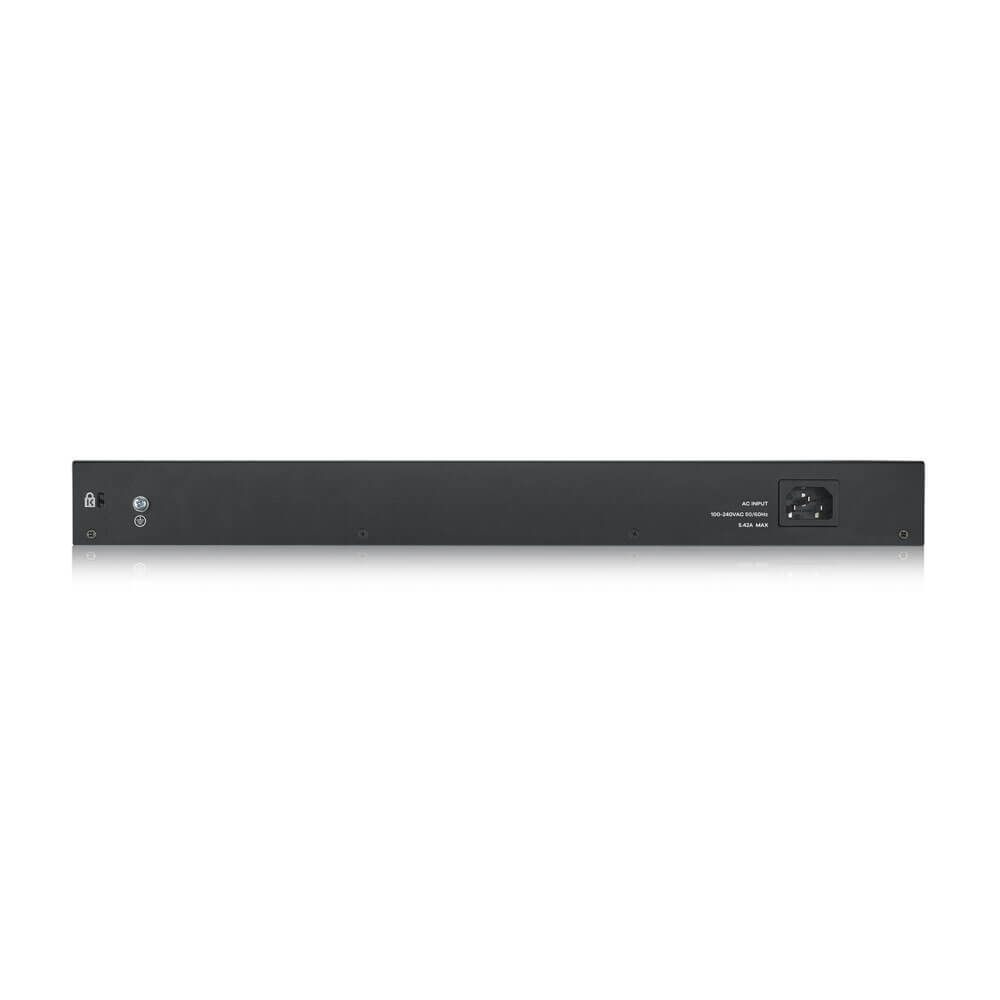

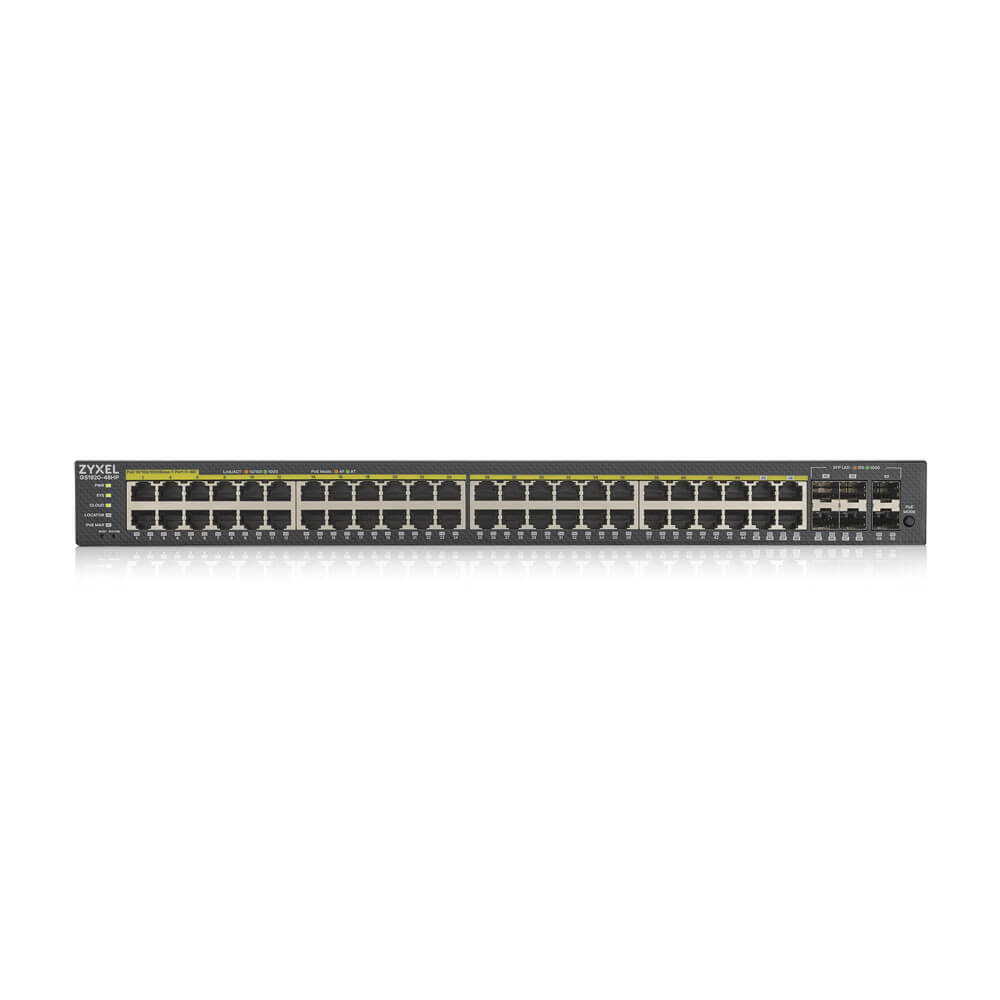

Zyxel GS1920-48HPV2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

GS1920-48HPV2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model GS1920-48HPV2Part no. GS192048HPV2-GB0103FEAN 4718937601974

68 specifications

Memory256 MB
Noise26.5 dB
Weight4.1 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity44

See all specifications

Overview

Memory: 256 MB
Noise: 26.5 dB
Weight: 4.1 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 44

Brand: Zyxel
Category: Network Switch
Model: GS1920-48HPV2
Part numbers: GS192048HPV2-GB0103F, 170511, GS192048HPV2-EU0101F, GS192048HPV2-GB0101F, 4108, GS1920-48HPV2
EAN / UPC: 4718937601974, 4718937601981, 760559125592, 760559127039 +1 more
Also known as: Zyxel GS1920-48HPV2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

68 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Quality of Service (QoS) support	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
SFP module slots quantity	2
Fiber optic connector	SFP

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Flow control support	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	100 Gbit/s
Forwarding rate	74 Mpps
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, Port-based authentication
Authentication type	IEEE 802.1x, RADIUS
CPU defense	Yes
IP-MAC-Port binding	Yes
MAC address filtering	Yes
Password protection	Yes
Queue scheduling algorithms	SPQ, WFQ, Weighted Round Robin (WRR)
Security algorithms	802.1x RADIUS, SNMP, SNMPv3

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	No
Product colour	Black
Safety	LVD, BSMI
Electromagnetic compatibility	FCC 15 A, CE A, BSMI EMC

Performance

Specification	Value
Internal memory	256 MB
Flash memory	32 MB
Noise level	26.5 dB
Mean time between failures (MTBF)	502509 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	474.3 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	48
Total Power over Ethernet (PoE) budget	375 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	1617.36 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	270 mm
Height	44 mm
Weight	4.1 kg

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes

Packaging data

Specification	Value
Package width	616 mm
Package depth	355 mm
Package height	107 mm
Package weight	5.25 kg

Certificates

Specification	Value
Certification	RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
