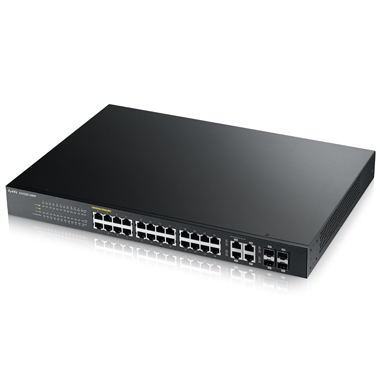

Zyxel GS1920-24HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Zyxel GS1920-24HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model GS1920-24HPEAN 7605591213964

45 specifications

Weight4.83 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportYes
MAC address table16000 entries

See all specifications

Overview

Weight: 4.83 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: Yes
MAC address table: 16000 entries

Brand: Zyxel
Category: Network Switch
Model: GS1920-24HP
Part numbers: GS1920-24HP, GS1920-24HP-EU0101, GS1920-24HP-EU0101F, GS1920-24HP-GB0101F
EAN / UPC: 7605591213964, 617297069124, 4718937577200, 5054629654835 +2 more
Also known as: Zyxel GS1920-24HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

45 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Throughput	41.67 Mpps
Jumbo frames support	Yes
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SSH, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black

Performance

Specification	Value
Mean time between failures (MTBF)	432673 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	476.7 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	375 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	1625.55 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	330 mm
Height	44.5 mm
Weight	4.83 kg

Packaging data

Specification	Value
Package width	583 mm
Package depth	451 mm
Package height	98 mm
Package weight	5.75 kg
