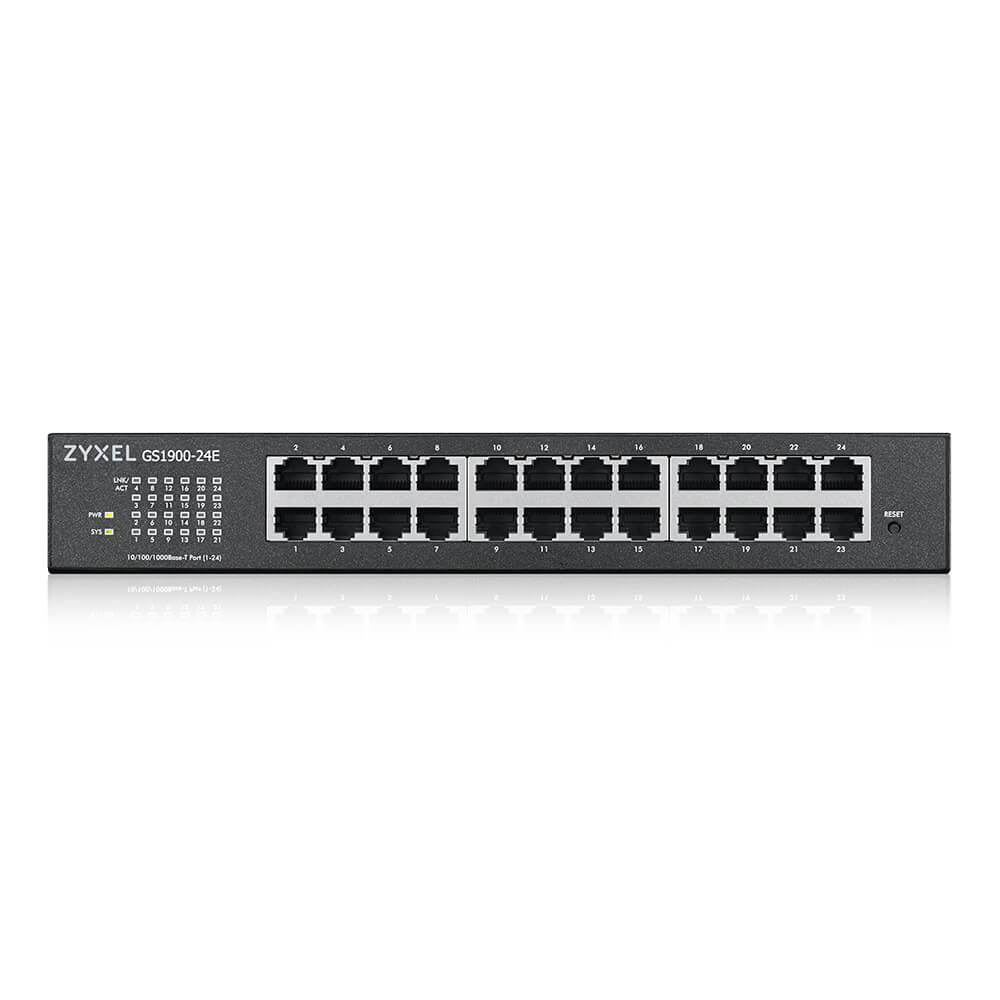

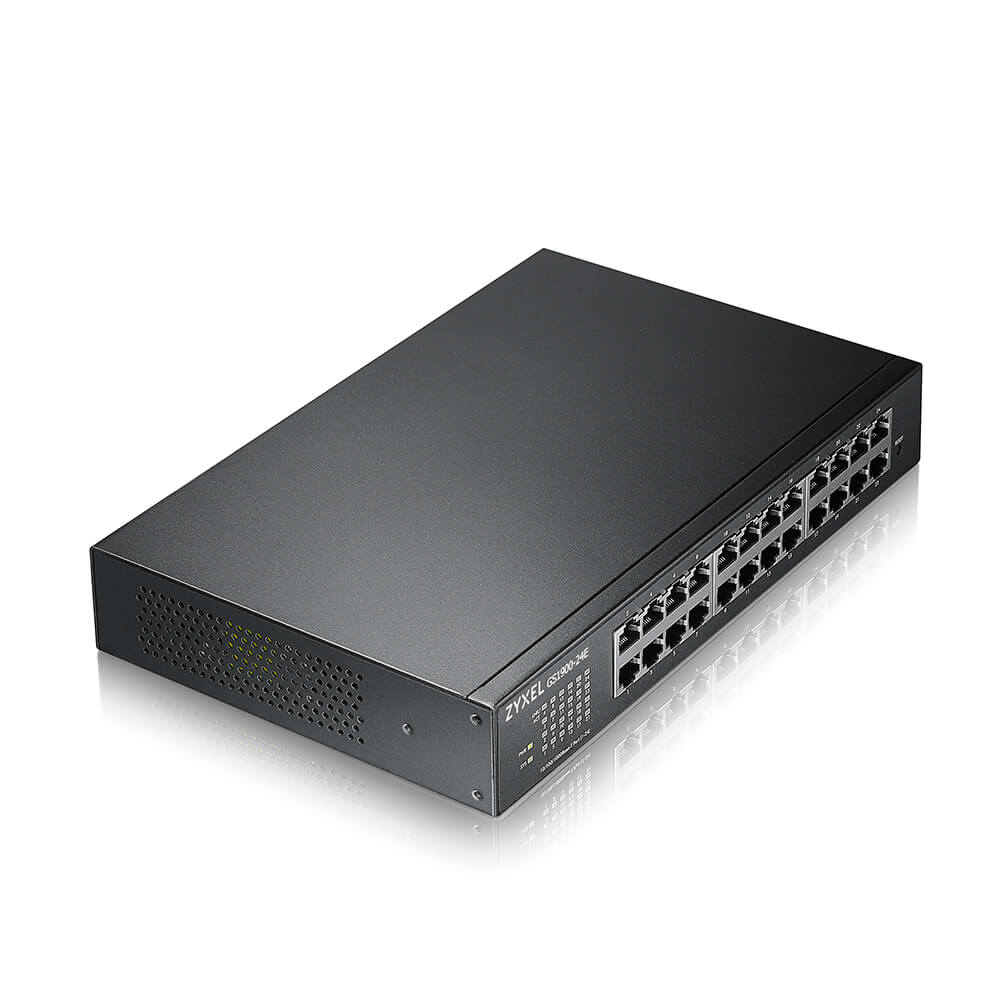

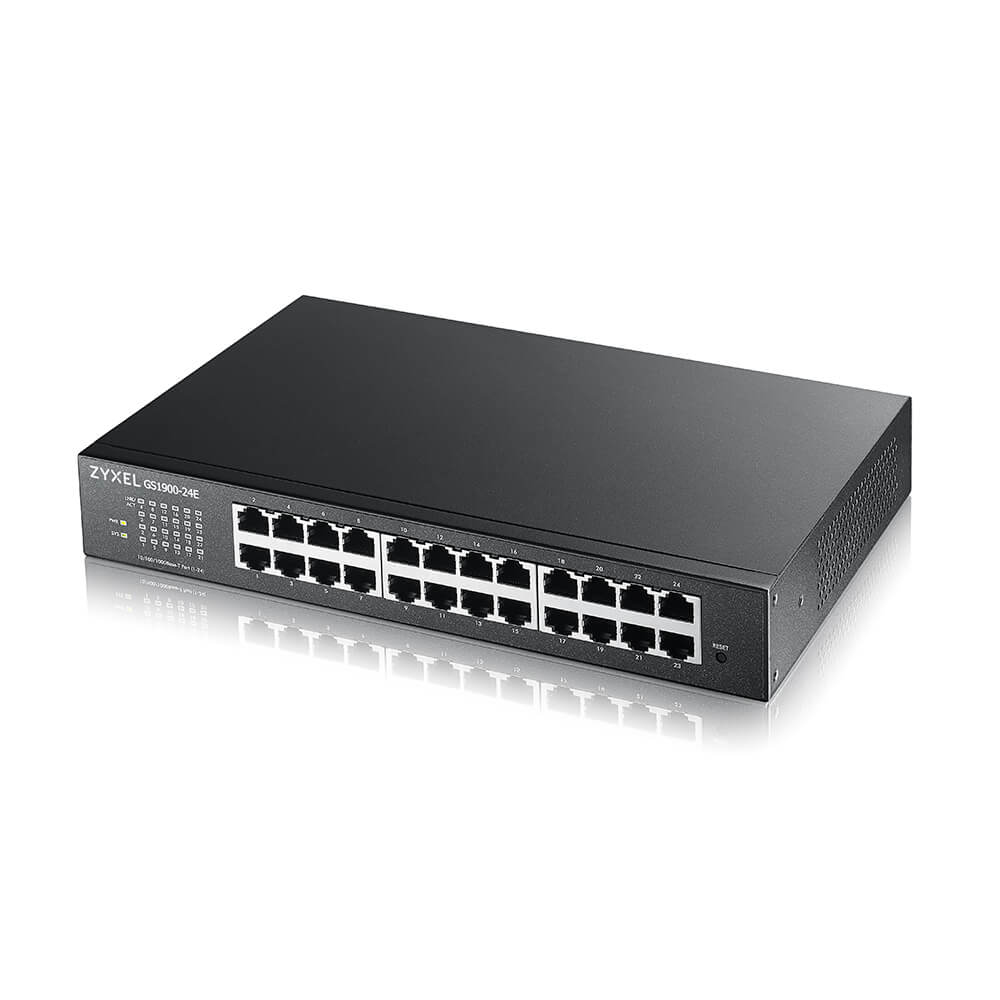

GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Model GS1900-24E-EU0103FEAN 4718937621132
69 specifications
- Type1U
- Weight1.56 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 1.56 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS1900-24E-EU0103F
- Part number
- GS1900-24E-EU0103F
- EAN / UPC
- 4718937621132
- Also known as
- Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
69 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, VLAN mapping |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.525 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Authentication type | RADIUS, TACACS+ |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
| Static port security | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 804.714 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 15.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 51.49 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 267 mm |
| Depth | 162 mm |
| Height | 42 mm |
| Weight | 1.56 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 325 mm |
| Package depth | 223 mm |
| Package height | 71 mm |
| Package weight | 2.05 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
