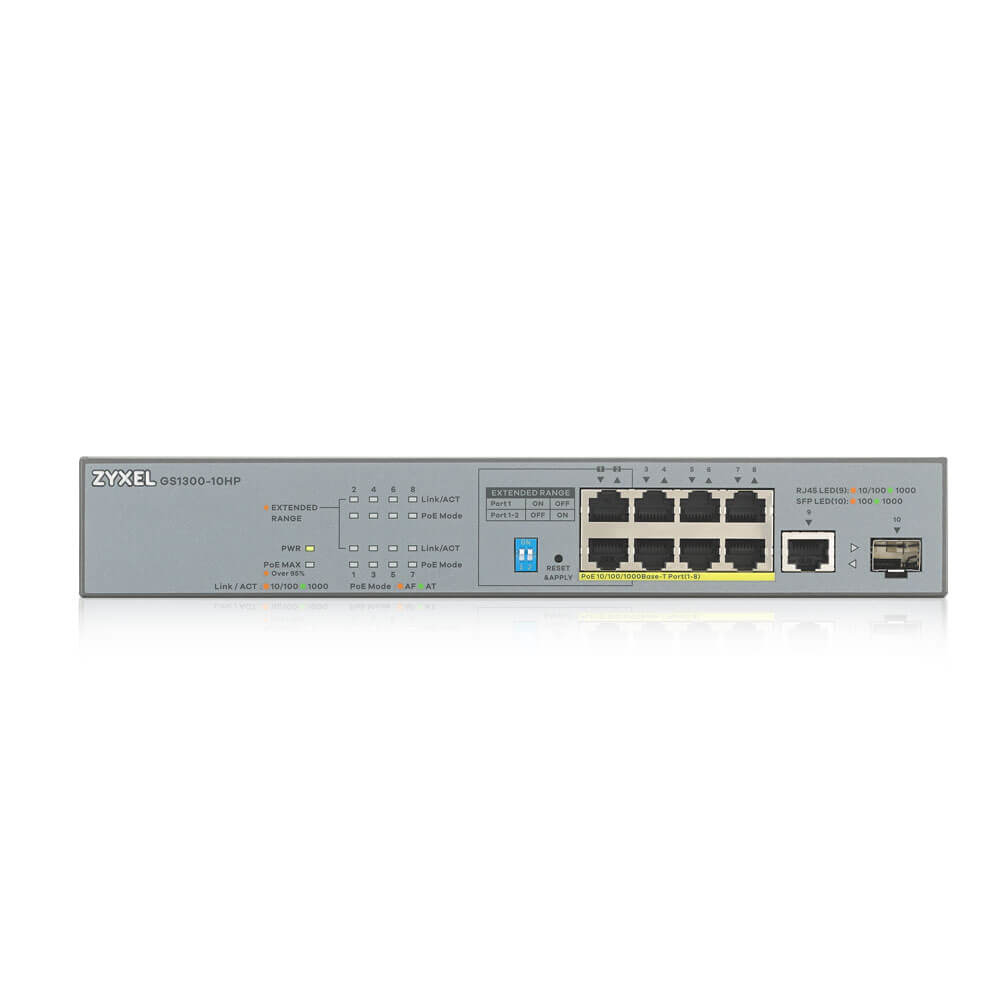

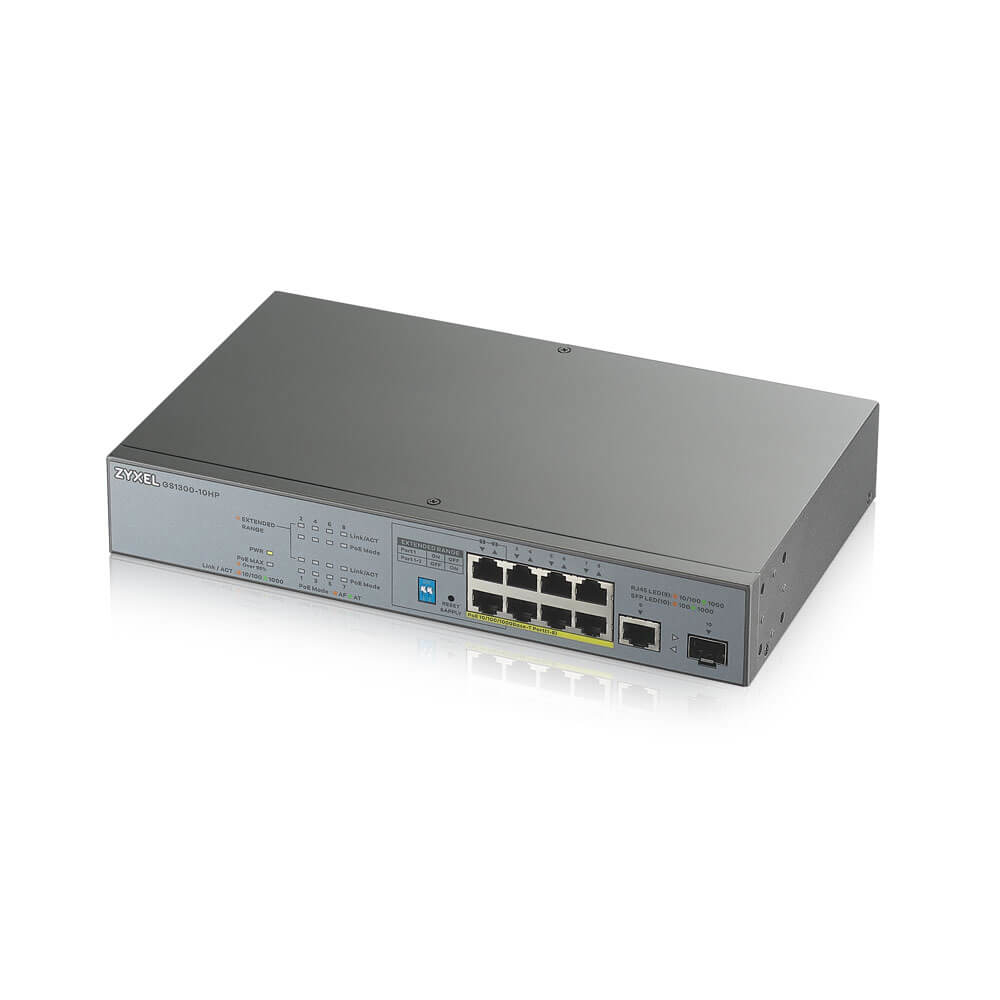

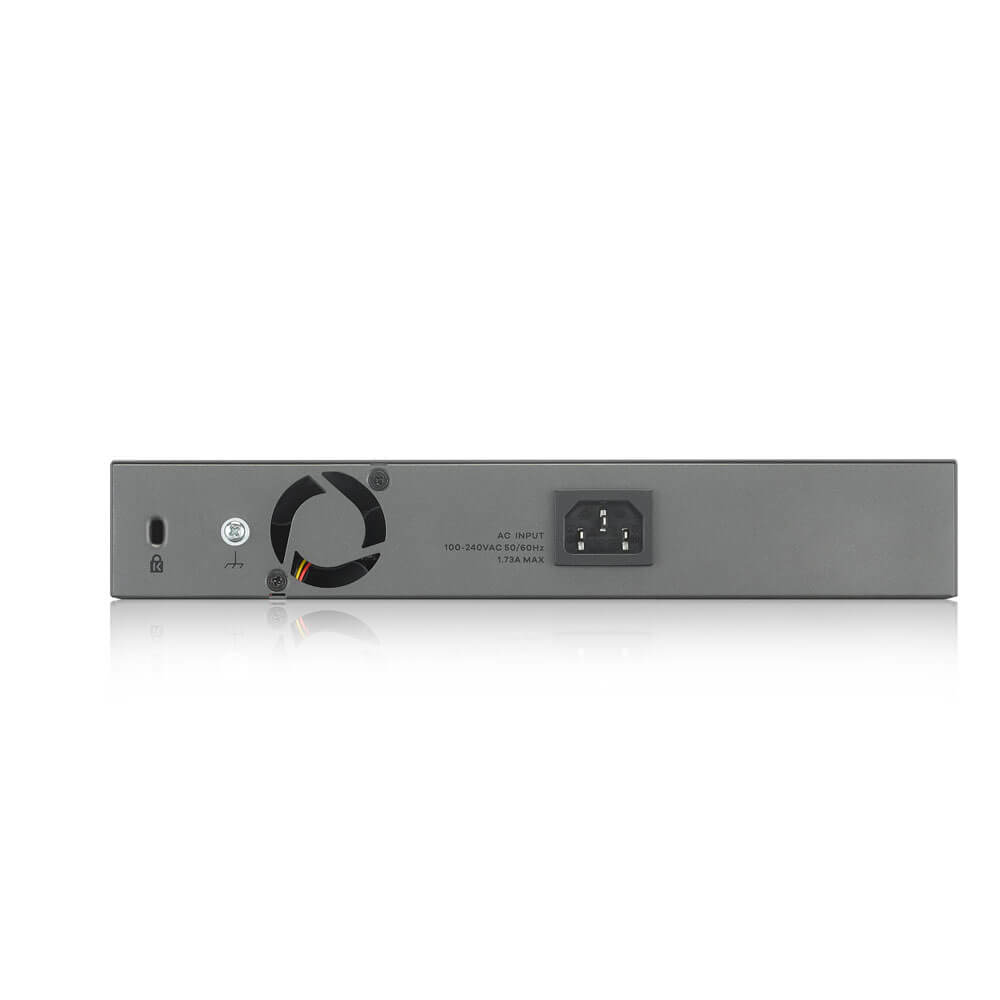

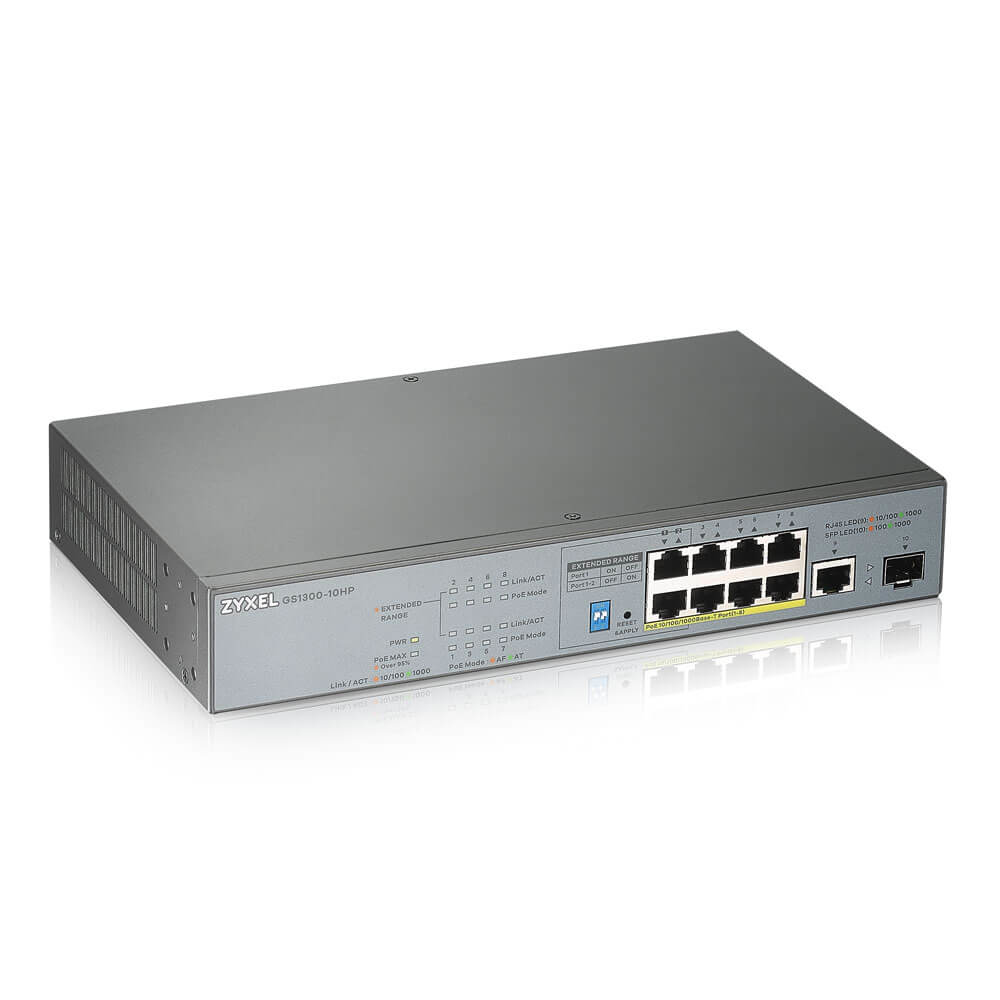

GS1300-10HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model GS1300-10HPPart no. GS1300-10HP-EU0101FEAN 4718937604197
40 specifications
- Noise44 dB
- Weight1.65 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
Overview
- Noise
- 44 dB
- Weight
- 1.65 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS1300-10HP
- Part numbers
- GS1300-10HP-EU0101F, GS1300-10HP-GB0101F
- EAN / UPC
- 4718937604197, 4718937604203
- Also known as
- Zyxel GS1300-10HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
40 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.8 Mpps |
| Packet buffer memory | 0.525 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Wall mountable | Yes |
| Electromagnetic compatibility | CE, FCC, C-Tick, A; BSMI CNS13438 |
Performance
| Specification | Value |
|---|---|
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 394567 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 155.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 531.278 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 267 mm |
| Depth | 162 mm |
| Height | 44 mm |
| Weight | 1.65 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | LVD EN62368-1, BSMI CNS14336-1, RoHS |
