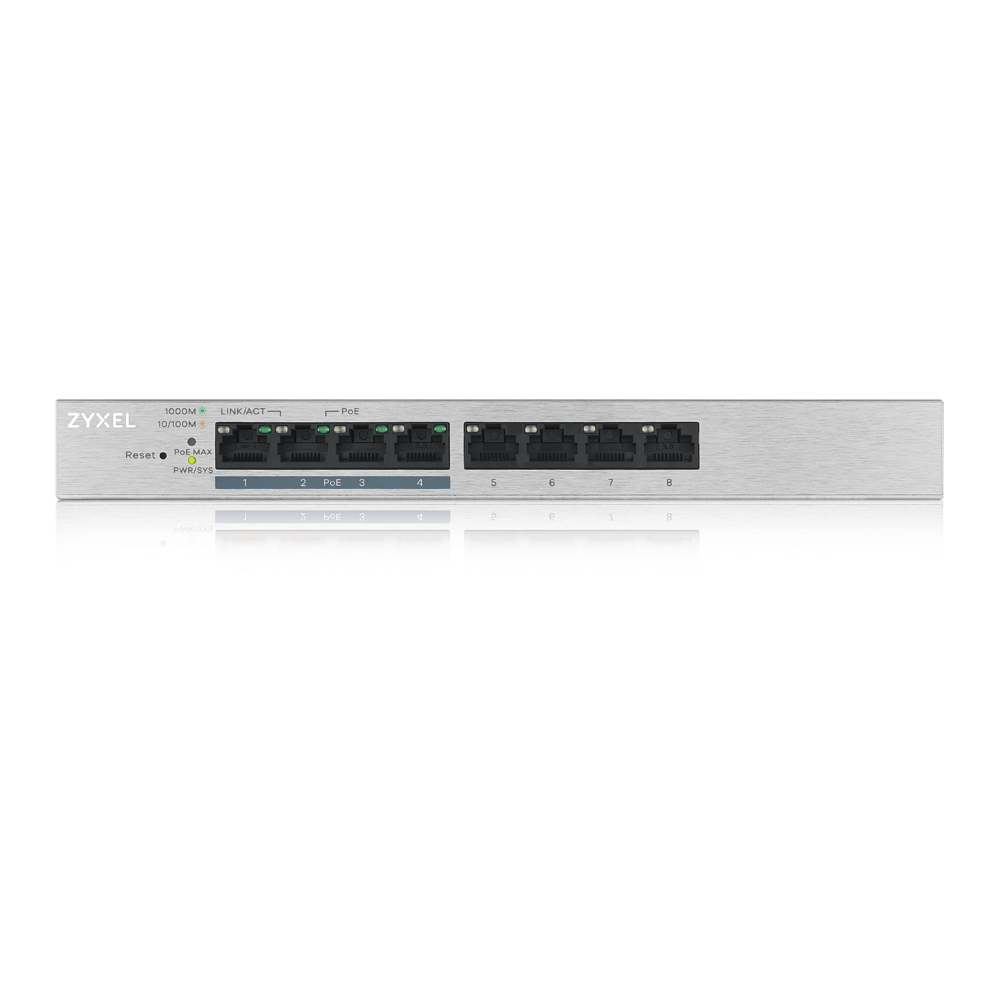

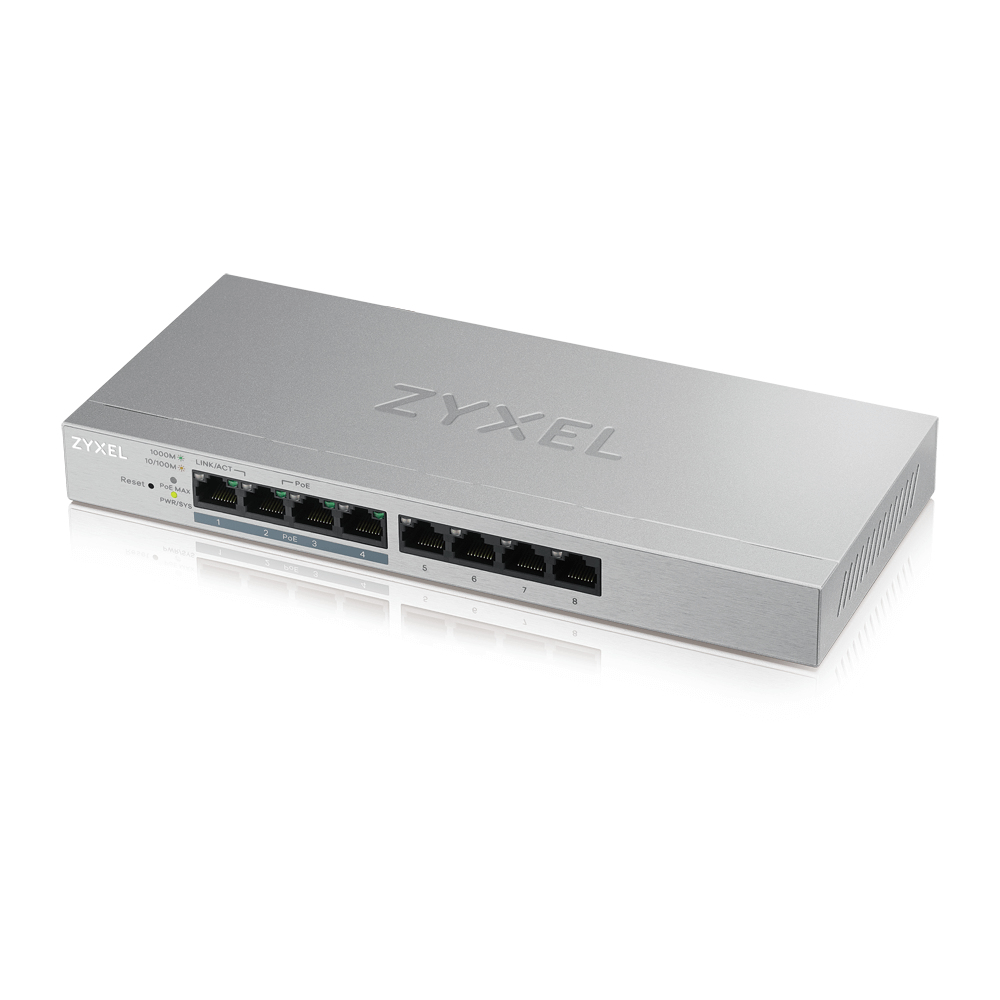

Zyxel GS1200-8HP v2
Model GS1200-8HP v2Part no. GS1200-8HPV2-GB0101FEAN 4718937588466
48 specifications
- Weight584 g
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
- MAC address table4000 entries
Overview
- Weight
- 584 g
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- MAC address table
- 4000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS1200-8HP v2
- Part numbers
- GS1200-8HPV2-GB0101F, GS1200-8HPV2-EU0101F
- EAN / UPC
- 4718937588466, 3540260177557, 4718937600601, 4718937600618
- Also known as
- Zyxel GS1200-8HP v2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
48 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

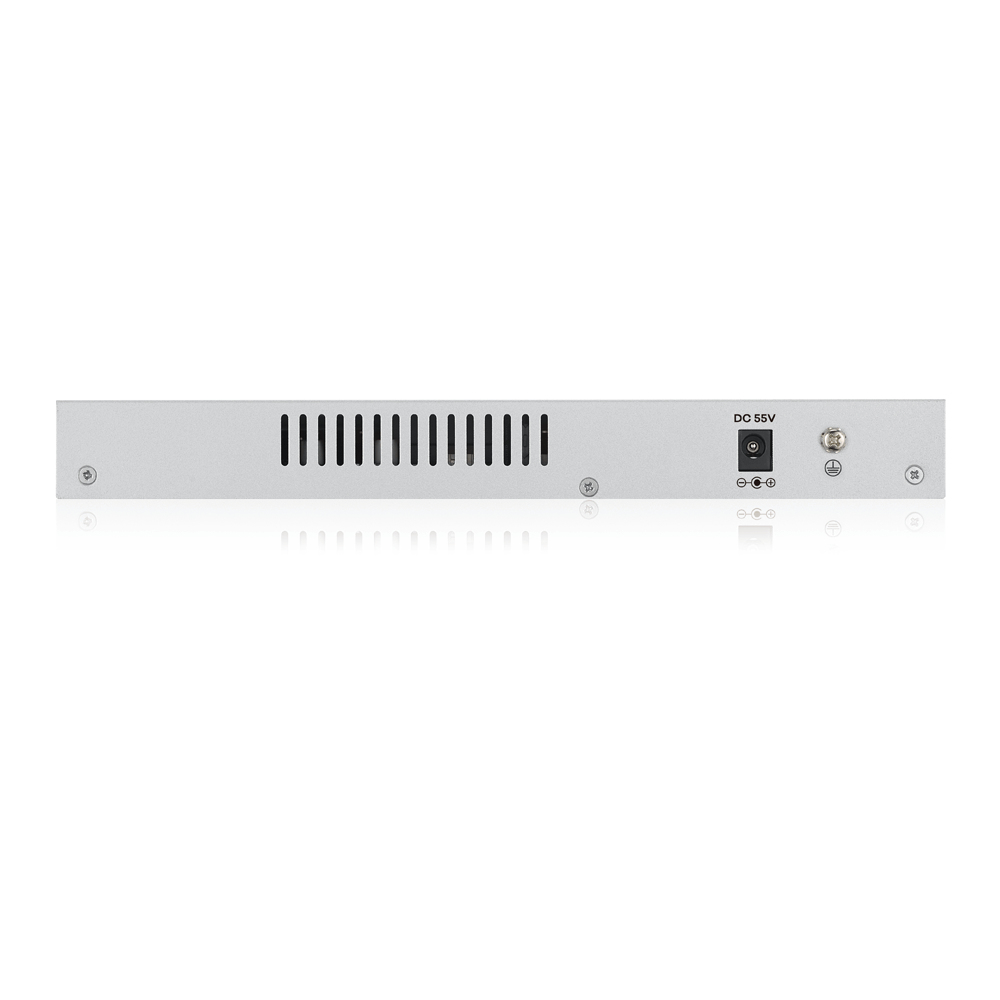

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frame range | 1 - 1 B |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Metal |
| Number of fans | 0 fan(s) |
Performance
| Specification | Value |
|---|---|
| Buffer size | 192 KB |
Power
| Specification | Value |
|---|---|
| DC input voltage | 55 V |
| Input current | 1.3 A |
| Power consumption (max) | 72 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 584 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 256 mm |
| Package depth | 132 mm |
| Package height | 78 mm |
| Package weight | 1.15 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
