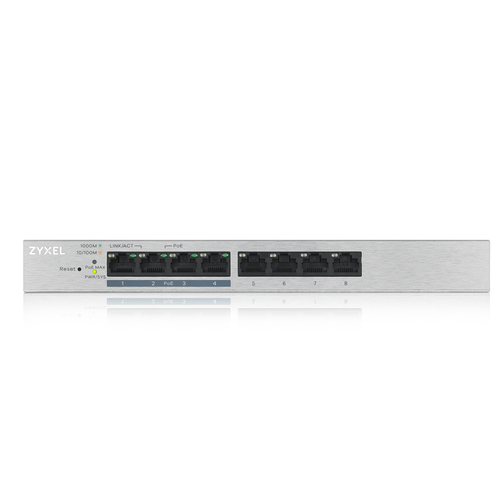

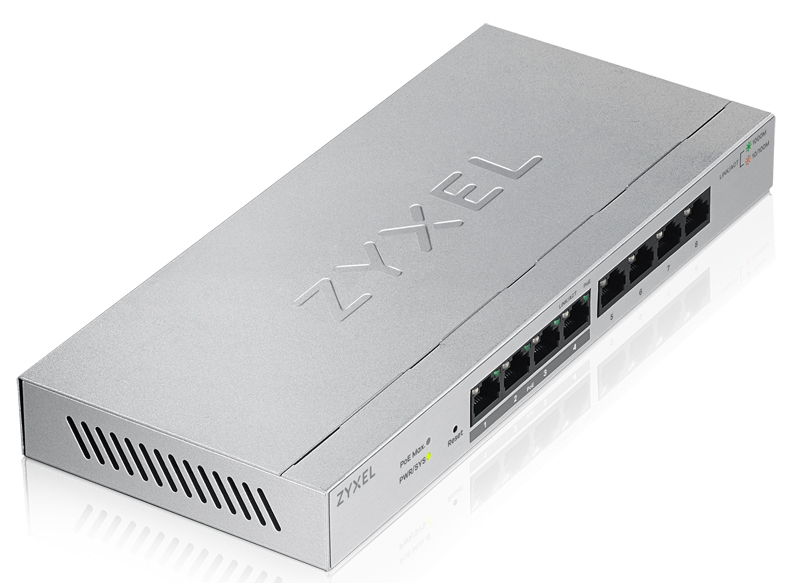

Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model GS1200-8HPPart no. GS1200-8HP-EU0101FEAN 4056203647753
46 specifications
- Weight650 g
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 650 g
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS1200-8HP
- Part numbers
- GS1200-8HP-EU0101F, GS1200-8HP-GB0101F, 3187
- EAN / UPC
- 4056203647753, 4718937592401
- Also known as
- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
46 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |

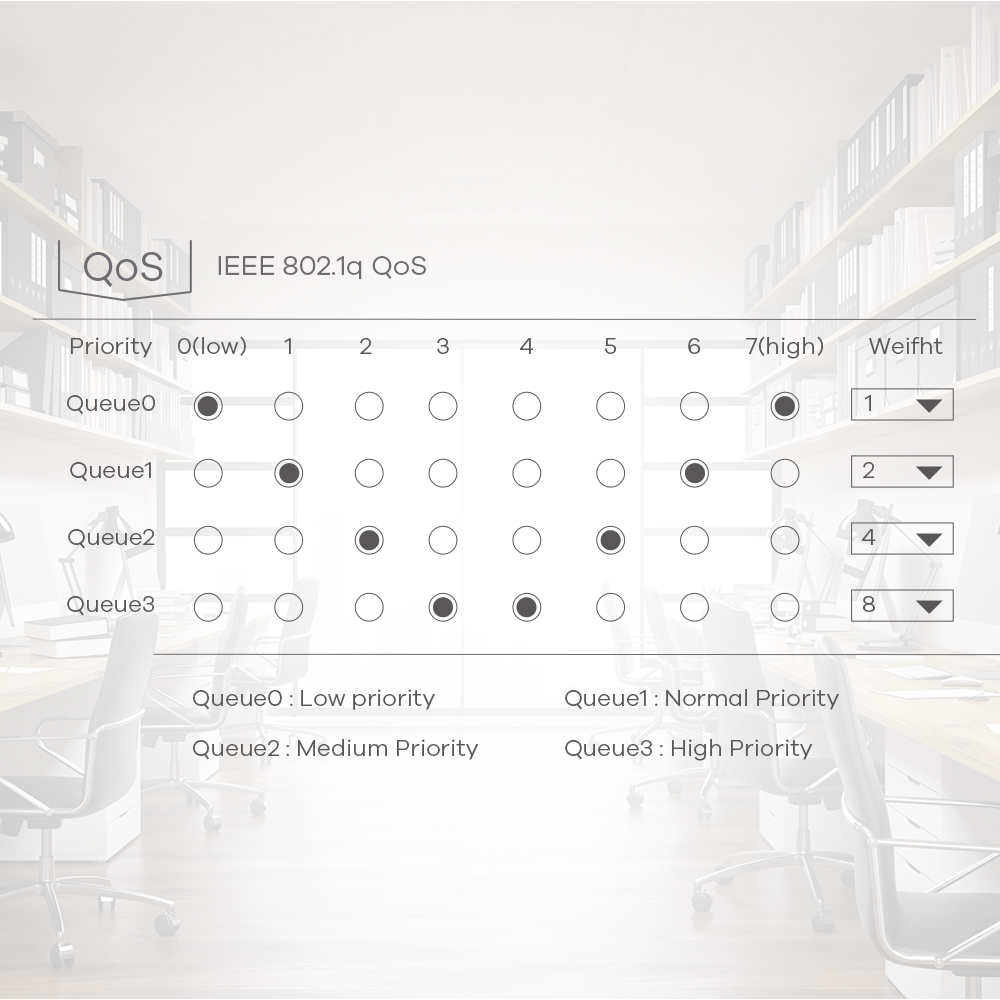

| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |

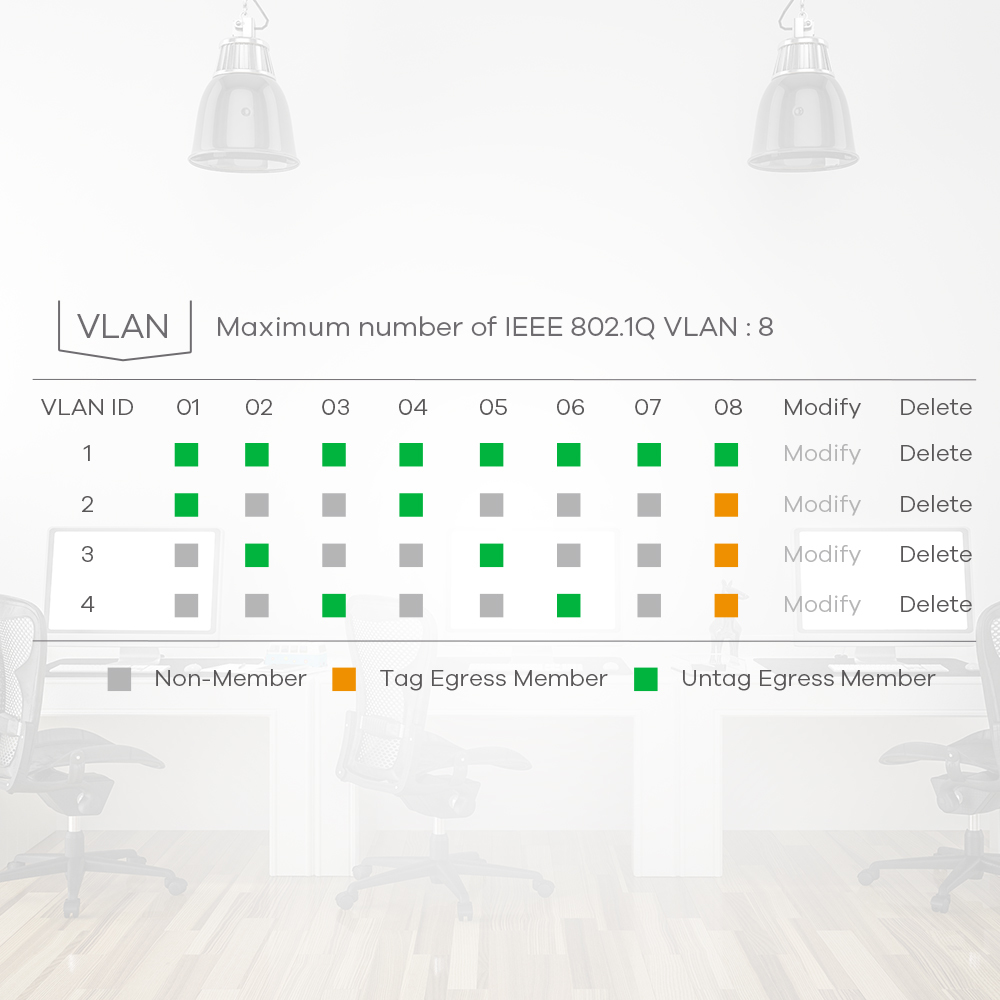

| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|

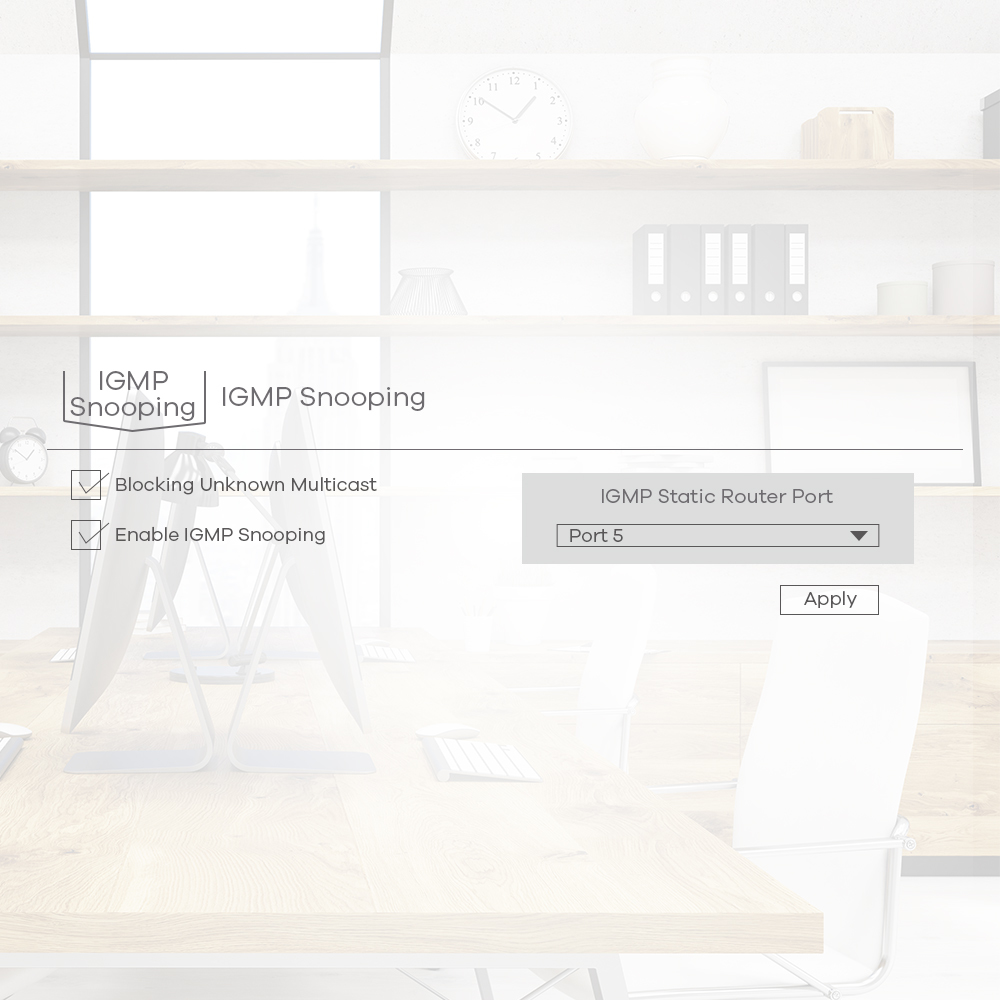

| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 20 |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Grey |
| On/off switch | Yes |
| Safety | LVD EN60950-1, RoHS |
Performance
| Specification | Value |
|---|---|
| Buffer size | 192 KB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 55 V |
| Output current | 1.3 A |
| Power consumption (typical) | 60 W |
| Power consumption (max) | 72 W |

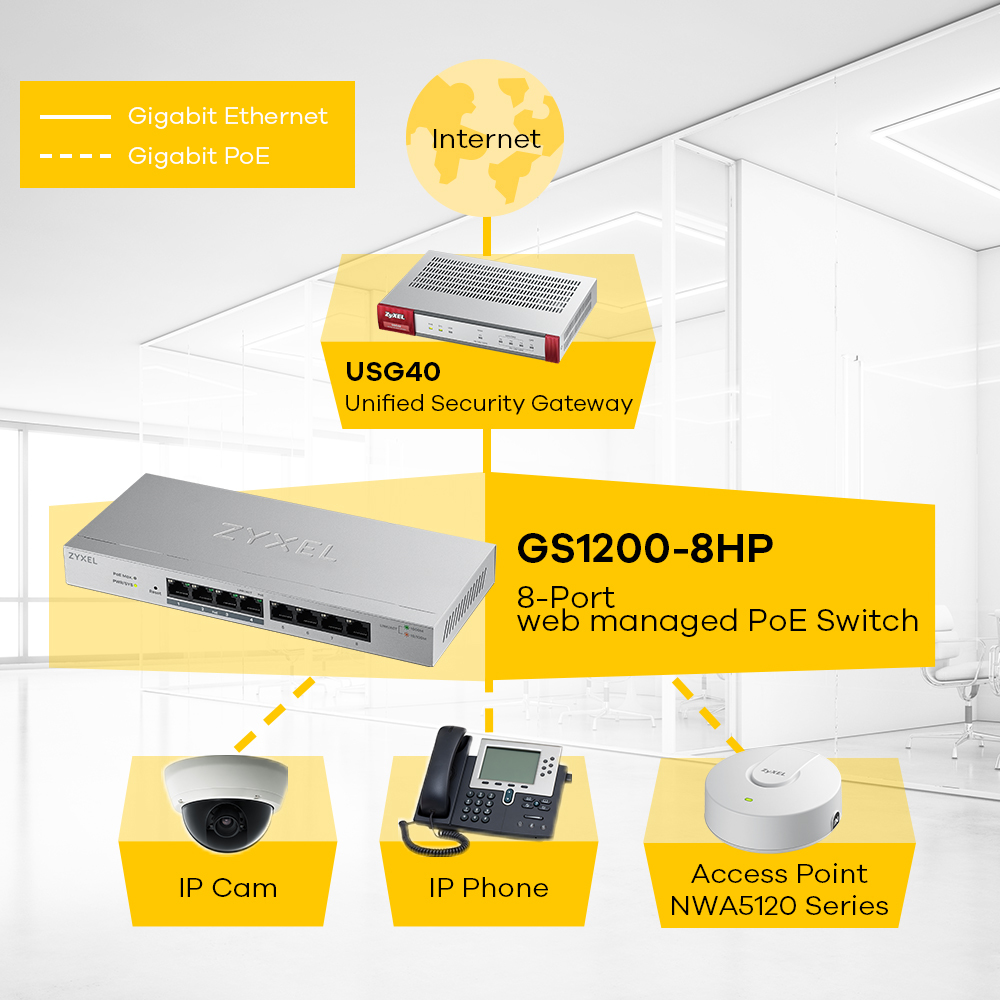

Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 650 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, C-Tick, Class A |
Reviews
No reviews of Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey yet. Have you used it? Tell others what you think.
Write a reviewCompare Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
All network switch comparisons- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsZyxel GS1200-8HP-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsZyxel GS-105S v2 IPTVCompare specs
- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsZyxel GS1200-5HP Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsZyxel XS2210-28HP - 24-PORT GIGABIT POE+ L2 MANAGED + 4 SFP+ 10G (28 TOTAL PORTS) 375WCompare specs
- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsD-Link DGS-1008D Gigabit Ethernet (10/100/1000) WhiteCompare specs
- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsD-Link 24-Port Desktop Gigabit Unmanaged PoE Switch withCompare specs

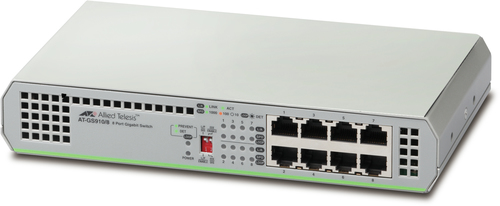

- Zyxel GS1200-8HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsAllied Telesis GS910/8 Unmanaged Gigabit Ethernet (10/100/1000) GreyCompare specs
