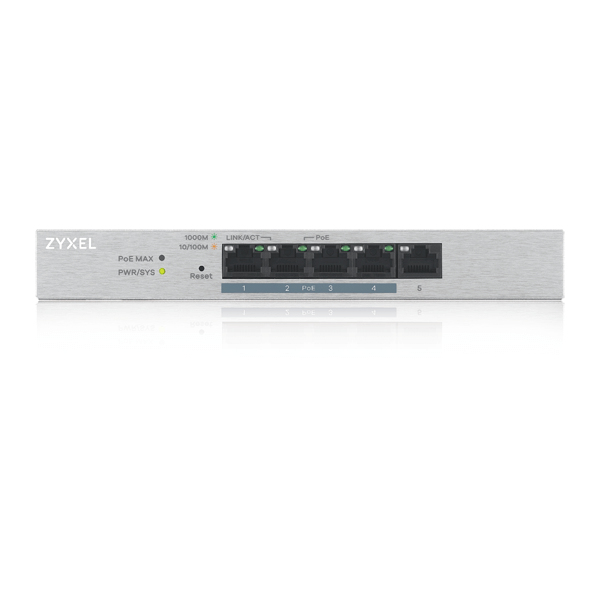

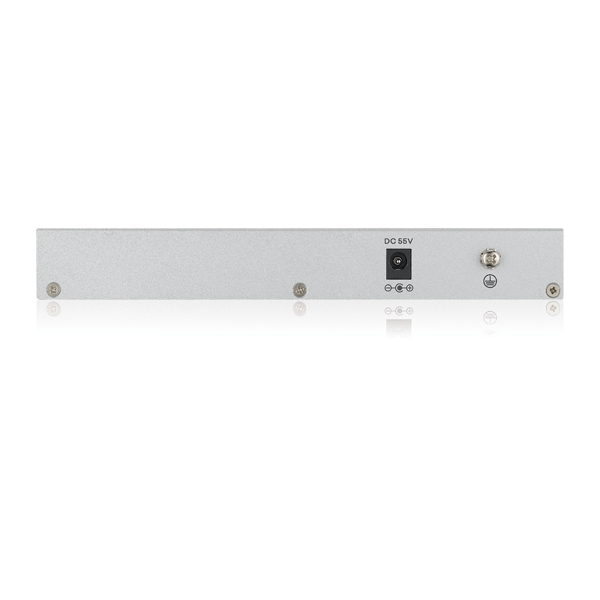

Zyxel GS1200-5HP v2
Model GS1200-5HP v2Part no. GS1200-5HPV2-EU0101FEAN 3540260177540
54 specifications
- Weight392 g
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 392 g
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS1200-5HP v2
- Part numbers
- GS1200-5HPV2-EU0101F, GS1200-5HPV2-GB0101F, 4102
- EAN / UPC
- 3540260177540, 4718937598717
- Also known as
- Zyxel GS1200-5HP v2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
54 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 20 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Link, PoE, Power |
| On/off switch | Yes |
| Safety | LVD EN60950-1 |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 1.3 A |
| Power consumption (max) | 72 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 5 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 84 mm |
| Height | 26 mm |
| Weight | 392 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 210 mm |
| Package depth | 132 mm |
| Package height | 78 mm |
| Package weight | 950 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, C-Tick, Class A |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare Zyxel GS1200-5HP v2
Compare any products- Zyxel GS1200-5HP v2 vsZyxel ES 108Av3Compare specs
- Zyxel GS1200-5HP v2 vsZyxel NSW100-28-GB0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, GreyCompare specs
- Zyxel GS1200-5HP v2 vsZyxel GS1200-8 IPTVCompare specs

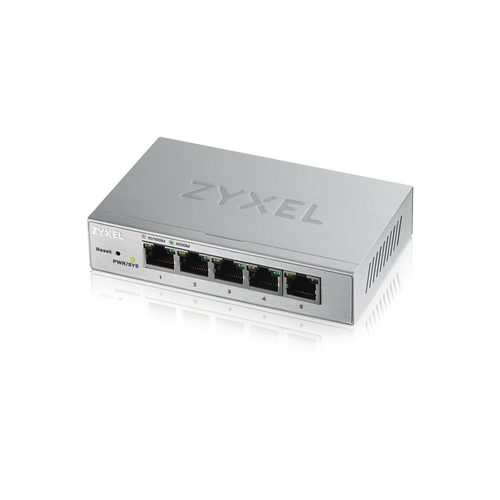

- Zyxel GS1200-5HP v2 vsZyxel GS1200-5 Managed Gigabit Ethernet (10/100/1000) SilverCompare specs

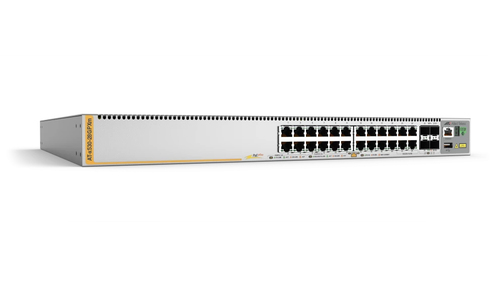

- Zyxel GS1200-5HP v2 vsAllied Telesis X530-28GPXM Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U SilverCompare specs

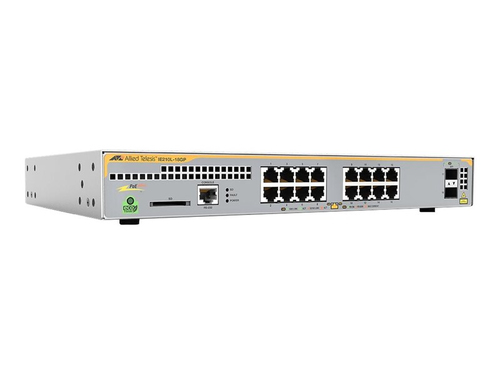

- Zyxel GS1200-5HP v2 vsAllied Telesis AT-IE210L-18GP-60 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs

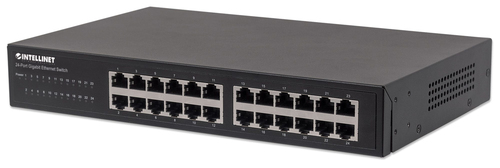

- Zyxel GS1200-5HP v2 vsIntellinet 24-Port Gigabit Ethernet SwitchCompare specs
