Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black
Model GS105Bv2Part no. GS-105BV2-EU0101FEAN 4718937508266
35 specifications
- Weight369 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 369 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS105Bv2
- Part number
- GS-105BV2-EU0101F
- EAN / UPC
- 4718937508266, 4718937566563
- Also known as
- Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
35 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 0 |
| CX4 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| ExpressCard slot | No |

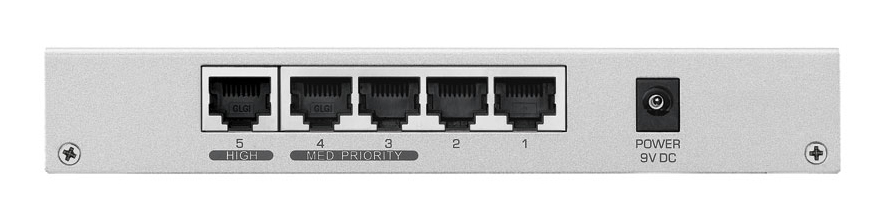

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |

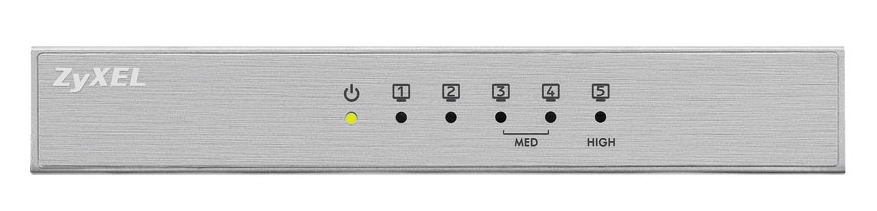

| LED indicators | Link, Power |
| Cable management | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 3.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164 mm |
| Depth | 98 mm |
| Height | 26 mm |
| Weight | 369 g |
What people say
Reviews & ratings
Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black
No reviews yet
Be the first to tell others how Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black
All network switch comparisons- Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black vsZyxel GS1910-24 Gigabit Ethernet (10/100/1000) BlackCompare specs
- Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black vsZyxel GS1910-48 BlackCompare specs

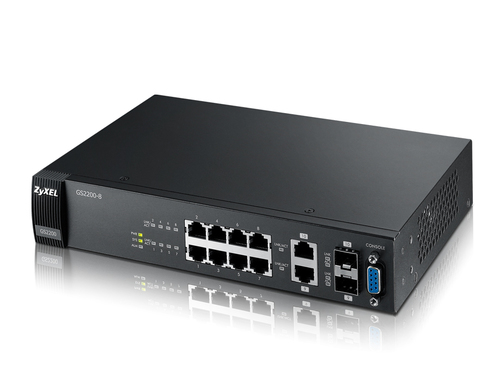

- Zyxel GS105Bv2 Unmanaged Gigabit Ethernet (10/100/1000) Black vsZyxel GS2200-8 Managed L2 1U BlackCompare specs
