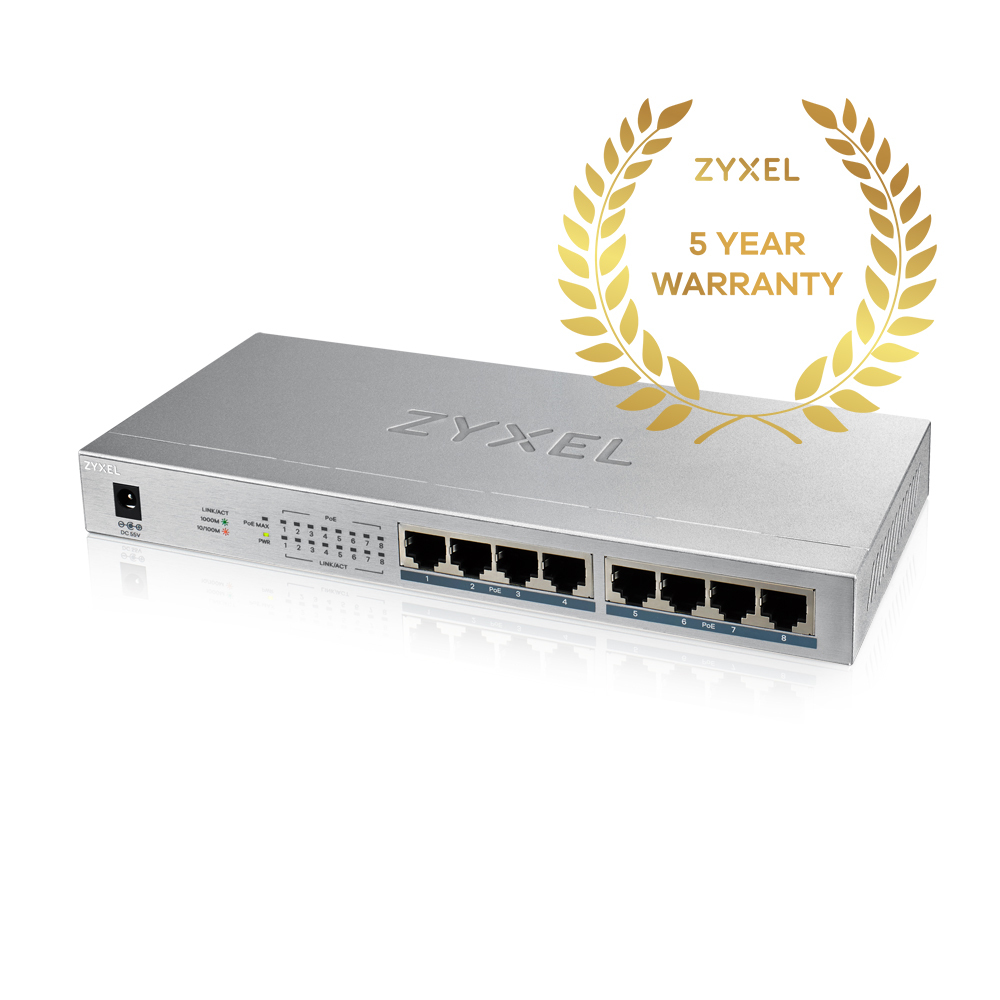

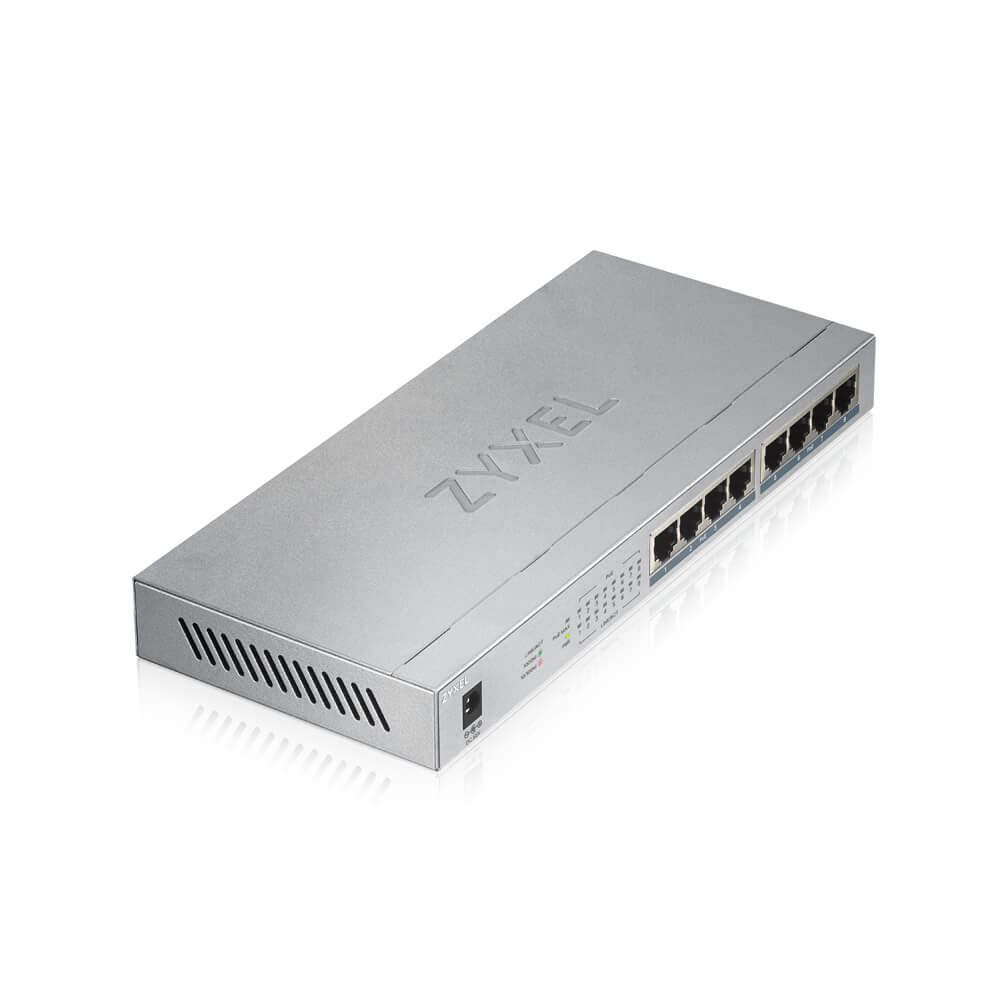

GS1008HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model GS1008HPPart no. GS1008HP-EU0101FEAN 4718937604135
42 specifications
- Weight610 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- Switching capacity16 Gbit/s
Overview
- Weight
- 610 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Switching capacity
- 16 Gbit/s
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS1008HP
- Part numbers
- GS1008HP-EU0101F, GS1008HP-GB0101F
- EAN / UPC
- 4718937604135, 4718937604142
- Also known as
- Zyxel GS1008HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
42 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | PoE, Power |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 55 V |
| Input current | 1.3 A |
| Power consumption (max) | 72 W |

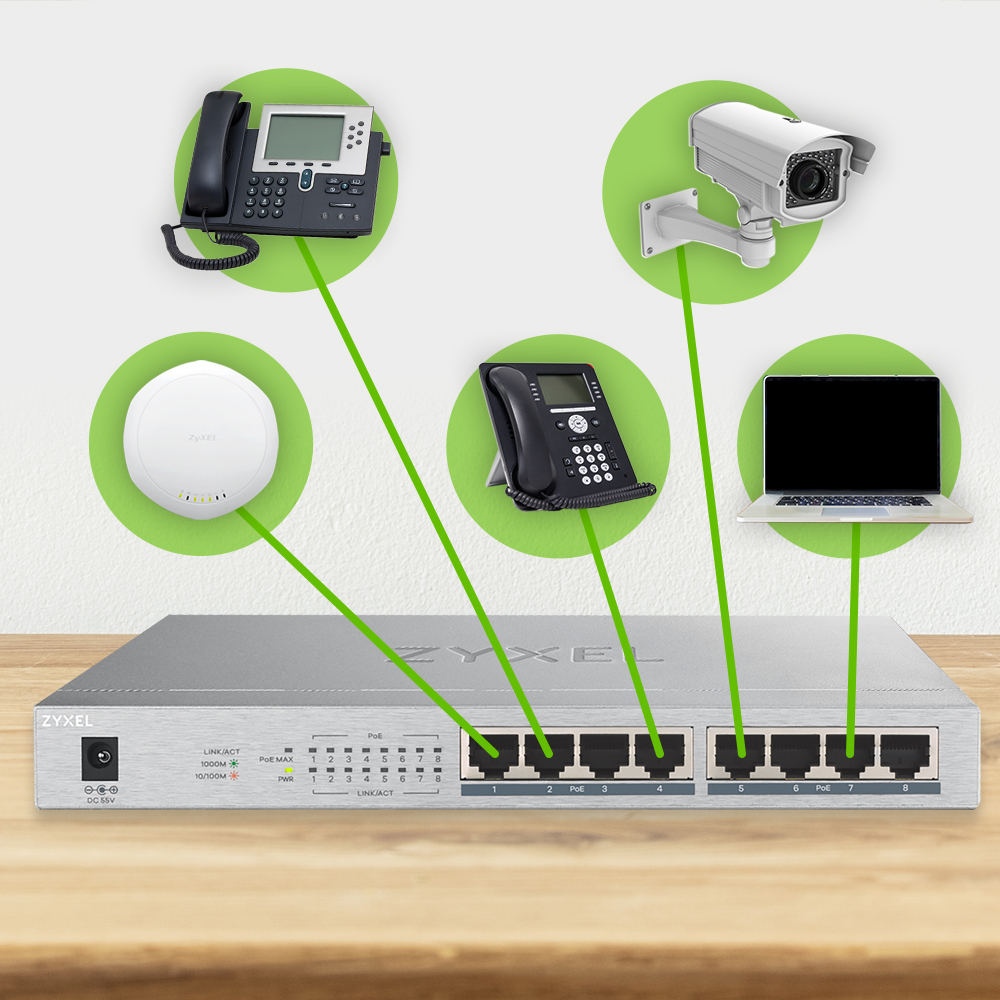

Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 105 mm |
| Height | 26 mm |
| Weight | 610 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 256 mm |
| Package depth | 132 mm |
| Package height | 78 mm |
| Package weight | 1.26 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 283 mm |
| Master (outer) case length | 415 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 282 mm |
| Master (outer) case gross weight | 9 kg |
