Zyxel GS-1524 24-port Web Managed Switch
Model GS-1524 24-port Web Managed SwitchPart no. 160122G1524EAN 4172937505654
25 specifications
- Speed1 Gbit/s
- Weight3 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Flow control supportYes
Overview
- Speed
- 1 Gbit/s
- Weight
- 3 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Flow control support
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS-1524 24-port Web Managed Switch
- Part number
- 160122G1524
- EAN / UPC
- 4172937505654
- Also known as
- Zyxel GS-1524 24-port Web Managed Switch Black
Specifications
25 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z |
| Flow control support | Yes |
| Rate limiting | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Web-based, Telnet CLI, SNMP v1, RMON-Lite |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 43 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 215 x 44.45 mm |
| Power requirements | 100-240VAC, 50/60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | - UL 60950-1 - CSA 60950-1 - EN 60950-1 - IEC 60950-1 |
What people say
Reviews & ratings
Zyxel GS-1524 24-port Web Managed Switch
No reviews yet
Be the first to tell others how Zyxel GS-1524 24-port Web Managed Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Zyxel GS-1524 24-port Web Managed Switch

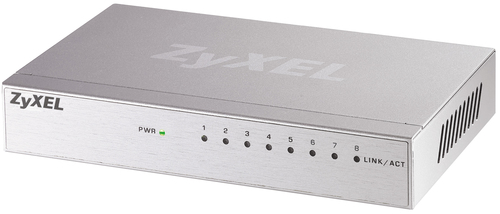

All network switch comparisons- Zyxel GS-1524 24-port Web Managed Switch vsZyxel GS-108B Unmanaged L2 SilverCompare specs
- Zyxel GS-1524 24-port Web Managed Switch vsZyxel GS-2750 ManagedCompare specs
- Zyxel GS-1524 24-port Web Managed Switch vsZyxel GS-1548 48-port Web Managed SwitchCompare specs
- Zyxel GS-1524 24-port Web Managed Switch vsZyxel MGS-3712F ManagedCompare specs

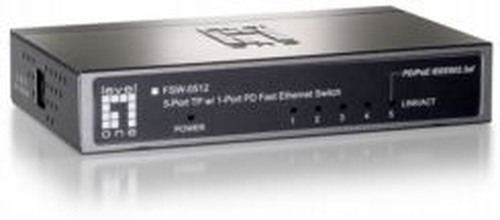

- Zyxel GS-1524 24-port Web Managed Switch vsLevelOne 5-Port Fast Ethernet PoE PD SwitchCompare specs
