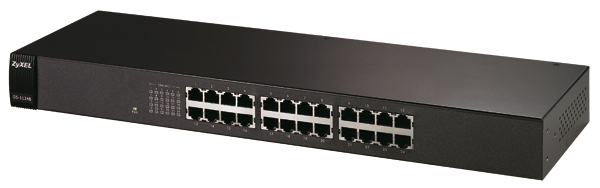

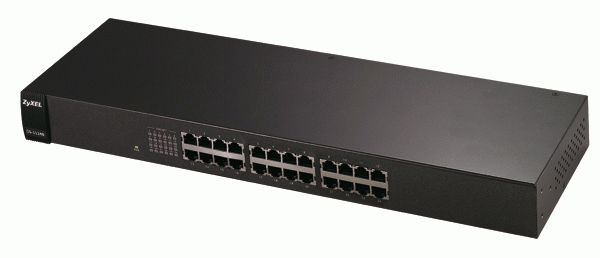

Zyxel GS-1124B Unmanaged
Model GS-1124BPart no. 91-010-212001B
29 specifications
- Speed48 Gbit/s
- ConnectivityWired
- Weight2.5 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Auto MDI/MDI-XYes
Overview
- Speed
- 48 Gbit/s
- Connectivity
- Wired
- Weight
- 2.5 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Auto MDI/MDI-X
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS-1124B
- Part numbers
- 91-010-212001B, ZYXGS-1124B, ZY-GS1124
- Also known as
- Zyxel GS-1124B Unmanaged
Specifications
29 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 48 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Safety | UL, CSA, EN, IEC |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 26.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 38.7 Mbit/s |
| Dimensions (WxDxH) | 440 x 130 x 45 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet |
| Switch fabric speed | 48Gbps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 548 mm |
| Package depth | 218 mm |
| Package height | 108 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE EMC |
