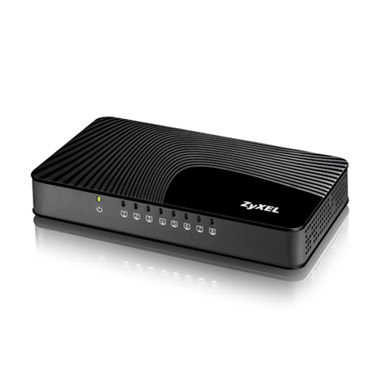

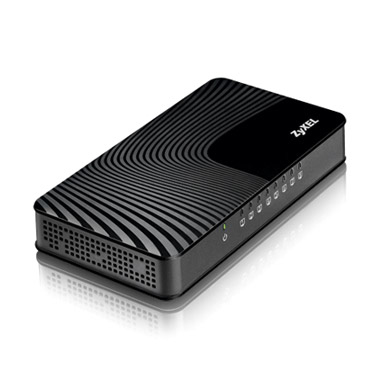

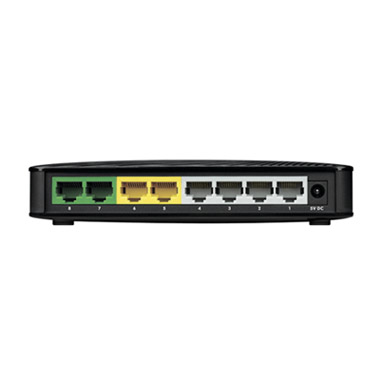

Zyxel GS-108S Unmanaged Black
Model GS-108SEAN 7605591201466
64 specifications
- Speed16 Gbit/s
- ConnectivityWired
- Weight150 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Speed
- 16 Gbit/s
- Connectivity
- Wired
- Weight
- 150 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS-108S
- Part numbers
- GS-108S, GS-108S-EU0101F, GS-108S-GB0101F
- EAN / UPC
- 7605591201466, 182682412989, 823030889373, 904214293466 +6 more
- Also known as
- Zyxel GS-108S Unmanaged Black
Specifications
64 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Fast Ethernet (copper) ports quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP/SFP+ slots quantity | 0 |
| Fiber ports quantity | 0 |
| CX4 ports quantity | 0 |
| HDMI stacking ports | 0 |
| PCI-X slots | 0 |
| USB 2.0 ports quantity | 0 |
| ExpressCard slot | No |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10, 100, 1000 |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 16 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.128 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | LAN, Link, Power |
| Safety | RoHS |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 4.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) ports quantity | 0 |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 152 x 80 x 32 mm |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Fan | 0 |
| Material | Plastic |
| Power LED | Yes |
| Wi-Fi | No |
| Connectivity LEDs | 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Relative humidity | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 152 mm |
| Depth | 80 mm |
| Height | 32 mm |
| Weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 157 x 86 x 96 mm |
| Package width | 157 mm |
| Package depth | 86 mm |
| Package height | 96 mm |
| Package weight | 250 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC class B, C-Tick, BSMI |
