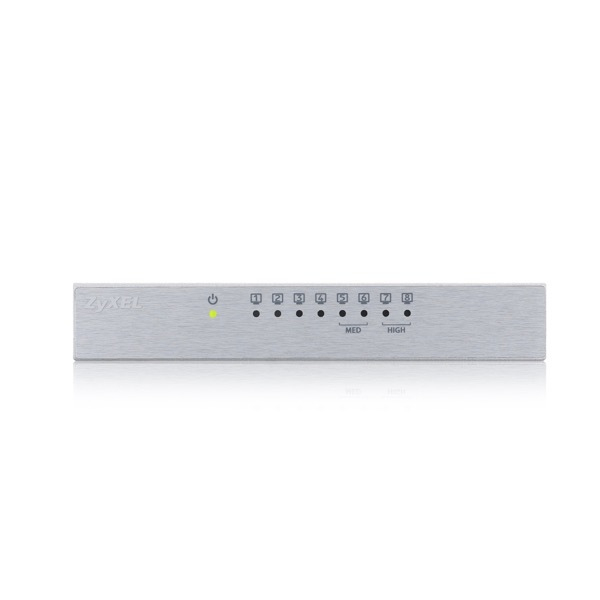

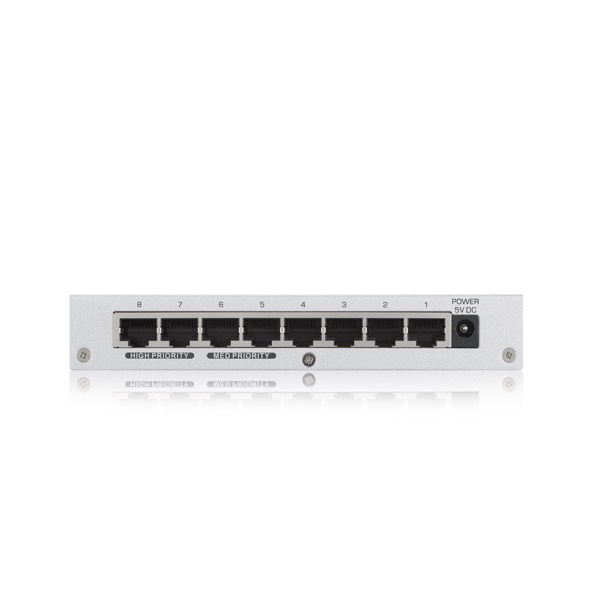

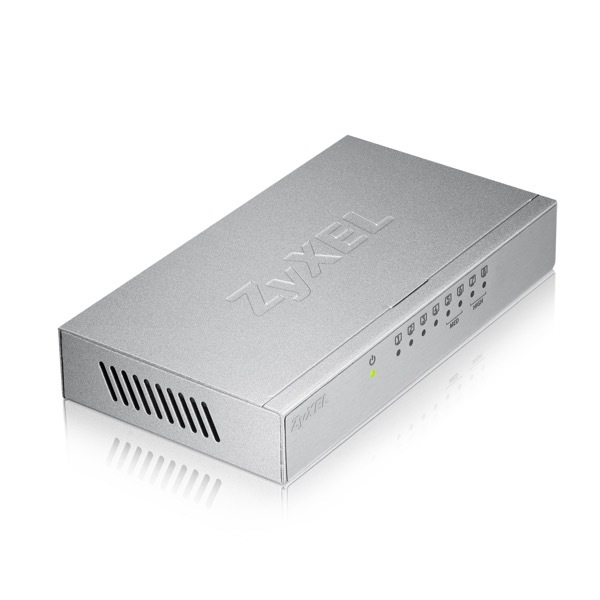

GS-108B v3
Model GS-108B v3Part no. GS-108BV3-GB0101FEAN 4718937587018
35 specifications
- Weight325 g
- ColourSilver
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
- MAC address table4000 entries
Overview
- Weight
- 325 g
- Colour
- Silver
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- MAC address table
- 4000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS-108B v3
- Part numbers
- GS-108BV3-GB0101F, GS-108BV3-EU0101F
- EAN / UPC
- 4718937587018, 4718937527427, 4718937586301
- Also known as
- Zyxel GS-108B v3 Unmanaged Gigabit Ethernet (10/100/1000) Silver
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Silver |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (max) | 3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 85 mm |
| Height | 26 mm |
| Weight | 325 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 161 mm |
| Package depth | 90 mm |
| Package height | 95 mm |
| Package weight | 493 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
