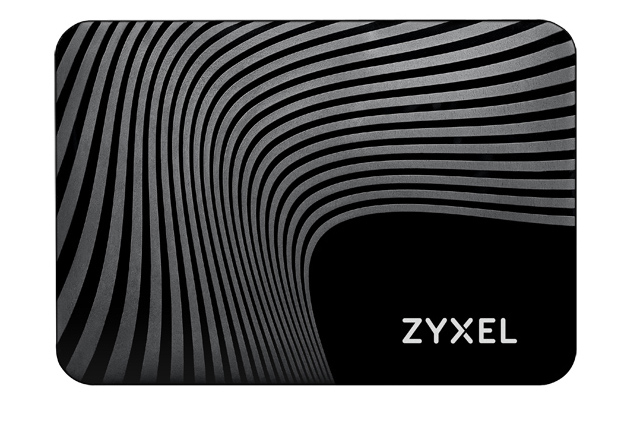

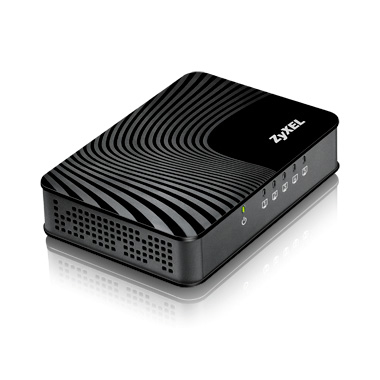

Zyxel GS-105S v2

Zyxel GS-105S v2

Model GS-105S v2Part no. GS-105SV2-GB0101FEAN 4718937578764

39 specifications
  • Memory0.128 MB
  • Weight105 g
  • ColourBlack
  • Quality of Service (QoS) supportYes
  • Basic switching RJ-45 Ethernet ports quantity5
  • MAC address table2000 entries
See all specifications

Overview

Memory
0.128 MB
Weight
105 g
Colour
Black
Quality of Service (QoS) support
Yes
Basic switching RJ-45 Ethernet ports quantity
5
MAC address table
2000 entries
Brand
Zyxel
Model
GS-105S v2
Part numbers
GS-105SV2-GB0101F, GS-105SV2-EU0101F
EAN / UPC
4718937578764, 4055895365853, 4718937566884, 4718937578757 +1 more
Also known as
Zyxel GS-105S v2 Gigabit Ethernet (10/100/1000) Black

Specifications

39 specifications in 15 groups

Management features

Quality of Service (QoS) supportYes

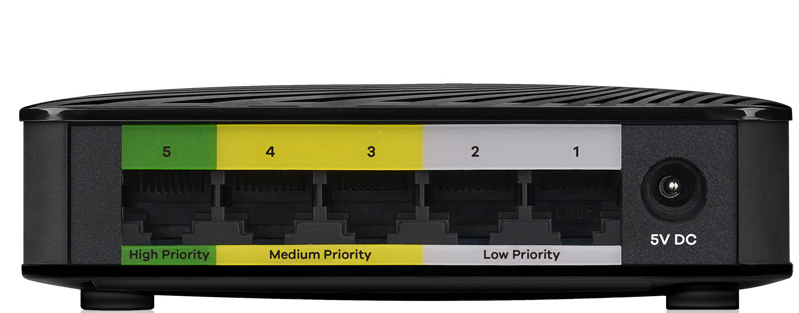

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportYes
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table2000 entries
Switching capacity10 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes

Security

IGMP snoopingYes

Design

Product colourBlack
LED indicatorsYes

Performance

Internal memory0.128 MB
Buffer size128 KB
Plug and PlayYes

Power

AC input voltage100 - 240 V
Power consumption (typical)2.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width106 mm
Depth75 mm
Height32 mm
Weight105 g

Packaging content

User guideYes

Packaging data

Package width127 mm
Package depth82 mm
Package height95 mm
Package weight205 g

Certificates

CertificationCE, FCC Class B, BSMI

Logistics data

Harmonized System (HS) code85176990
