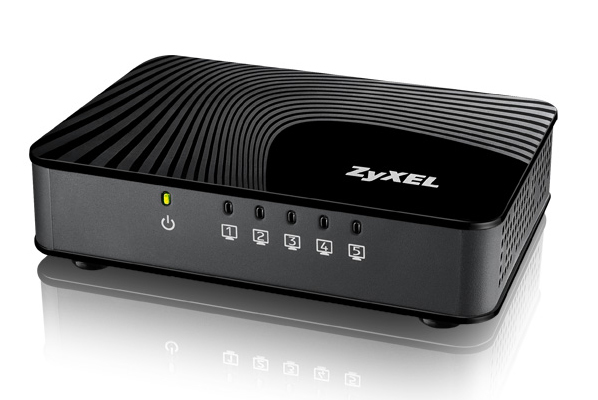

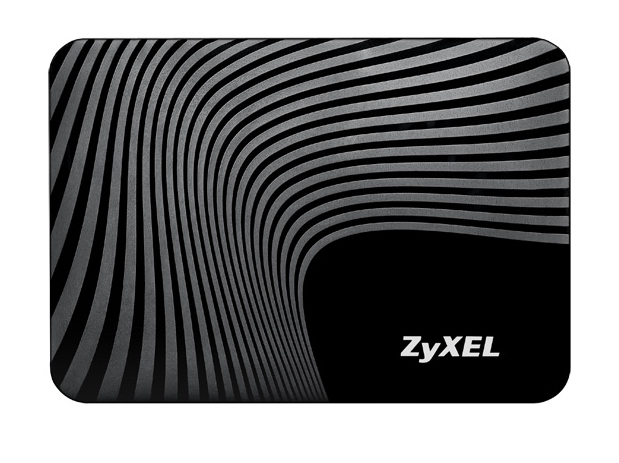

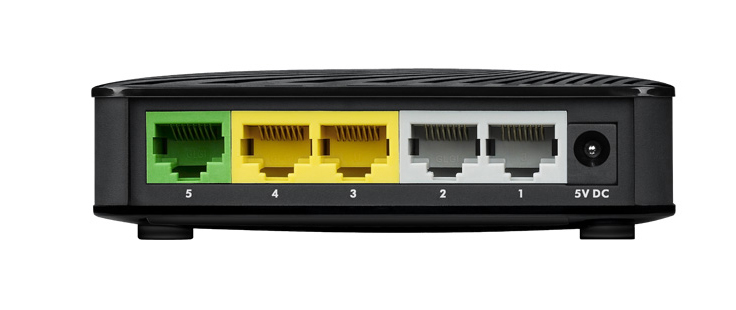

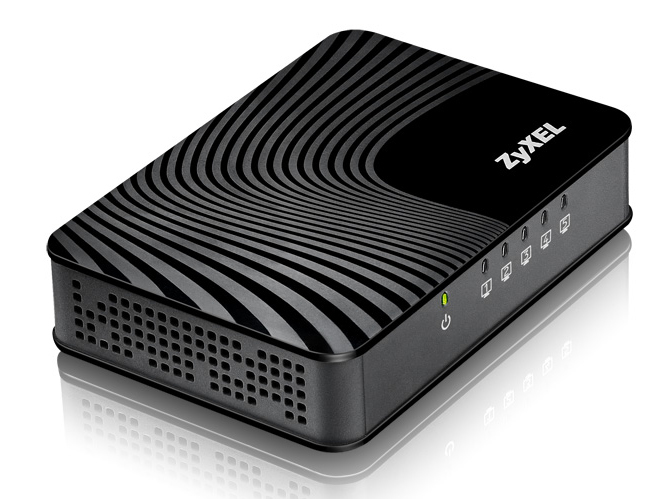

Zyxel GS-105S Unmanaged Gigabit Ethernet (10/100/1000) Black
Model GS-105SPart no. GS-105S-GB0101FEAN 4718937566839
36 specifications
- Weight102 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 102 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS-105S
- Part number
- GS-105S-GB0101F
- EAN / UPC
- 4718937566839, 5054484424321
- Also known as
- Zyxel GS-105S Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
36 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.128 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Safety | EN 60950-1, IEC 60950-1, EU RoHS |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106 mm |
| Depth | 75 mm |
| Height | 32 mm |
| Weight | 102 g |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 127 mm |
| Package depth | 82 mm |
| Package height | 95 mm |
| Package weight | 205 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC class B, C-Tick, BSMI |
