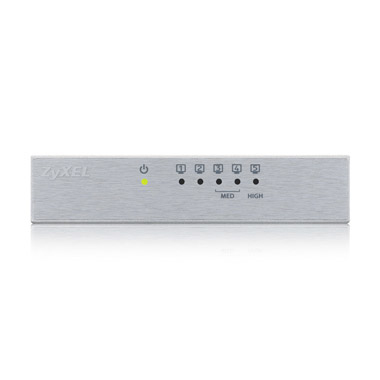

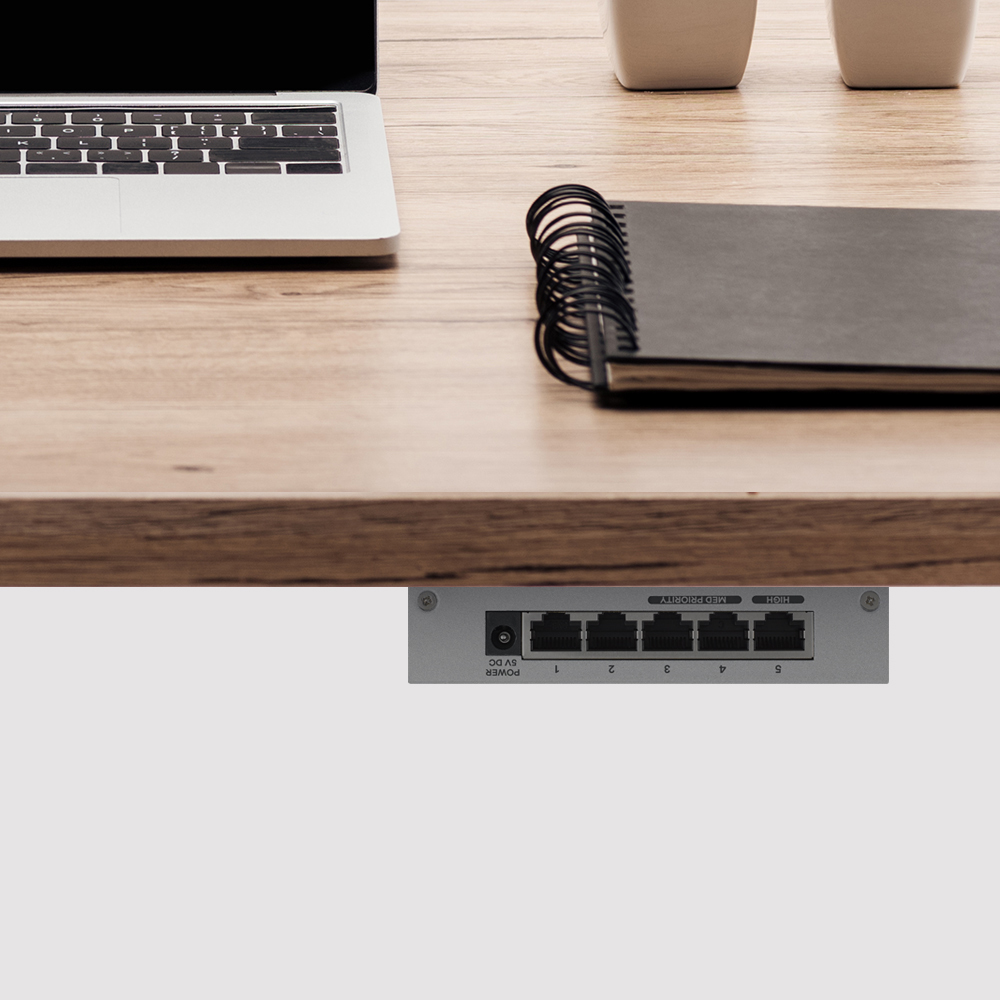

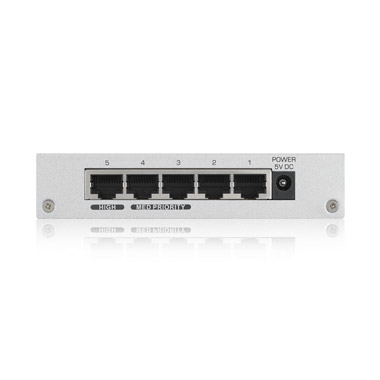

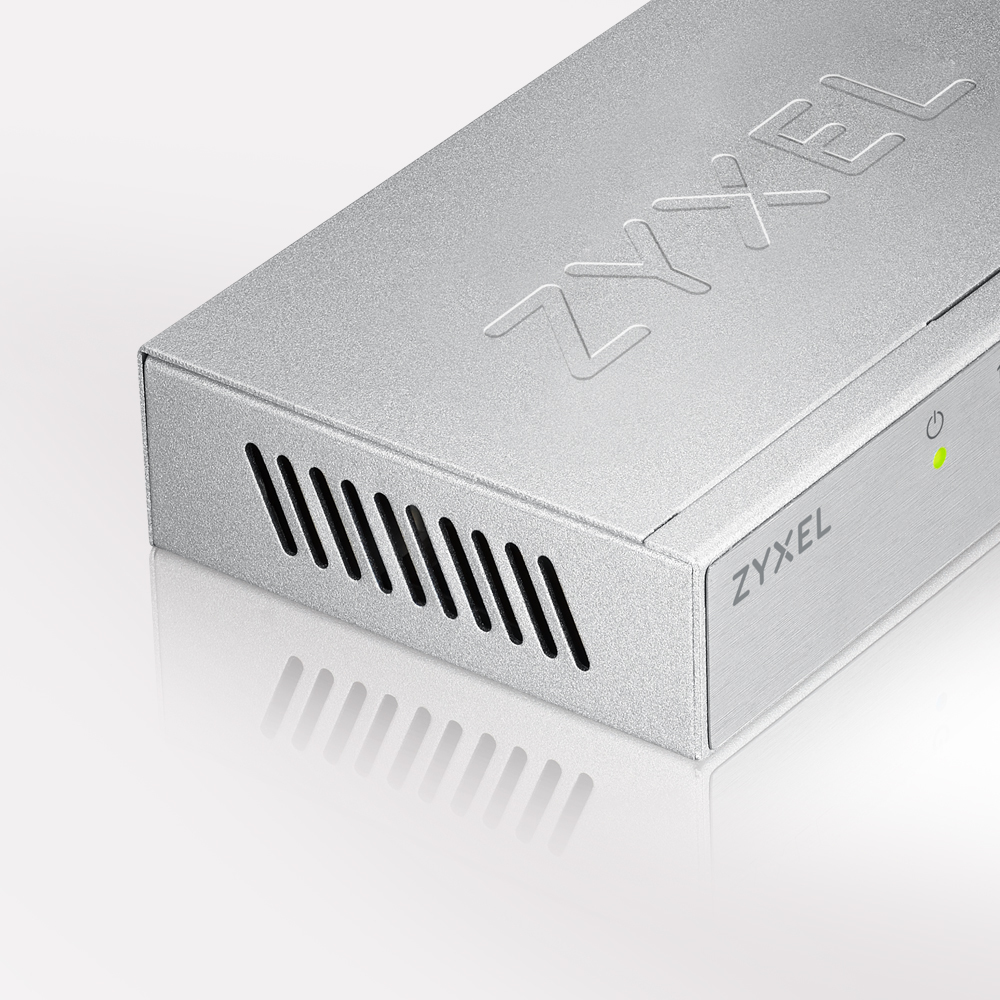

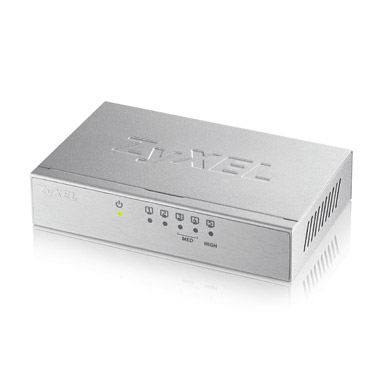

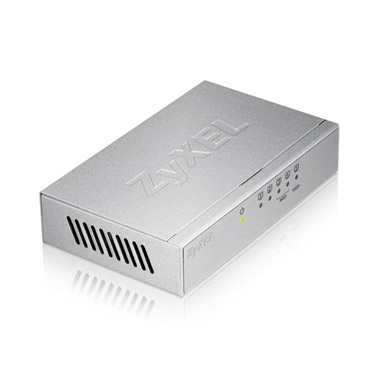

Zyxel GS-105B v3

Zyxel GS-105B v3

Model GS-105B v3Part no. GS-105BV3-EU0101FEAN 8944732662926

37 specifications
  • Weight229 g
  • ColourSilver
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity5
  • 10G supportNo
  • MAC address table20000 entries
See all specifications

Overview

Weight
229 g
Colour
Silver
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
5
10G support
No
MAC address table
20000 entries
Brand
Zyxel
Model
GS-105B v3
Part numbers
GS-105BV3-EU0101F, GS-105BV3-GB0101F, 4746
EAN / UPC
8944732662926, 4718937586295, 4718937586981
Also known as
Zyxel GS-105B v3 Unmanaged L2+ Gigabit Ethernet (10/100/1000) Silver

Specifications

37 specifications in 12 groups

Management features

Switch typeUnmanaged
Switch layerL2+
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Link aggregationYes
Rate limitingYes

Data transmission

MAC address table20000 entries
Switching capacity10 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes

Design

Product colourSilver
LED indicatorsYes

Performance

Buffer size128 KB

Power

AC input voltage100 - 240 V
Output voltage5 V
Output current1 A
Power consumption (typical)2.5 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width121 mm
Depth75 mm
Height26 mm
Weight229 g

Packaging data

Package width127 mm
Package depth82 mm
Package height95 mm
Package weight381 g

Certificates

CertificationCE, FCC Class B, BSMI

Logistics data

Harmonized System (HS) code85176990
