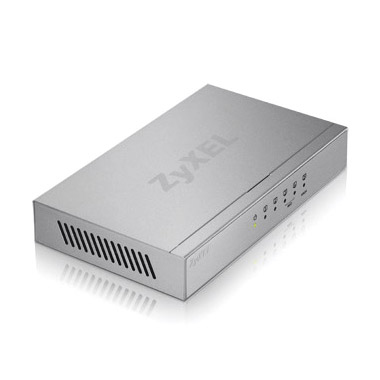

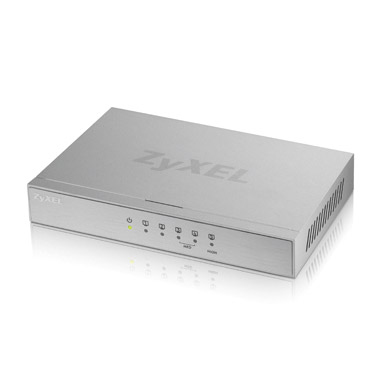

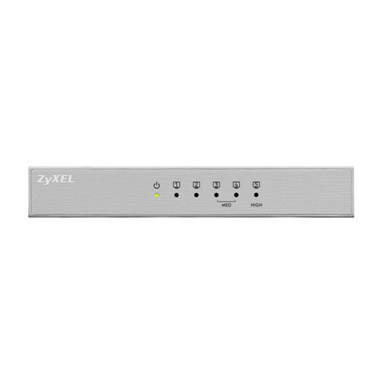

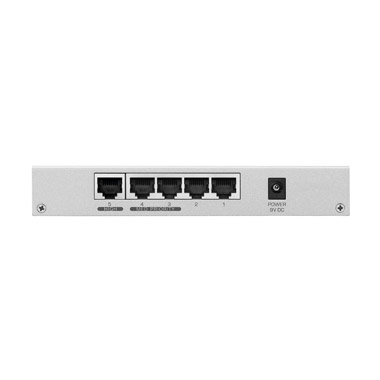

Zyxel GS-105B v2
Model GS-105B v2Part no. GS-105Bv2EAN 5054629149935
30 specifications
- Weight369 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 369 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- GS-105B v2
- Part numbers
- GS-105Bv2, GS-105BV2-GB0101F
- EAN / UPC
- 5054629149935, 4718937566754, 5053959458878, 5054484208532 +1 more
- Also known as
- Zyxel GS-105B v2 Unmanaged Gigabit Ethernet (10/100/1000) Grey
Specifications
30 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 3.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164 mm |
| Depth | 98 mm |
| Height | 26 mm |
| Weight | 369 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 108 mm |
| Package height | 92 mm |
| Package weight | 537 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC class B, C-Tick, BSMI |
