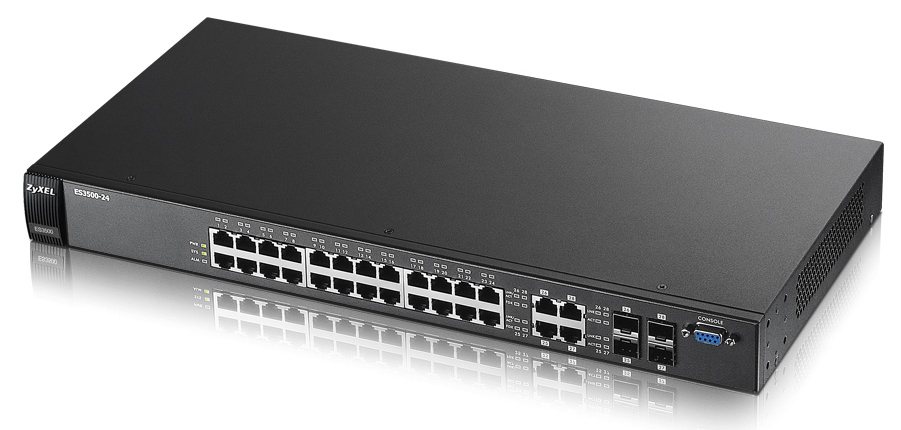

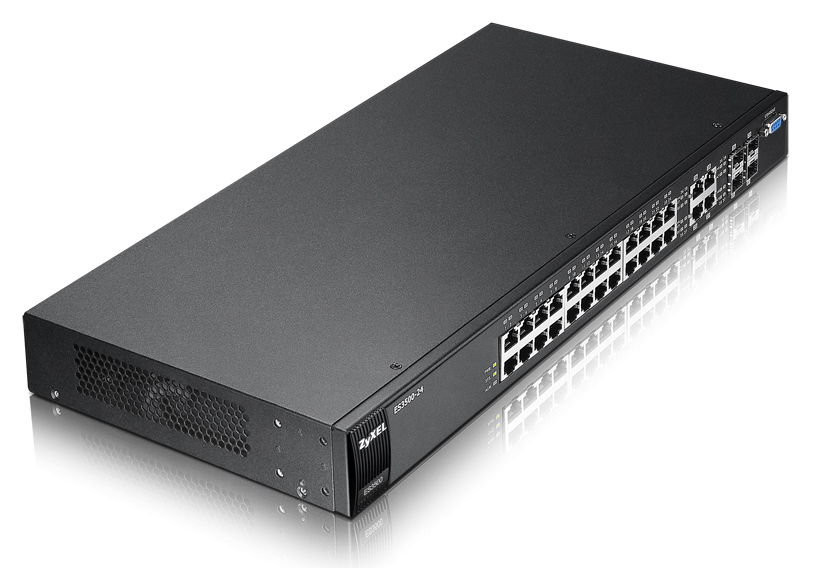

Zyxel ES3500-24 Managed L2 Black
Model ES3500-24Part no. 4742EAN 7605591194096
34 specifications
- Speed0.1 Gbit/s
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table16000 entries
Overview
- Speed
- 0.1 Gbit/s
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES3500-24
- Part numbers
- 4742, ES3500-24-EU0101F, ES3500-24-GB0101F, ES3500-24
- EAN / UPC
- 7605591194096, 115971081573, 4718937565634, 4718937562213 +3 more
- Also known as
- Zyxel ES3500-24 Managed L2 Black
Specifications
34 specifications in 8 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC1213, RFC1493, RFC1643, RFC1757, RFC2011, RFC2012, RFC2013, RFC2233, RFC2674, RFC2925 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Fast Ethernet (copper) ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
| Static port security | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Safety | EN 55022: 2006+A1: 2007, EN 61000-3-2, EN 61000-3-3, EN 55024, AS/NZS CISPR 22: 2009, FCC, ICES-003, BSMI (CNS13438, CNS14336), EN 60950-1 |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
