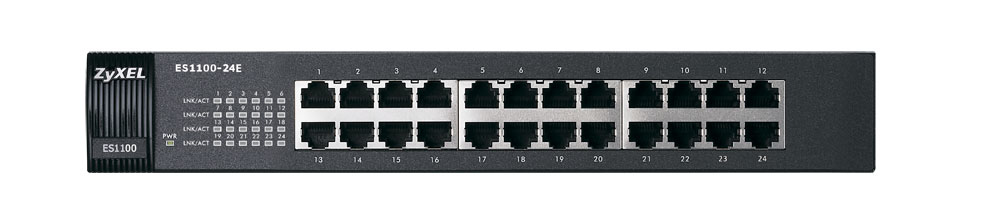

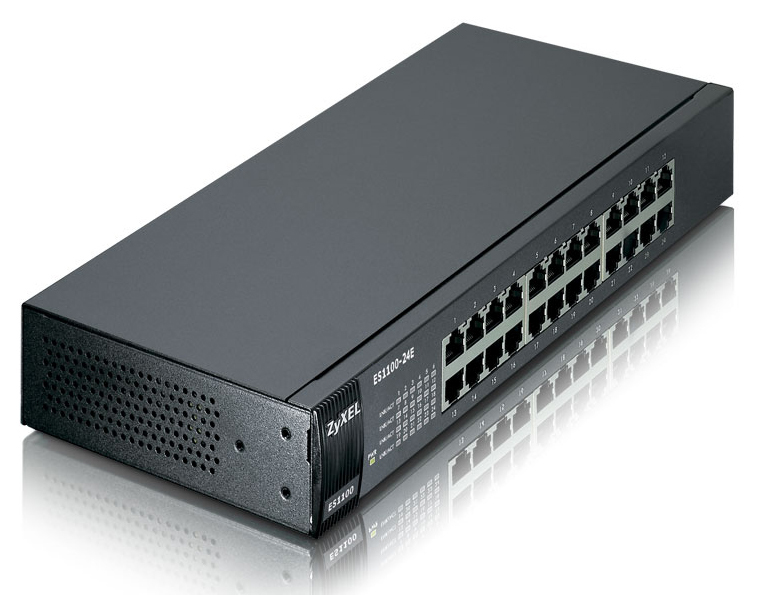

Zyxel ES1100-24E Unmanaged Black

Zyxel ES1100-24E Unmanaged Black

Model ES1100-24EEAN 7605591193792

33 specifications

Speed0.1 Gbit/s
Weight1.28 kg
ColourBlack
Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo

See all specifications

Overview

Speed: 0.1 Gbit/s
Weight: 1.28 kg
Colour: Black
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: No

Brand: Zyxel
Category: Network Switch
Model: ES1100-24E
Part numbers: ES1100-24E, ES1100-24E-EU01F, ES1100-24E-GB01F
EAN / UPC: 7605591193792, 4718937560059, 4718937562251, 760559119379
Also known as: Zyxel ES1100-24E Unmanaged Black

Specifications

33 specifications in 12 groups

Management features

Specification	Value
Switch type	Unmanaged

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes

Data transmission

Specification	Value
MAC address table	8000 entries
Supported data transfer rates	10/100 Mbps
Switching capacity	4.8 Gbit/s
Maximum data transfer rate	0.1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	0.256 MB

Design

Specification	Value
Stackable	Yes
Product colour	Black
LED indicators	Yes
Safety	EN 60950-1, IEC 60950-1, RoHS

Power

Specification	Value
Input voltage	100 - 240 V

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Other features

Specification	Value
Dimensions (WxDxH)	267 x 162 x 42 mm
Input frequency	50/60 Hz
Networking features	Fast Ethernet
Dimensions (W x D x H) (imperial)	267 x 162.1 x 41.9 mm (10.5 x 6.38 x 1.65")
Weight (imperial)	1.28 kg (2.82 lbs)

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	32 - 122 °F

Weight & dimensions

Specification	Value
Weight	1.28 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	325 x 227 x 71 mm
Package weight	2.1 kg

Certificates

Specification	Value
Certification	FCC 15, CE EMC
