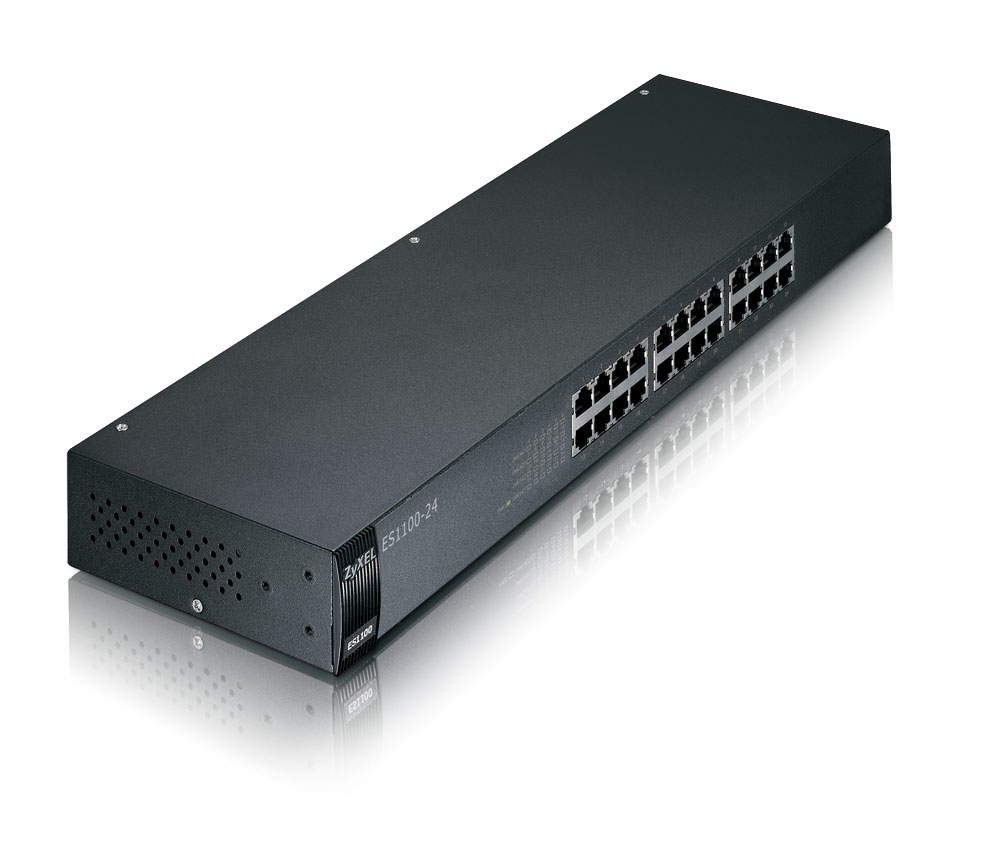

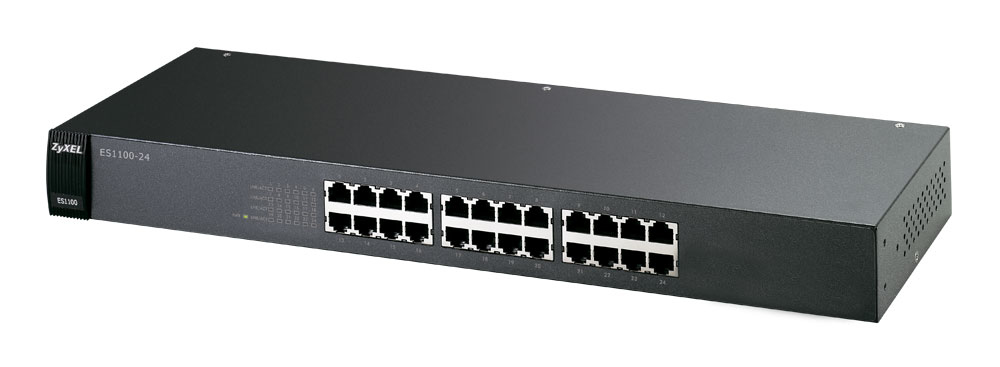

Zyxel ES1100-24 Unmanaged Black
Model ES1100-24EAN 7605591193624
32 specifications
- Speed0.1 Gbit/s
- Weight1.35 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 1.35 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Zyxel
- Category
- Network Switch
- Model
- ES1100-24
- Part numbers
- ES1100-24, ES1100-24-EU01F, ES1100-24-GB01F
- EAN / UPC
- 7605591193624, 4718937560042, 5711045385674, 4718937562459 +2 more
- Also known as
- Zyxel ES1100-24 Unmanaged Black
Specifications
32 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 4.8 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.256 MB |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Safety | EN 60950-1, IEC 60950-1, RoHS |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 131 x 44 mm |
| Input frequency | 50/60 Hz |
| Dimensions (W x D x H) (imperial) | 440.9 x 131.1 x 43.9 mm (17.4 x 5.16 x 1.73") |
| Weight (imperial) | 1.35 kg (2.98 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 477 x 222 x 71 mm |
| Package weight | 2.14 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part15, CE EMC |
