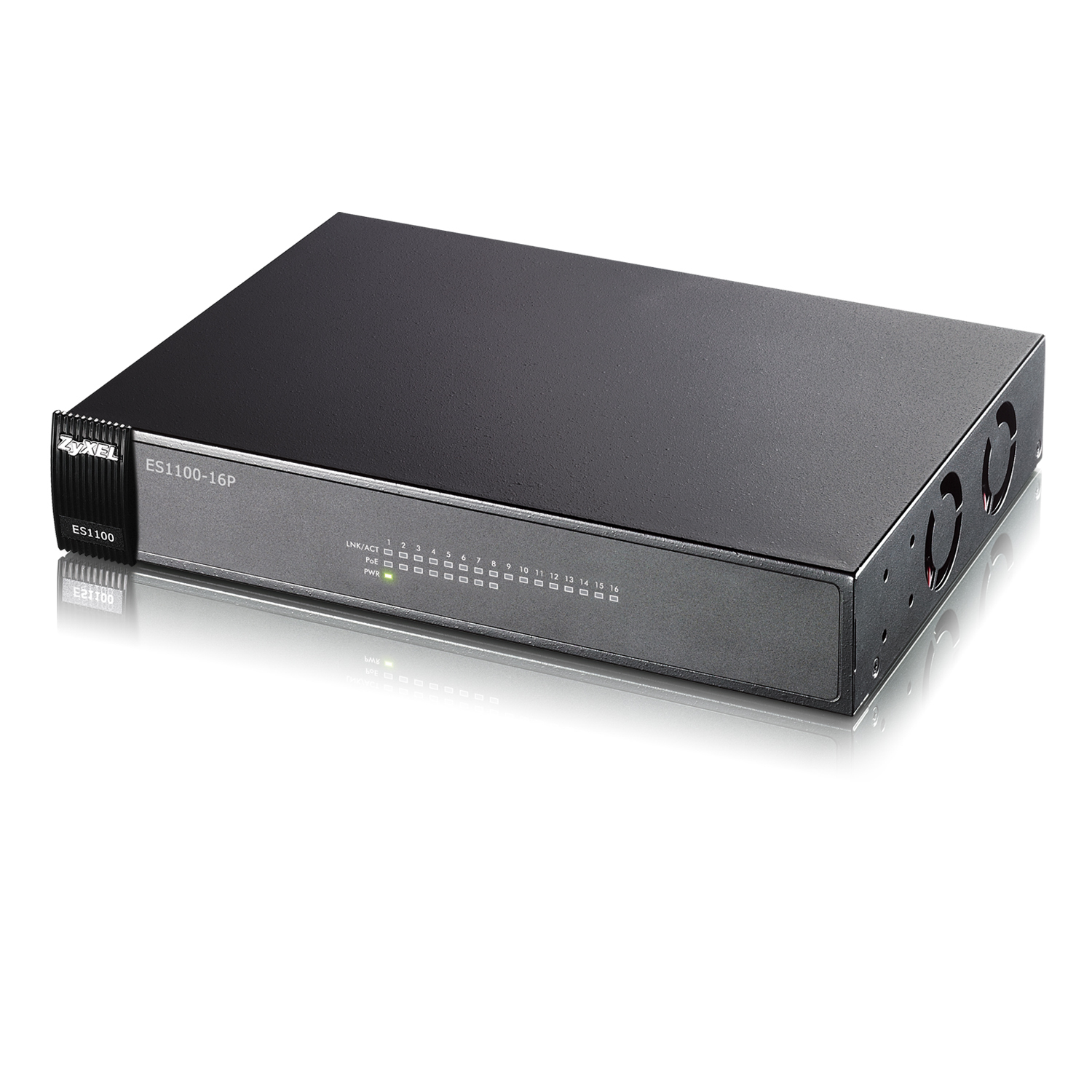

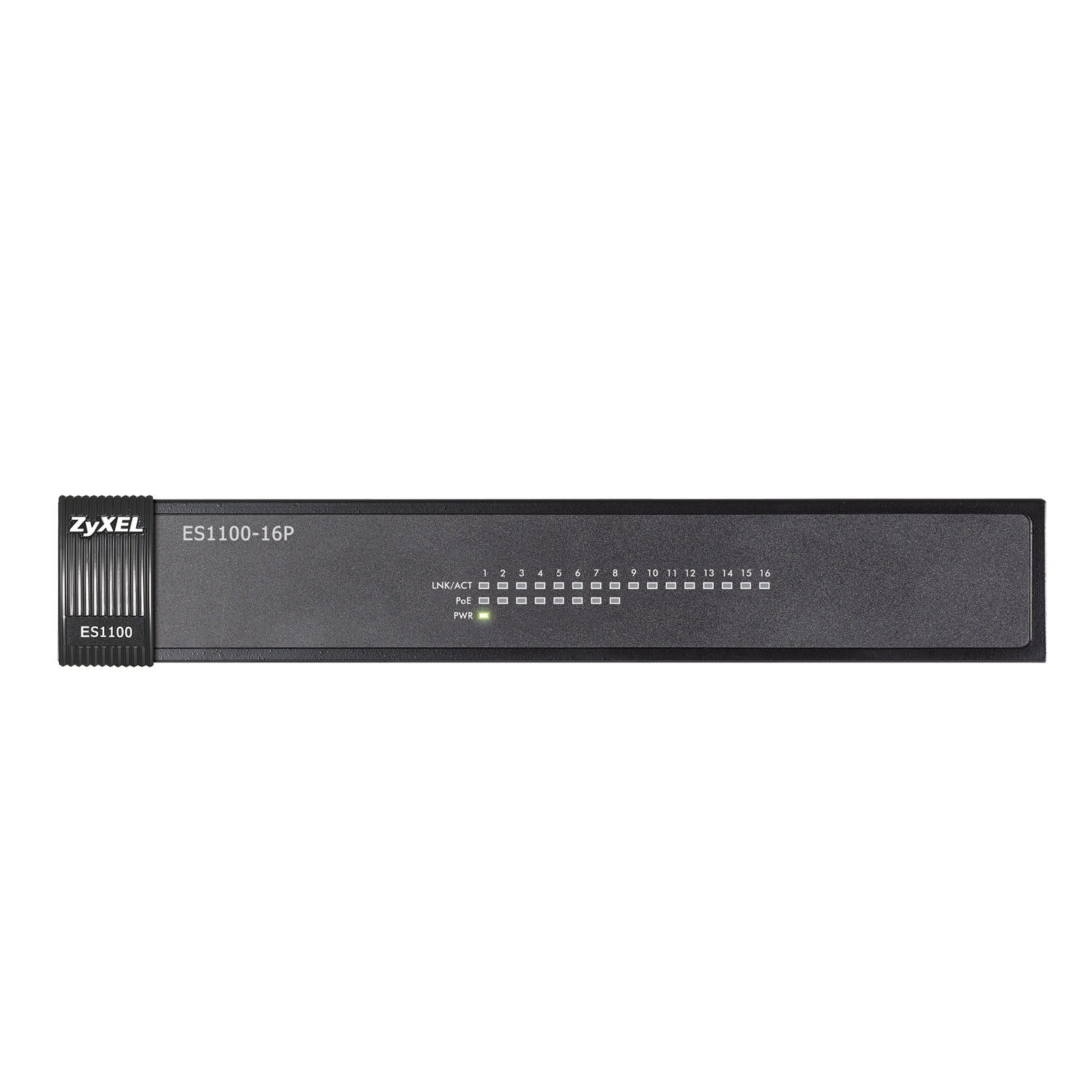

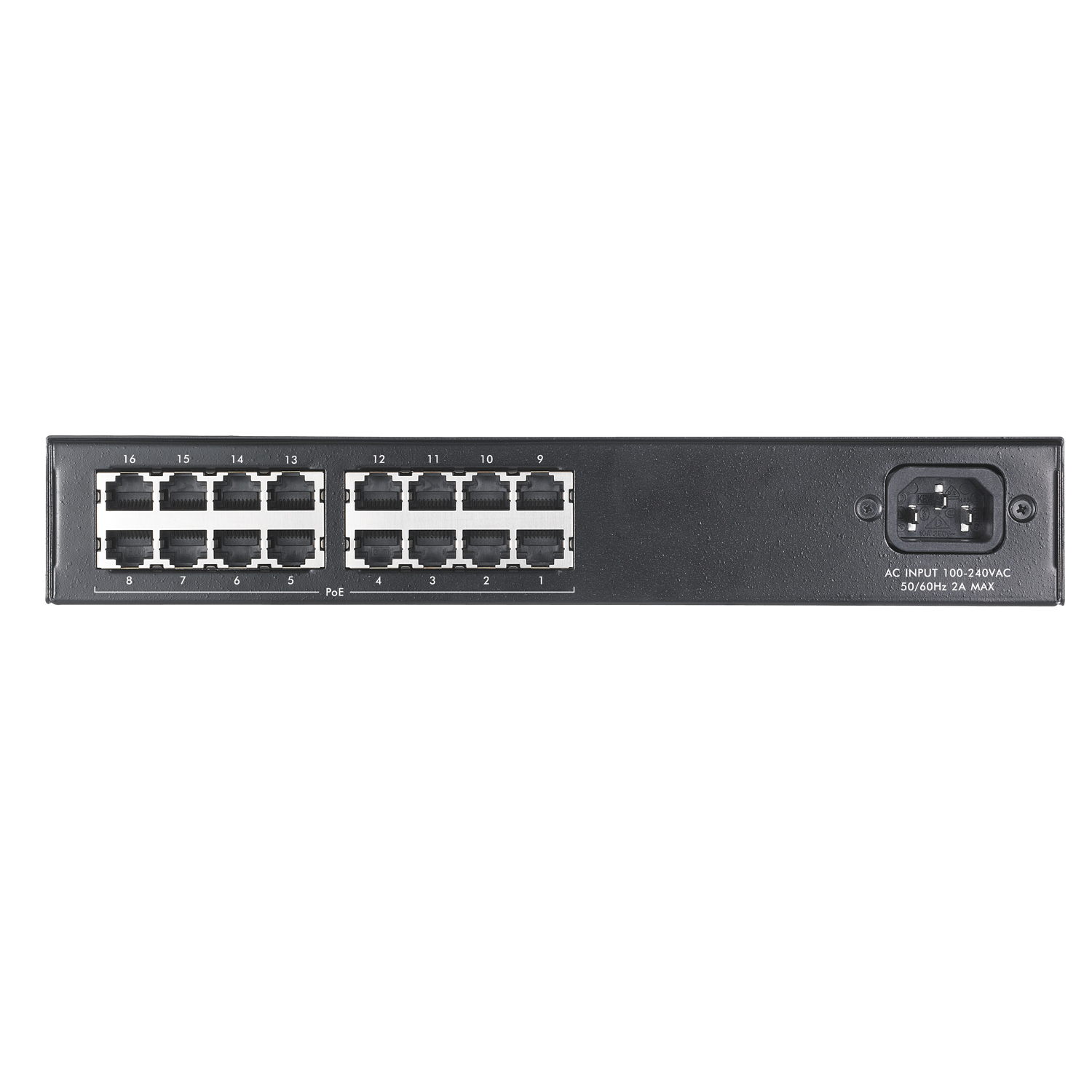

Zyxel ES1100-16P Unmanaged Power over Ethernet (PoE) Black

Zyxel ES1100-16P Unmanaged Power over Ethernet (PoE) Black

Model ES1100-16PPart no. ES1100-16P-GB0102FEAN 4718937567133

35 specifications
  • Speed0.1 Gbit/s
  • ConnectivityWired
  • Weight1.7 kg
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity16
See all specifications

Overview

Speed
0.1 Gbit/s
Connectivity
Wired
Weight
1.7 kg
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
Brand
Zyxel
Model
ES1100-16P
Part numbers
ES1100-16P-GB0102F, ES1100-16P-GB01F, ES1100-16P-EU01F, ES1100-16P, ES1100-16P-EU0102F
EAN / UPC
4718937567133, 4718937562244, 4718937560882, 320127538324 +9 more
Also known as
Zyxel ES1100-16P Unmanaged Power over Ethernet (PoE) Black

Specifications

35 specifications in 12 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology100BASE-T, 10BASE-T
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes

Data transmission

MAC address table8000 entries
Supported data transfer rates10/100 Mbps
Switching capacity3.2 Gbit/s
Maximum data transfer rate0.1 Gbit/s
Jumbo frames supportNo
Packet buffer memory0.160 MB

Design

StackableYes
Product colourBlack
LED indicatorsYes
SafetyEN 60950-1, IEC 60950-1, RoHS

Power

Input voltage100 - 240 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Other features

Dimensions (WxDxH)262 x 184 x 41 mm
Connectivity technologyWired
Input frequency50/60 Hz
Dimensions (W x D x H) (imperial)261.9 x 183.9 x 40.9 mm (10.3 x 7.24 x 1.61")
Power availability130 W
Weight (imperial)1.7 kg (3.75 lbs)

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Operating temperature (T-T)32 - 122 °F

Weight & dimensions

Weight1.7 kg

Packaging data

Package dimensions (WxDxH)318 x 275 x 73 mm
Package weight2.5 kg

Certificates

CertificationFCC Part15 (Class A), CE EMC (Class A)
